downstream switch. The value of the accumulated root path cost increases as the BPDU
spreads further.
BPDU
BPDU is a kind of packet that is used to generate and maintain the spanning tree. The
BPDUs (Bridge Protocol Data Unit) contain a lot of information, like bridge ID, root path cost,
port priority and so on. Switches share these information to help determine the spanning
tree topology.
1.2.2 MSTP Concepts
MSTP, compatible with STP and RSTP, has the same basic elements used in STP and RSTP.
Based on the networking topology, this section will introduce some concepts only used in
MSTP.

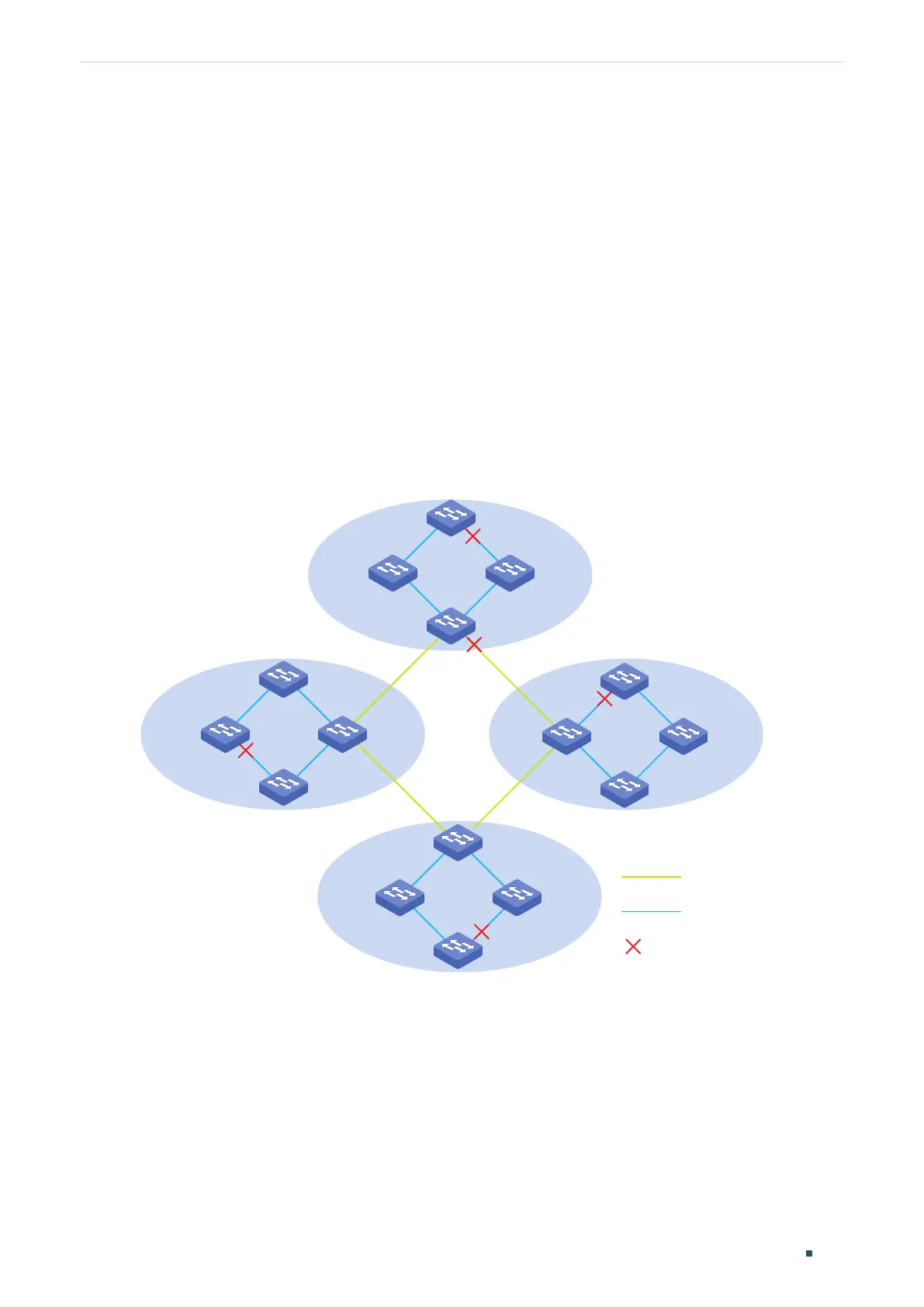

Figure 1-3 MSTP Topology
region 1
region 3
region 4
CST
IST
Blocked Port
region 2
MST Region
An MST region consists of multiple interconnected switches. The switches with the same
following characteristics are considered as in the same region:
■ Same region name
■ Same revision level
■ Same VLAN-Instance mapping

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
