Configuring 802.1Q VLAN 802.1Q VLAN Configuration

Untagged port The selected ports will forward untagged packets in the target VLAN.

Tagged port The selected ports will forward tagged packets in the target VLAN.

3) Click Apply.

2.1.2 Configuring the Port Parameters for 802.1Q VLAN

Choose the menu L2 FEATURES > VLAN > 802.1Q VLAN > Port Config to load the

following page.

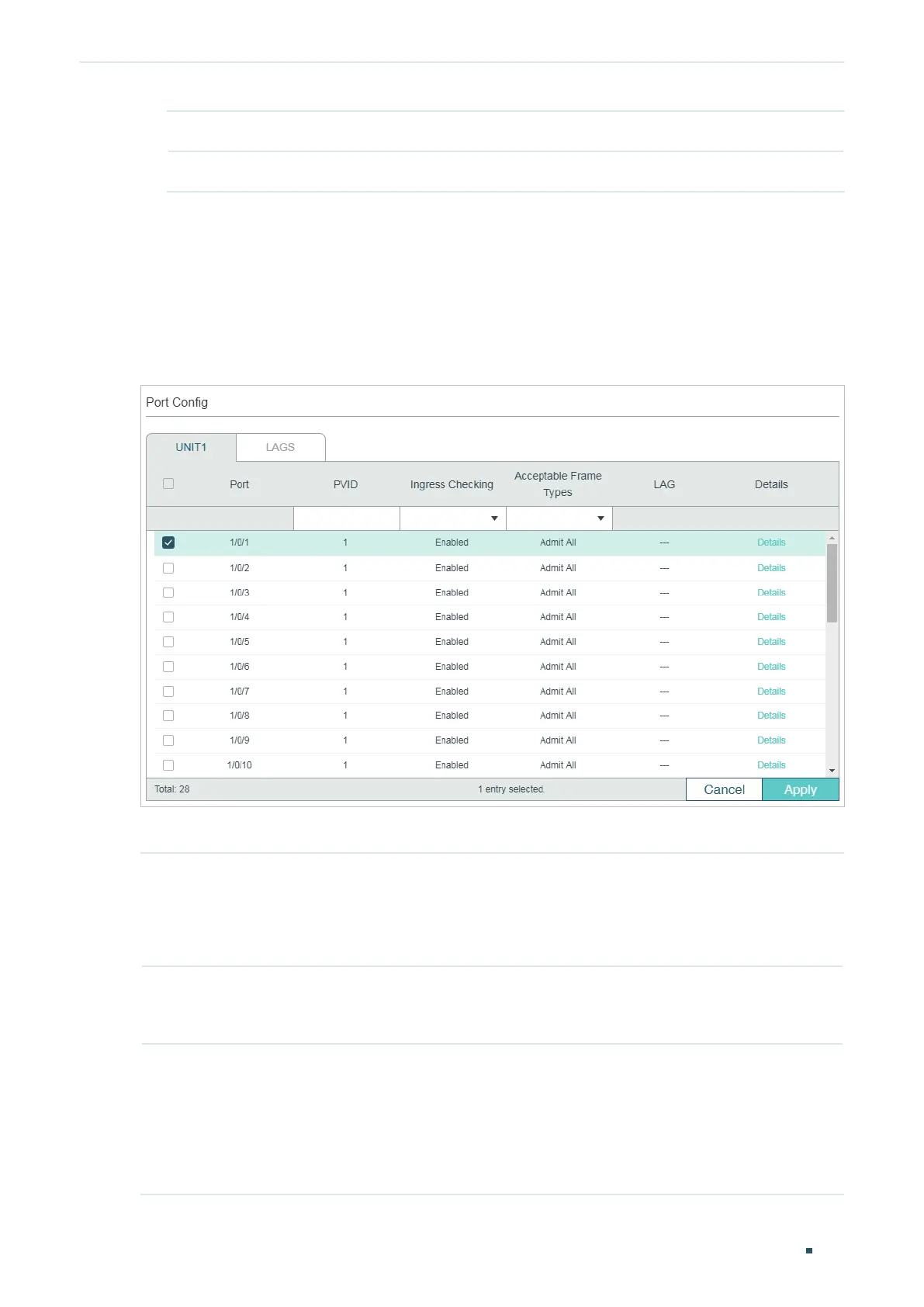

Figure 2-1 Configuring the Port

Select a port and configure the parameters. Click Apply.

PVID Set the default VLAN ID of the port. Valid values are from 1 to 4094. It is used

mainly in the following two ways:

When the port receives an untagged packet, the switch inserts a VLAN tag to the

packet based on the PVID.

Ingress Checking Enable or disable Ingress Checking. With this function enabled, the port will

accept the packet of which the VLAN ID is in the port’s VLAN list and discard

others. With this function disabled, the port will forward the packet directly.

Acceptable Frame

Types

Select the acceptable frame type for the port and the port will perform this

operation before Ingress Checking.

Admit All: The port will accept both the tagged packets and the untagged

packets.

Tagged Only: The port will accept the tagged packets only.
