TP-Link T2600G Series User Manual

Managing MAC Address Table Example for Security Configurations
User Guide
163
4.3 Using the GUI
1) Choose the menu L2 FEATURES > Switching > MAC Address > MAC VLAN Security
and click Add to load the following page. Set the maximum number of MAC address in
VLAN 10 as 100, choose drop mode and click Create.

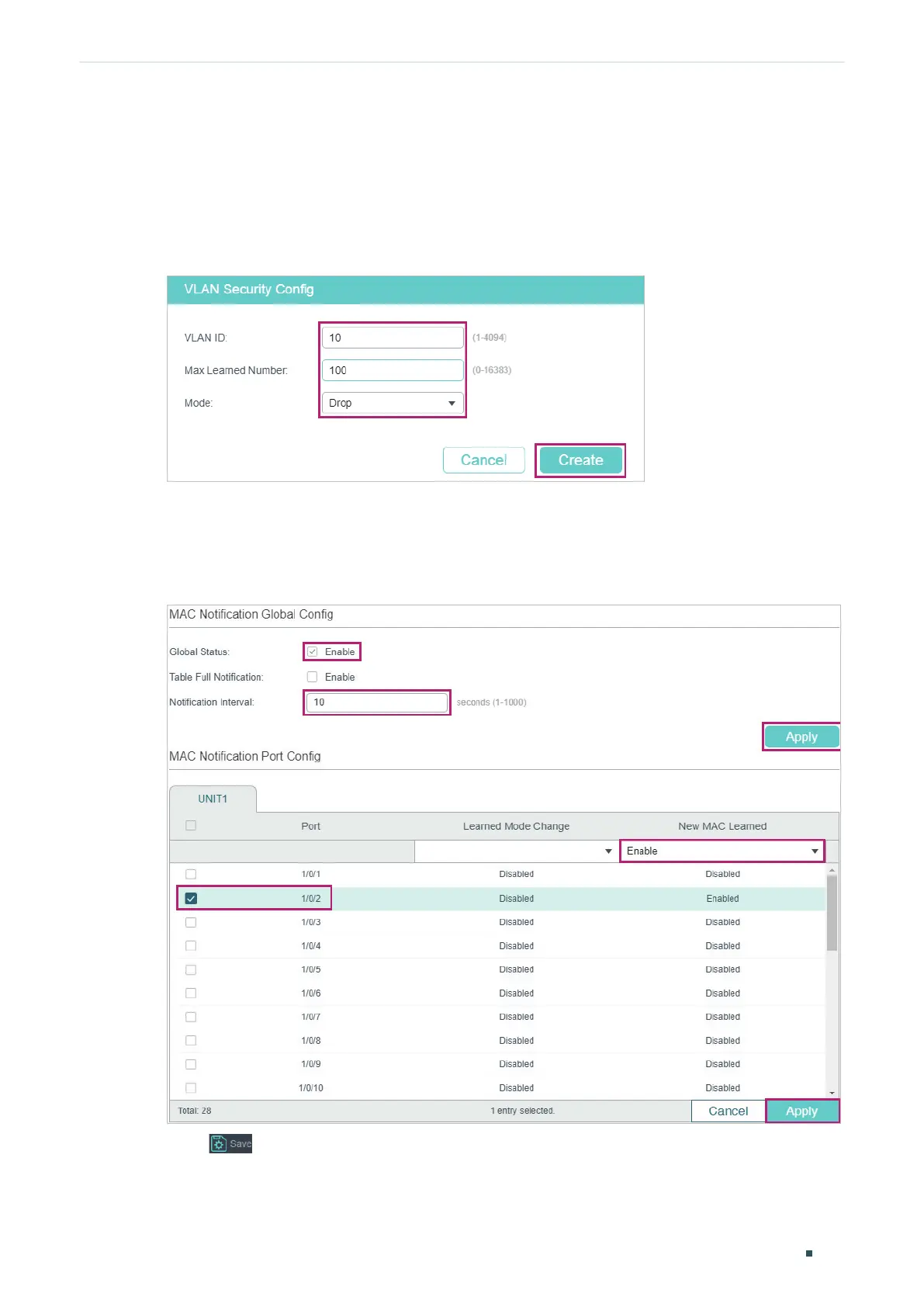

Figure 4-2 Configuring VLAN Security
2) Choose the menu L2 FEATURES > Switching > MAC Address > MAC Notification to
load the following page. Enable Global Status, set notification interval as 10 seconds,
and click Apply. Then, enable new-mac-learned trap on port 1/0/2 and click Apply.
Figure 4-3 Configuring New-MAC-learned Traps
3) Click to save the settings.
4) Enable SNMP and set a management host. For detailed SNMP configurations, please
refer to Configuring SNMP & RMON.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
