TP-Link T2600G Series User Manual

User Guide 564
Configuring DHCP Service DHCP L2 Relay Configuration
4
DHCP L2 Relay Configuration
To complete DHCP L2 Relay configuration, follow these steps:
1) Enable DHCP L2 Relay.
2) Configure Option 82 for ports.
4.1 Using the GUI
4.1.1 Enabling DHCP L2 Relay
Choose the menu L3 FEATURES > DHCP Service > DHCP L2 Relay > Global Config to
load the following page.

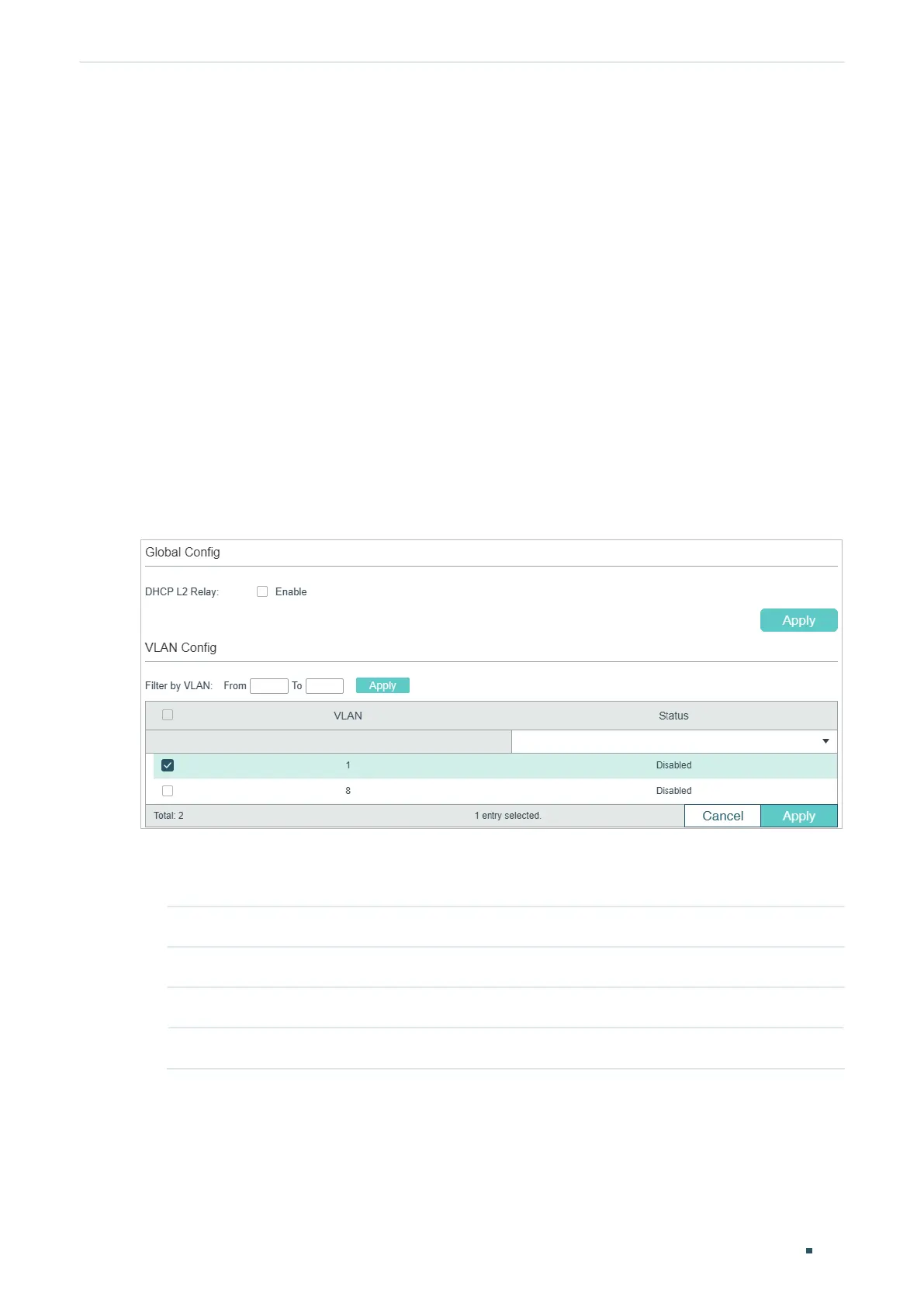

Figure 4-1 Enable DHCP L2 Relay
Follow these steps to enable DHCP L2 Relay globally for the specified VLAN:
1) In the Global Config section, enable DHCP L2 Relay globally. Click Apply.
DHCP L2 Relay Enable DHCP Relay globally.
2) In the VLAN Config section, enable DHCP L2 Relay for the specified VLAN. Click Apply.
VLAN Displays the VLAN ID.
Status Enable DHCP L2 Relay for the specified VLAN.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
