Configuring ACL ACL Configuration

User Guide

795

Configuring the IPv6 ACL Rule

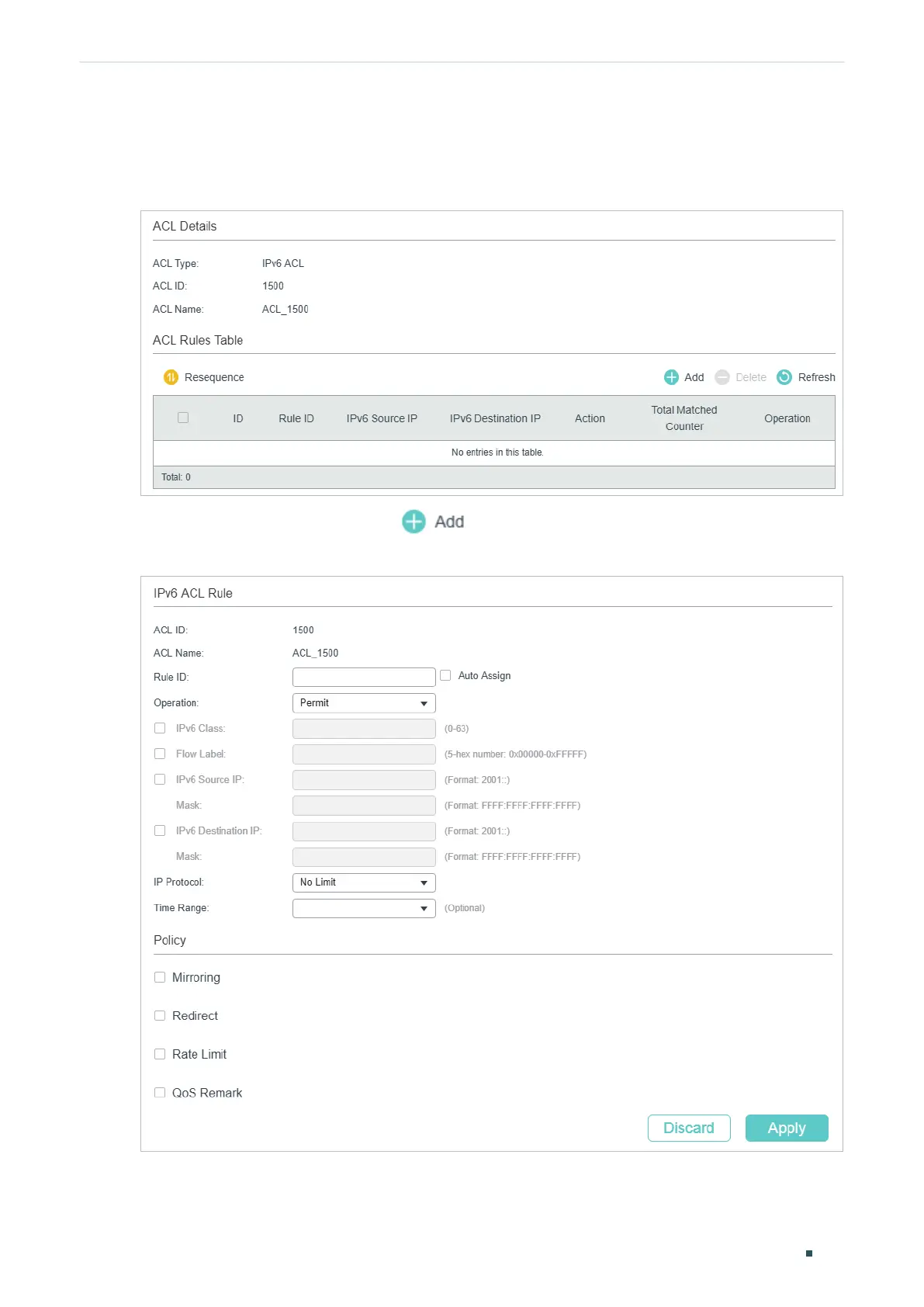

Click Edit ACL for an IPv6 ACL entry to load the following page.

Figure 2-21 Configuring the IPv6 ACL Rule

In ACL Rules Table section, click and the following page will appear.

Figure 2-22 Configuring the IPv6 ACL Rule
