TP-Link T2600G Series User Manual

User Guide 654
Configuring QoS Voice VLAN Configuration

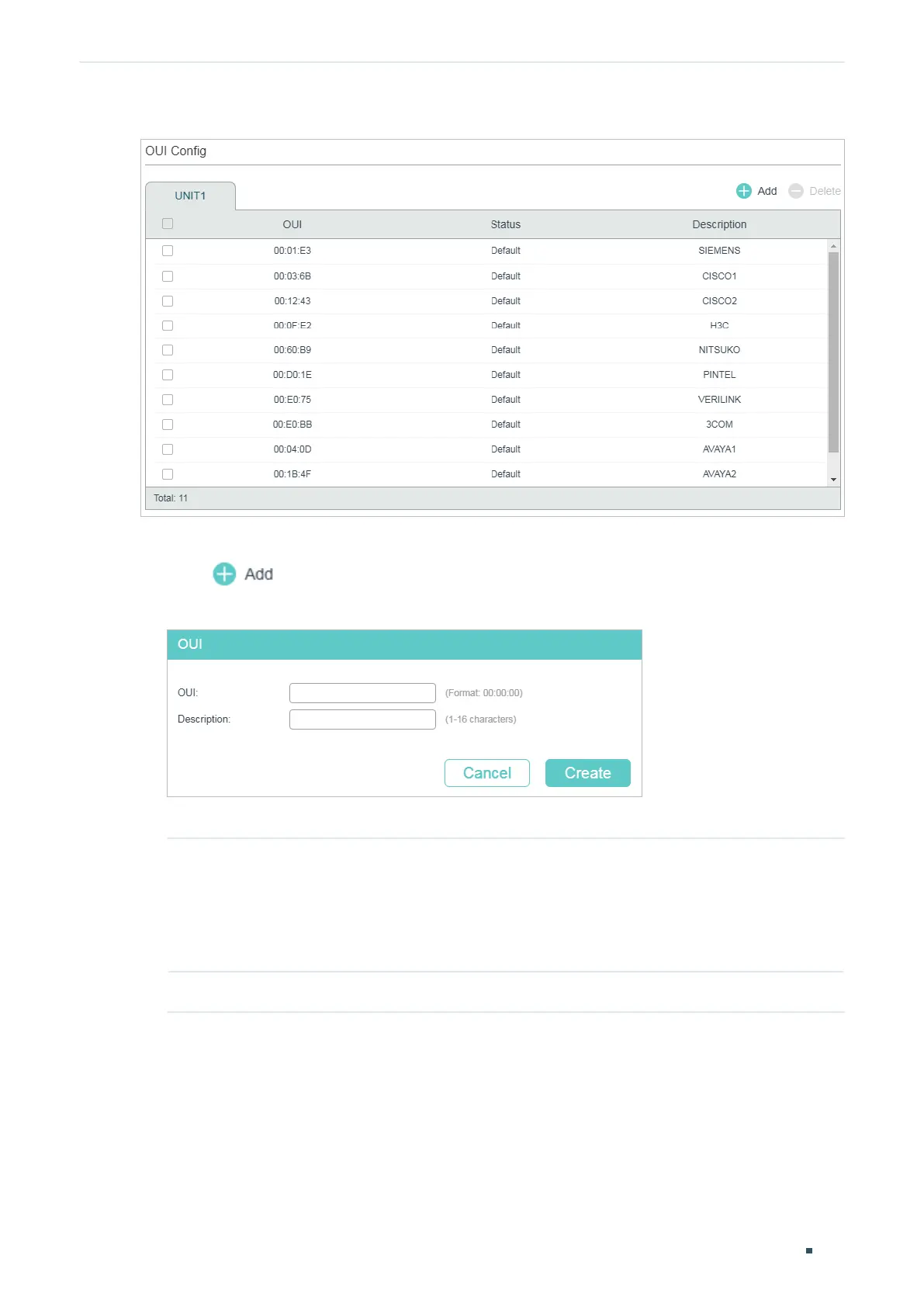

Figure 4-1 Configuring OUI Addresses
Follow these steps to configure the OUI addresses:
1) Click
to load the following page.
Figure 4-2 Creating an OUI Entry
2) Specify the OUI and the Description.
OUI Enter the OUI address of your voice devices. The OUI address is used by the
switch to determine whether a packet is a voice packet. An OUI address is the
first 24 bits of a MAC address, and is assigned as a unique identifier by IEEE
(Institute of Electrical and Electronics Engineers) to a device vendor. If the source
MAC address of a packet matches the OUI addresses in the OUI list, the switch
identifies the packet as a voice packet and prioritizes it in transmission.
Description Give an OUI address description for identification.
3) Click Create.
4.1.1 Configuring Voice VLAN Globally
Choose the menu QoS > Voice VLAN > Global Config to load the following page.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
