TP-Link T2600G Series User Manual

Configuring Layer 2 Multicast Configuration Examples
User Guide
361

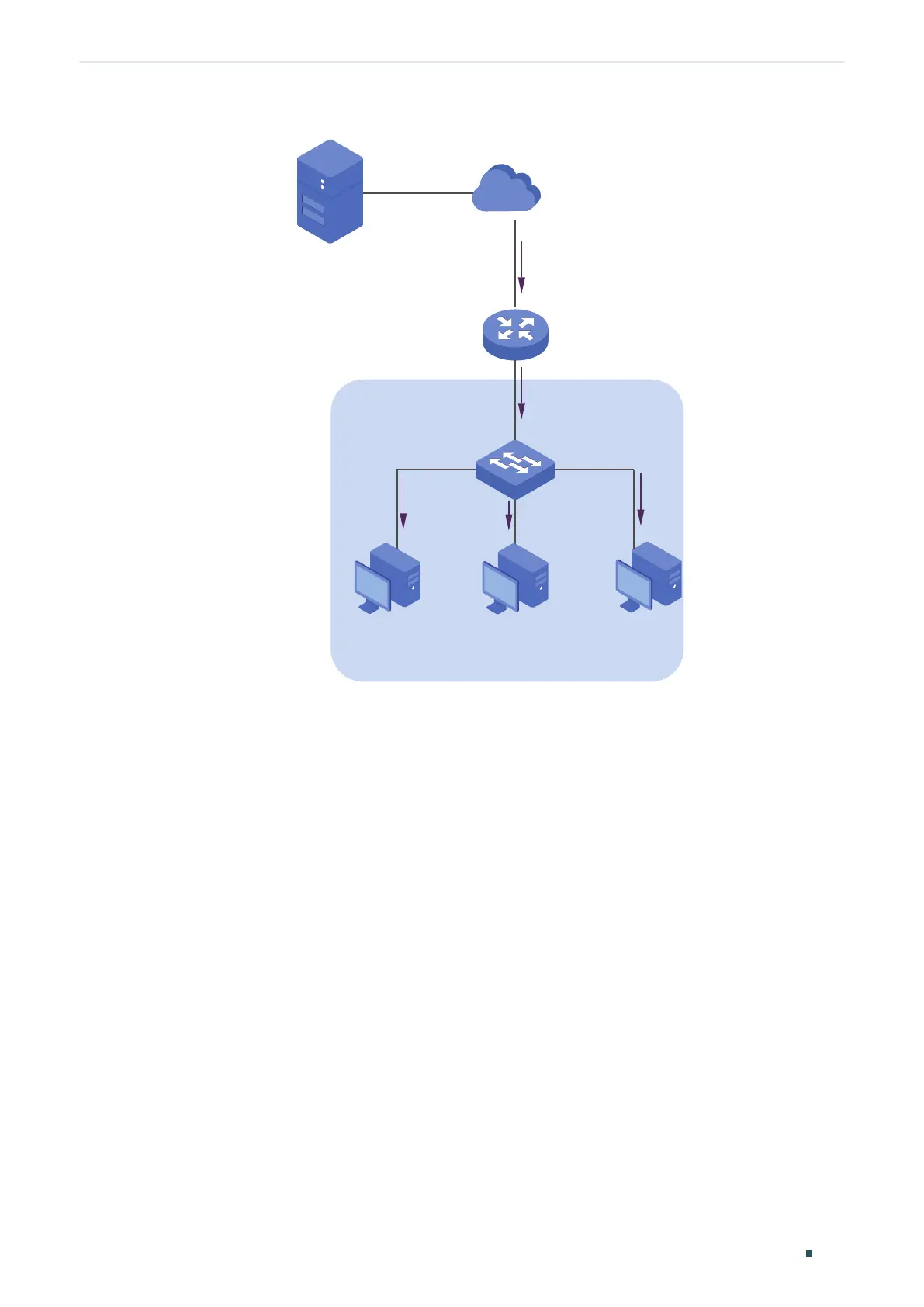

Figure 7-7 Network Topoloy for Multicast VLAN
Internet
Host B
Receiver
Host C
Receiver
Host D
Receiver
VLAN 40
Querier
Source
Gi1/0/4
Gi1/0/2
Gi1/0/3
Gi1/0/1
7.2.3 Configuration Scheme
As the hosts are in different VLANs, in IGMP Snooping, the Querier need to duplicate
multicast streams for hosts in each VLAN. To avoid duplication of multicast streams being
sent between Querier and the switch, you can configure MVR on the switch.
The switch can work in either MVR compatible mode or MVR dynamic mode. When in
compatible mode, remember to statically configure the Querier to transmit the streams
of multicast group 225.1.1.1 to the switch via the multicast VLAN. Here we take the MVR
dynamic mode as an example.
Demonstrated with T2600G-28TS, this section provides configuration procedures in two
ways: using the GUI and using the CLI.
7.2.4 Using the GUI
1) Add port 1/0/1-3 to VLAN 10, VLAN 20 and VLAN 30 as Untagged ports respectively,
and configure the PVID of port 1/0/1 as 10, port 1/0/2 as 20, port 1/0/3 as 30. Make sure
port1/0/1-3 only belong to VLAN 10, VLAN 20 and VLAN 30 respectively. For details,
refer to Configuring 802.1Q VLAN.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
