TP-Link T2600G Series User Manual

User Guide 750
Configuring 802.1x 802.1x Configuration
2
802.1x Configuration
To complete the 802.1x configuration, follow these steps:
1) Configure the RADIUS server.
2) Configure 802.1x globally.
3) Configure 802.1x on ports.
In addition, you can view the authenticator state.
Configuration Guidelines
802.1x authentication and Port Security cannot be enabled at the same time. Before
enabling 802.1x authentication, make sure that Port Security is disabled.
2.1 Using the GUI
2.1.1 Configuring the RADIUS Server
Configure the parameters of RADIUS sever and configure the RADIUS server group.
■ Adding the RADIUS Server
Choose the menu SECURITY > AAA > RADIUS Config and click
to load the
following page.

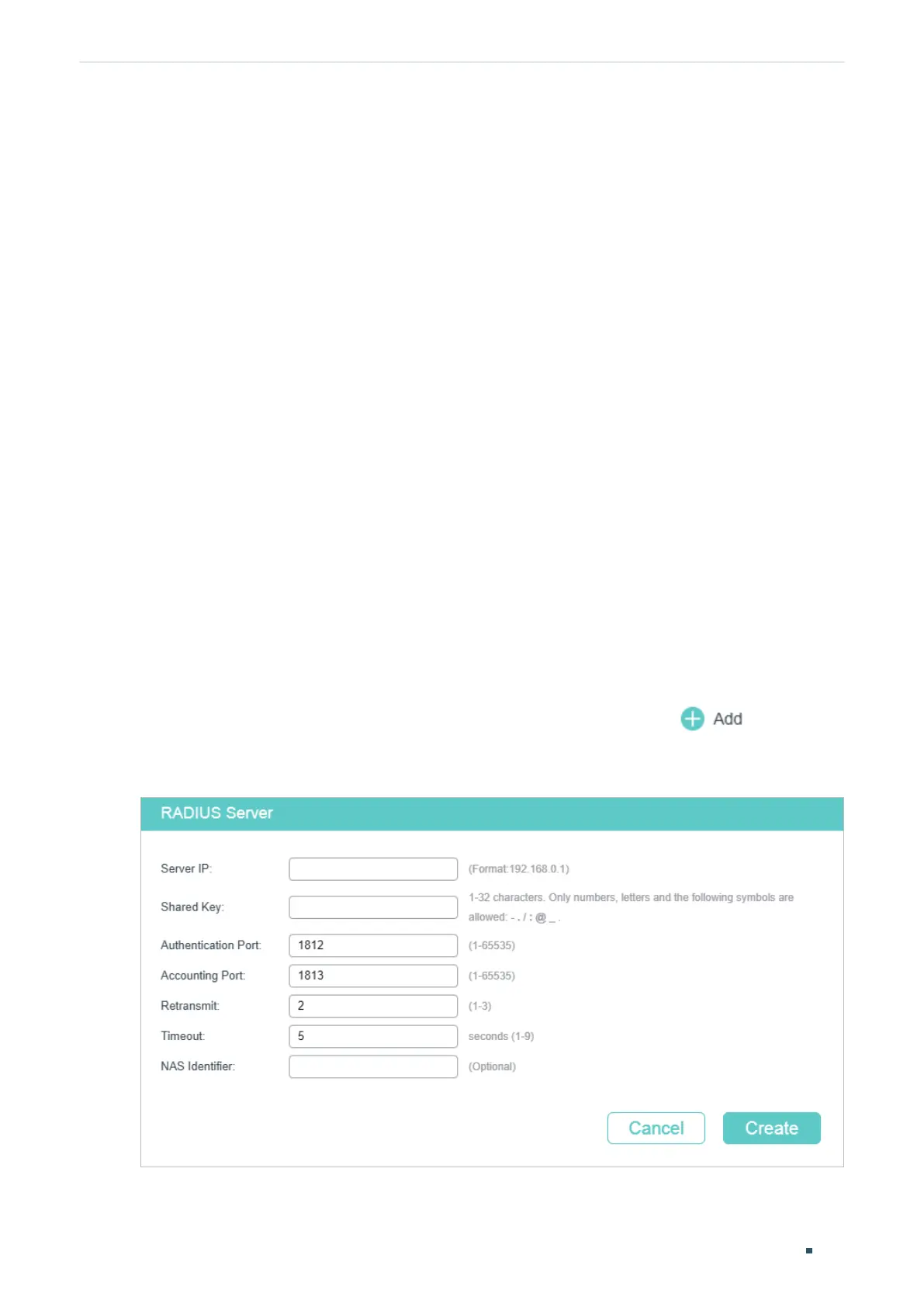

Figure 2-1 Adding RADIUS Server
Follow these steps to add a RADIUS server:

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
