TP-Link T2600G Series User Manual

Configuring MAC VLAN MAC VLAN Configuration
User Guide
185
2
MAC VLAN Configuration
To complete MAC VLAN configuration, follow these steps:
1) Configure 802.1Q VLAN.
2) Bind the MAC address to the VLAN.
3) Enable MAC VLAN for the port.
Configuration Guidelines
When a port in a MAC VLAN receives an untagged data packet, the switch will first check
whether the source MAC address of the data packet has been bound to the MAC VLAN.
If yes, the switch will insert the corresponding tag to the data packet and forward it within
the VLAN. If no, the switch will continue to match the data packet with the matching rules
of other VLANs (such as the protocol VLAN). If there is a match, the switch will forward
the data packet. Otherwise, the switch will process the data packet according to the
processing rule of the 802.1 Q VLAN. When the port receives a tagged data packet, the
switch will directly process the data packet according to the processing rule of the 802.1 Q
VLAN.
2.1 Using the GUI
2.1.1 Configuring 802.1Q VLAN
Before configuring MAC VLAN, create an 802.1Q VLAN and set the port type according to
network requirements. For details, refer to Configuring 802.1Q VLAN.
2.1.2 Binding the MAC Address to the VLAN
Choose the menu L2 FEATURES > VLAN > MAC VLAN and click to load the
following page.

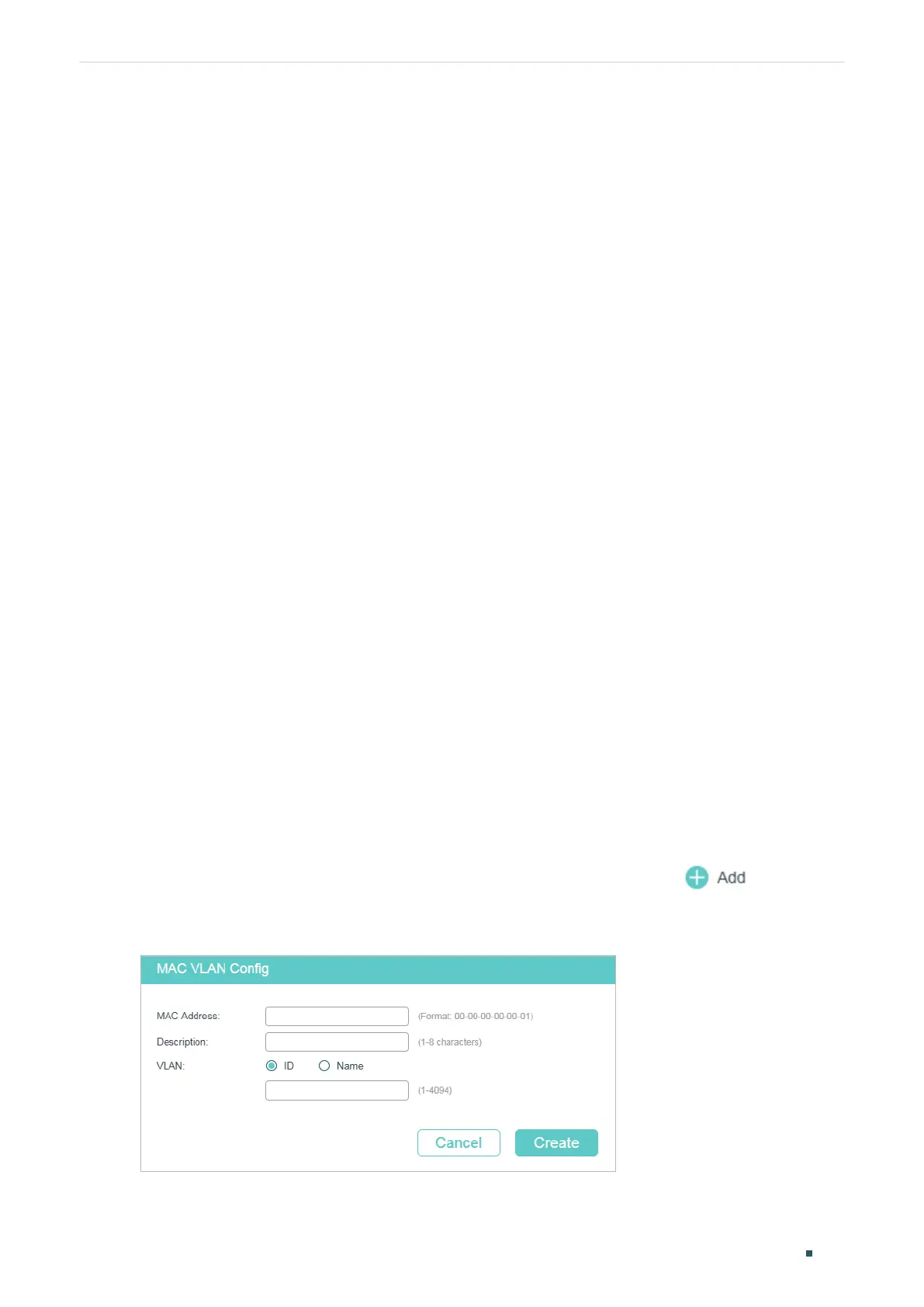

Figure 2-1 Creating MAC VLAN

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
