Configuring 802.1x Configuration Example

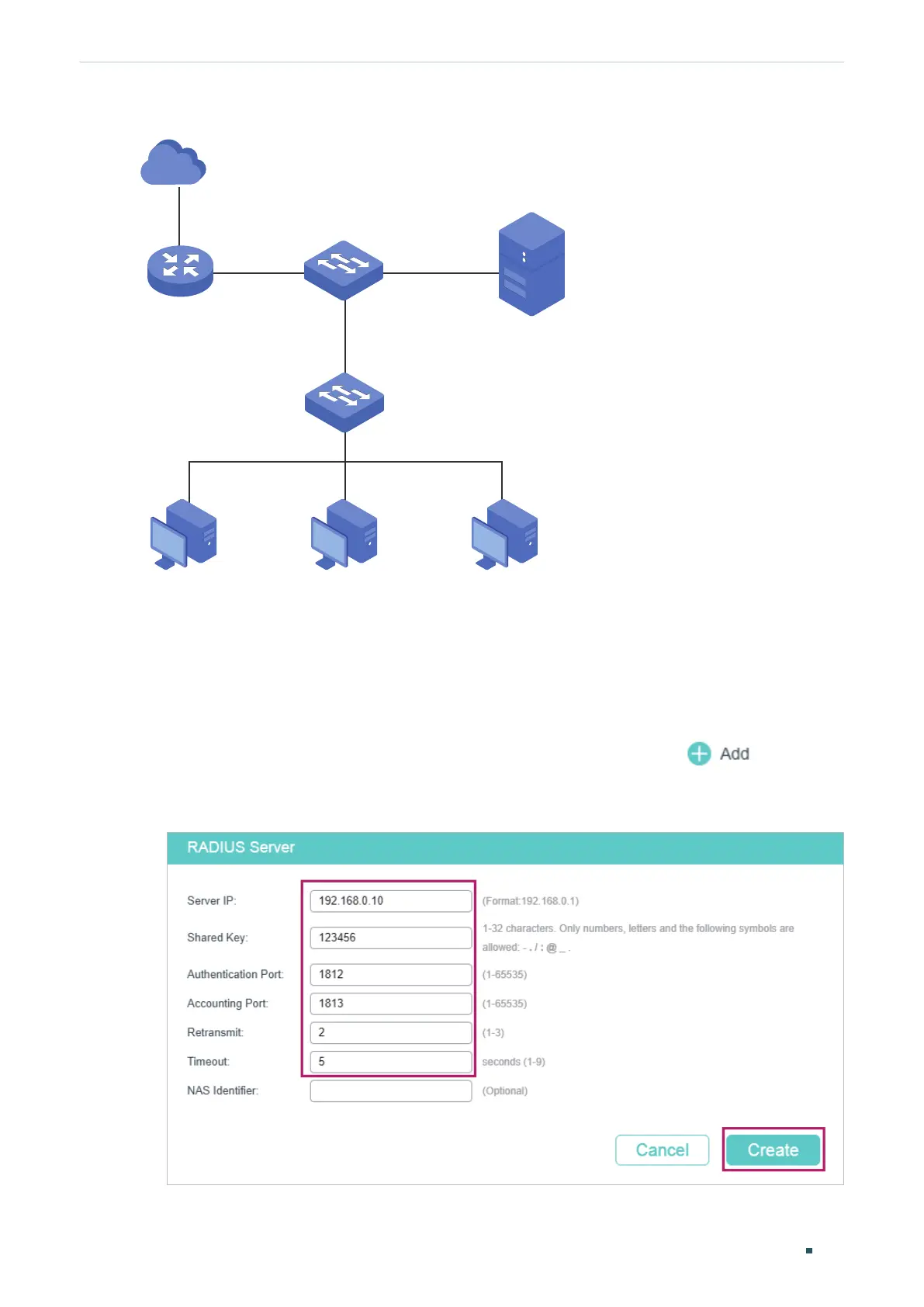

Figure 3-1 Network Topology
Internet
Switch A
Authenticator
Client Client
Gi1/0/1
Gi1/0/2Gi1/0/3
Client
RADIUS Server
192.168.0.10/24
Auth Port:1812
Demonstrated with T2600G-28TS acting as the authenticator, the following sections
provide configuration procedure in two ways: using the GUI and using the CLI.
3.4 Using the GUI
1) Choose the menu SECURITY > AAA > RADIUS Config and click to load the
following page. Configure the parameters of the RADIUS server and click Create.
Figure 3-2 Adding RADIUS Server
