TP-Link T2600G Series User Manual

User Guide 768
Configuring 802.1x Configuration Example

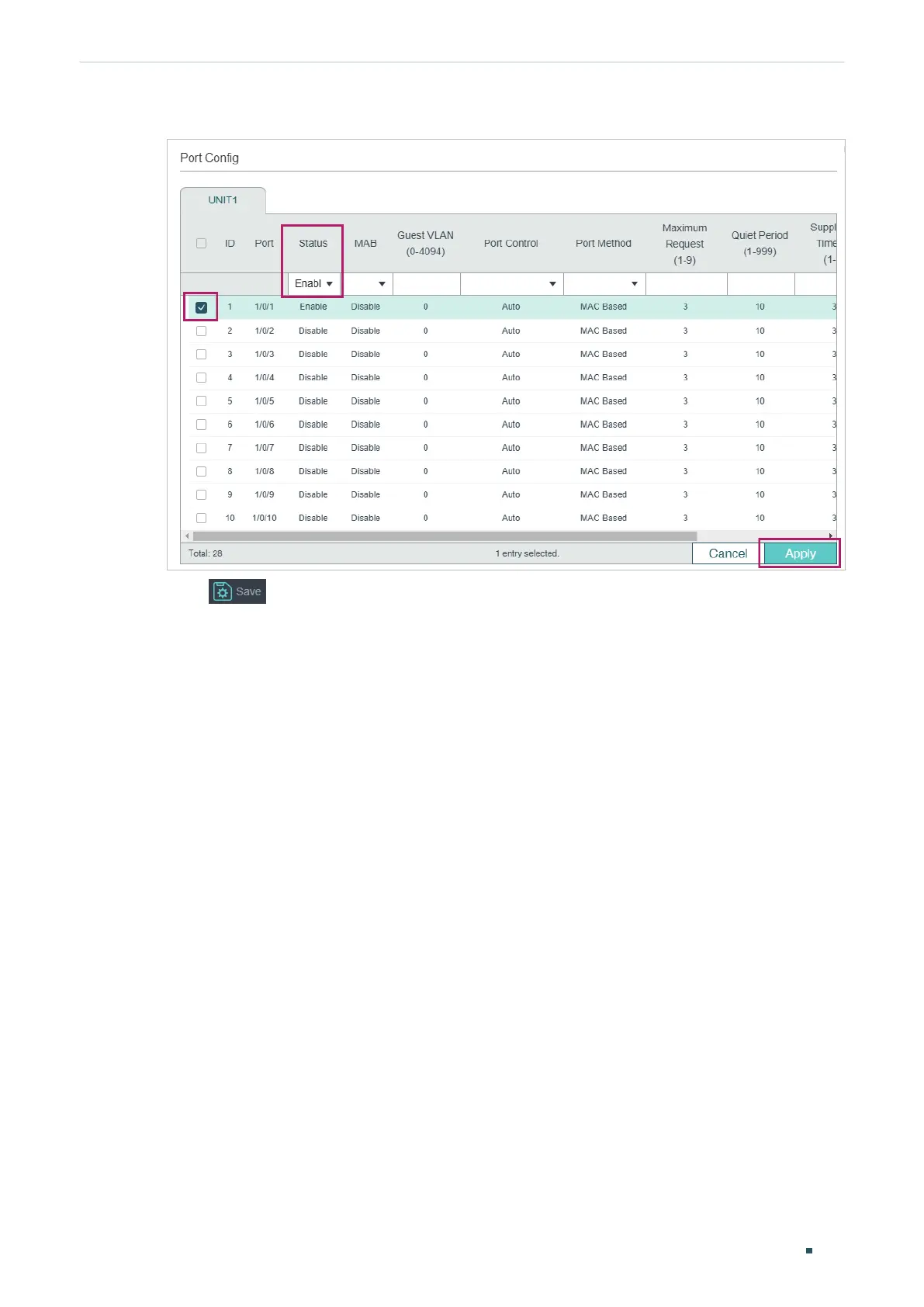

Figure 3-6 Configuring Port
6) Click to save the settings.
3.5 Using the CLI
1) Configure the RADIUS parameters.
Switch_A(config)#radius-server host 192.168.0.10 auth-port 1812 key 123456
Switch_A(config)#aaa group radius RADIUS1
Switch_A(aaa-group)#server 192.168.0.10
Switch_A(aaa-group)#exit
Switch_A(config)#aaa authentication dot1x default RADIUS1
2) Globally enable 802.1x authentication and set the authentication protocol.
Switch_A(config)#dot1x system-auth-control
Switch_A(config)#dot1x auth-protocol eap
3) Disable 802.1x authentication on port 1/0/2 and port 1/0/3. Enable 802.1x
authentication on port 1/0/1, set the control mode as auto, and set the control type as
MAC based.
Switch_A(config)#interface gigabitEthernet 1/0/2
Switch_A(config-if)#no dot1x
Switch_A(config-if)#exit

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
