Configuring QoS Class of Service Configuration
User Guide
623
2.1 Using the GUI
2.1.1 Configuring Port Priority
■ Configuring the Trust Mode and Port to 802.1p Mapping
Choose the menu QoS > Class of Service > Port Priority to load the following page.

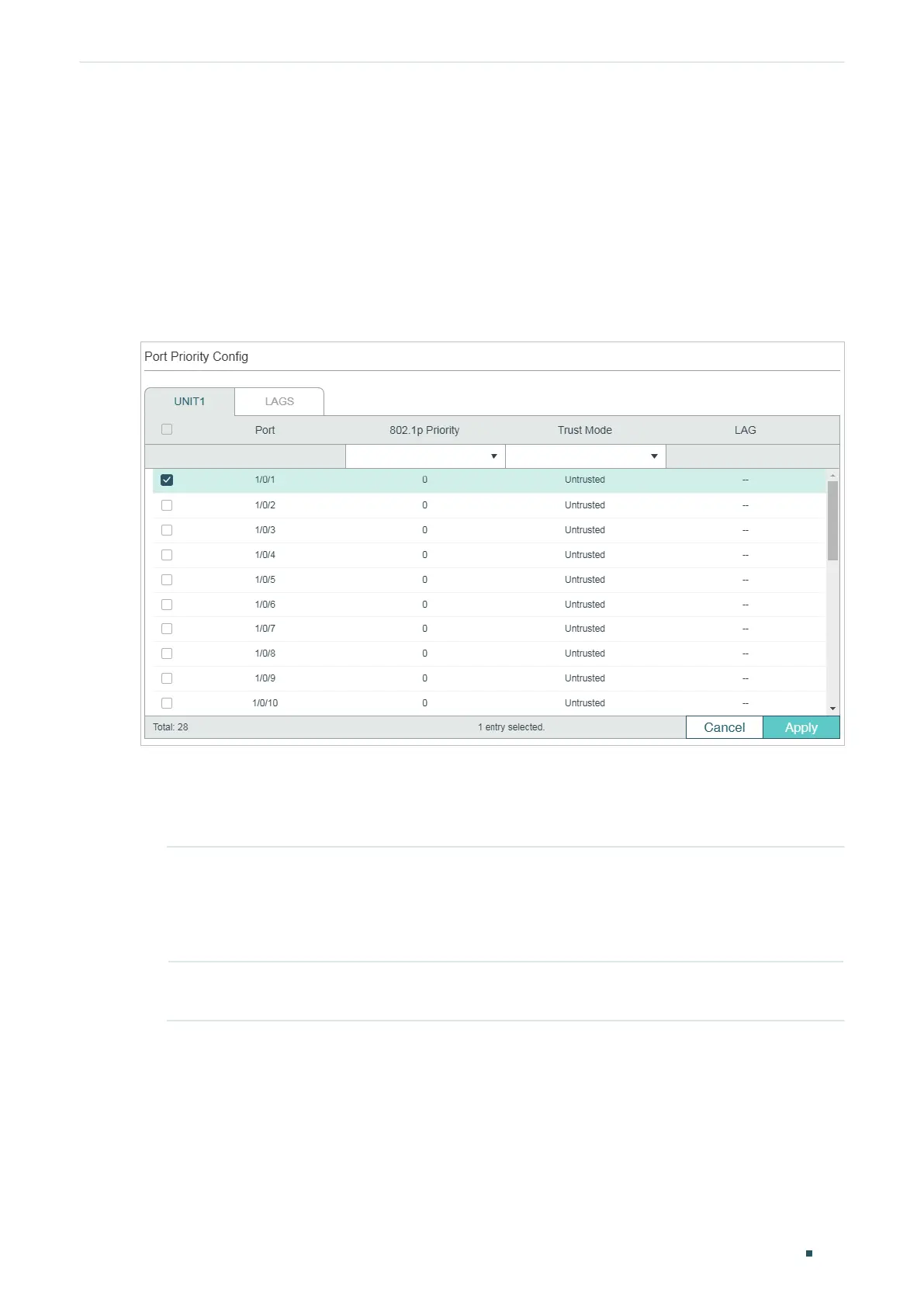

Figure 2-1 Configuring the Trust Mode and Port to 802.1p Mapping
Follow these steps to configure the parameters of the port priority:
1) Select the desired ports, specify the 802.1p priority and set the trust mode as
Untrusted.
802.1p Priority Specify the port to 802.1p mapping for the desired port. The ingress packets from
one port are first mapped to 802.1p priority based on the port to 802.1p mapping,
then to TC queues based on the 802.1p to queue mapping. The untagged packets
from one port will be added an 802.1p priority value according to the port to
802.1p priority mapping.
Trust Mode Select the Trust mode as Untrusted. In this mode, the packets will be processed
according to the port priority configuration.
2) Click Apply.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
