TP-Link T2600G Series User Manual

User Guide 368
Configuring Layer 2 Multicast Configuration Examples

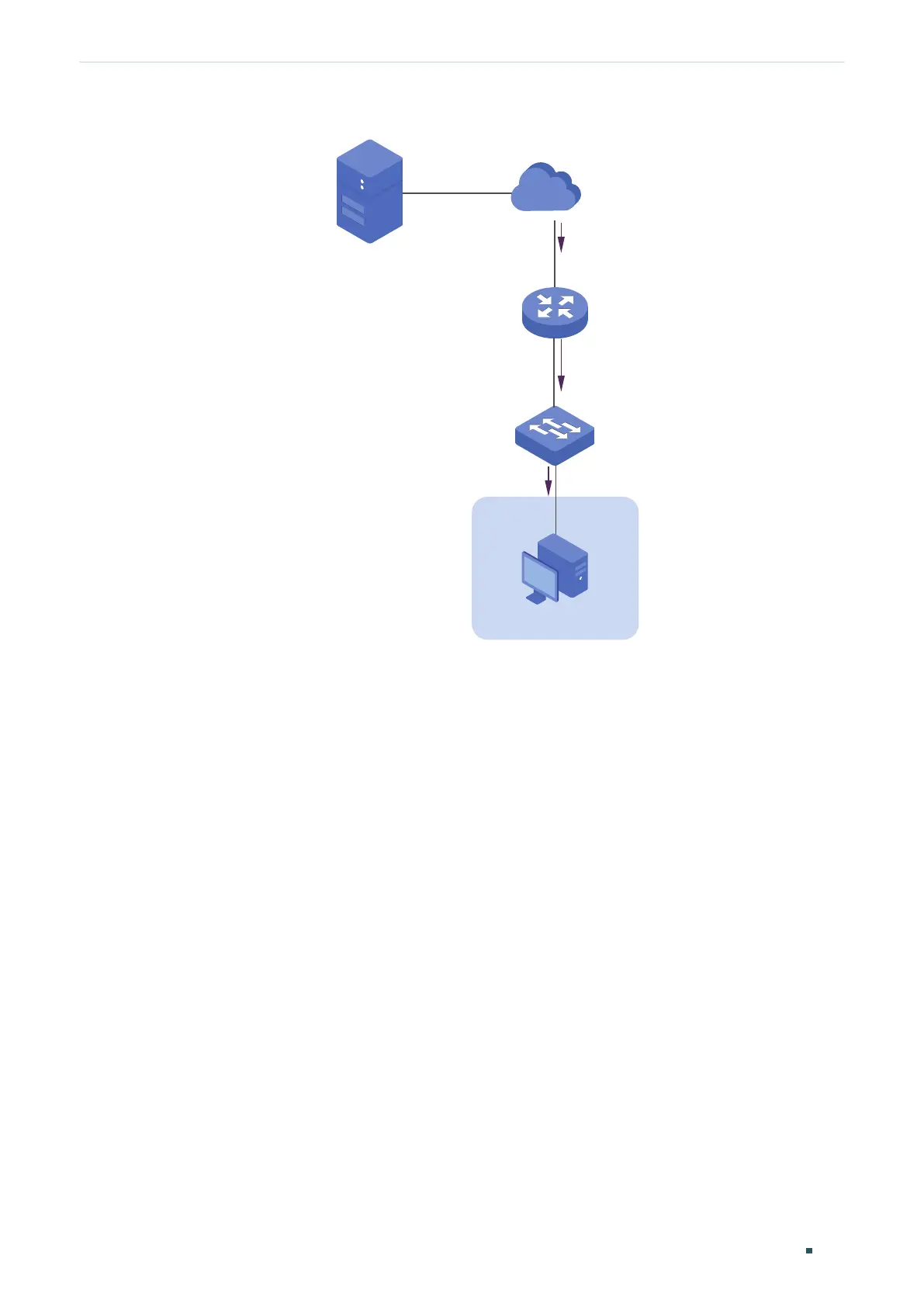

Figure 7-14 Network Topology for Unknow Multicast and Fast Leave
Internet
Host B
Receiver
VLAN 10
Querier
Source
Gi1/0/4
VLAN 10
Gi1/0/2
7.3.2 Configuration Scheme
After the channel is changed, the client (Host B) still receives irrelevant multicast data,
the data from the previous channel and possibly other unknown multicast data, which
increases the network load and results in network congestion.
To avoid Host B from receiving irrelevant multicast data, you can enable Fast Leave on
port 1/0/2 and configure the switch to discard unknown multicast data. To change channel,
Host B sends a leave message about leaving the previous channel. With Fast Leave
enabled on port 1/0/2, the switch will then drop multicast data from the previous channel,
which ensures that Host B only receives multicast data from the new channel and that the
multicast network is unimpeded.
Demonstrated with T2600G-28TS, this section provides configuration procedures in two
ways: using the GUI and using the CLI.
7.3.3 Using the GUI
1) Create VLAN 10. Add port 1/0/2 to the VLAN as untagged port and port 1/0/4 as tagged
port. Configure the PVID of the two ports as 10. For details, refer to Configuring 802.1Q
VLAN.
2) Choose the menu L2 FEATURES > Multicast > IGMP Snooping > Global Config to load
the following page. In the Global Config section, enable IGMP Snooping globally and
configure Unknown Multicast Groups as Discard.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
