Configuring Layer 2 Multicast Configuration Examples
User Guide
369

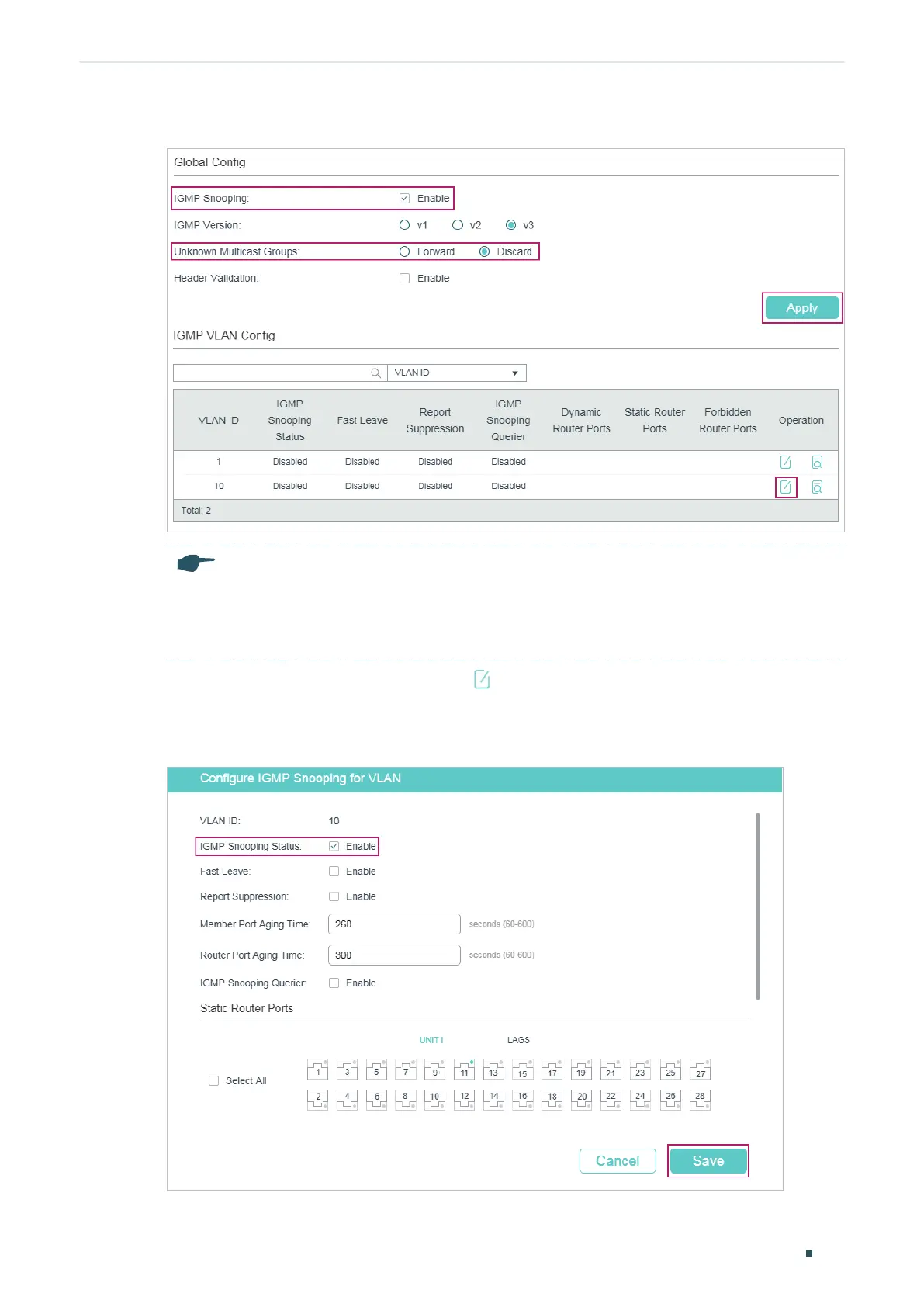

Figure 7-15 Configure IGMP Snooping Globally
Note:
IGMP Snooping and MLD Snooping share the setting of Unknown Multicast, so you have to
enable MLD Snooping globally on the L2 FEATURES
>
Multicast > MLD Snooping > Global
Config page at the same time.
3) In the IGMP VLAN Config section, click in VLAN 10 to load the following page. Enable
IGMP Snooping for VLAN 10.
Figure 7-16 Enable IGMP Snooping for VLAN 10
