TP-Link T2600G Series User Manual

User Guide 818
Configuring ACL Configuration Example for ACL
3
Configuration Example for ACL
3.1 Configuration Example for MAC ACL
3.1.1 Network Requirements
A company forbids the employees in the R&D department to visit the internal forum during
work hours. While the manager of the R&D department can get access to the internal forum
without limitation.
As shown below, the internal forum server is connected to the switch via port 1/0/1, and
computers in the R&D department are connected to the switch via port 1/0/2.

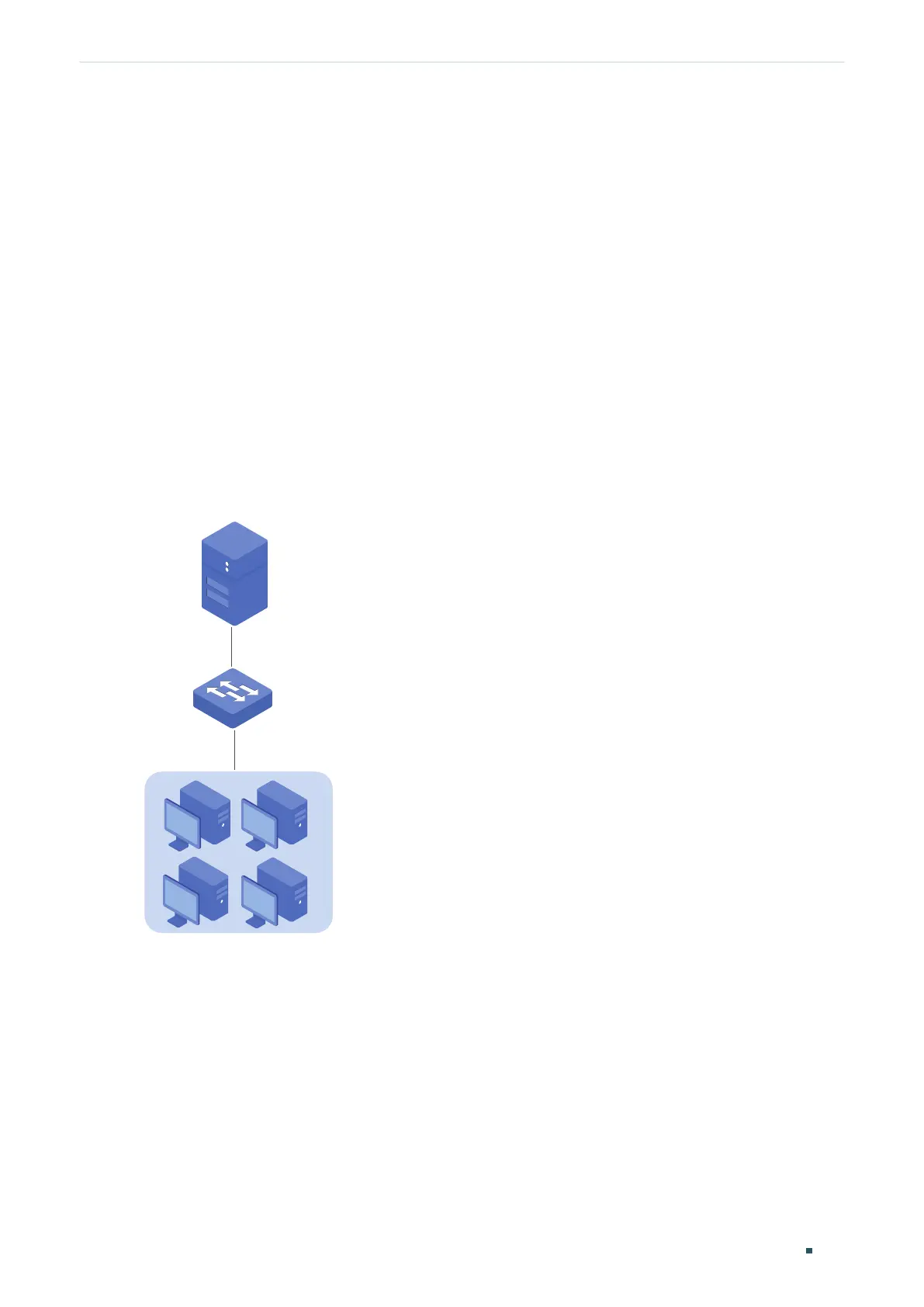

Figure 3-1 Network Topology
Gi1/0/1
R&D manager's PC
MAC: 8C-DC-D4-40-A1-79
R&D Department
Internal Forum Server
MAC: 40-61-86-FC-71-56
Gi1/0/2
3.1.2 Configuration Scheme
To meet the requirements above, you can set up packet filtering by creating an MAC ACL
and configuring rules for it.
■ Time Range Configuration
Create a time range entry for the work hour of the company. Apply the time range to the
ACL rule which blocks the access to internal forum server.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
