TP-Link T2600G Series User Manual

User Guide 530
Configuring Routing Example for Static Routing
5
Example for Static Routing
5.1 Network Requirements
As shown below, Host A and Host B are on different network segments. To meet business
needs, Host A and Host B need to establish a connection without using dynamic routing
protocols to ensure stable connectivity.

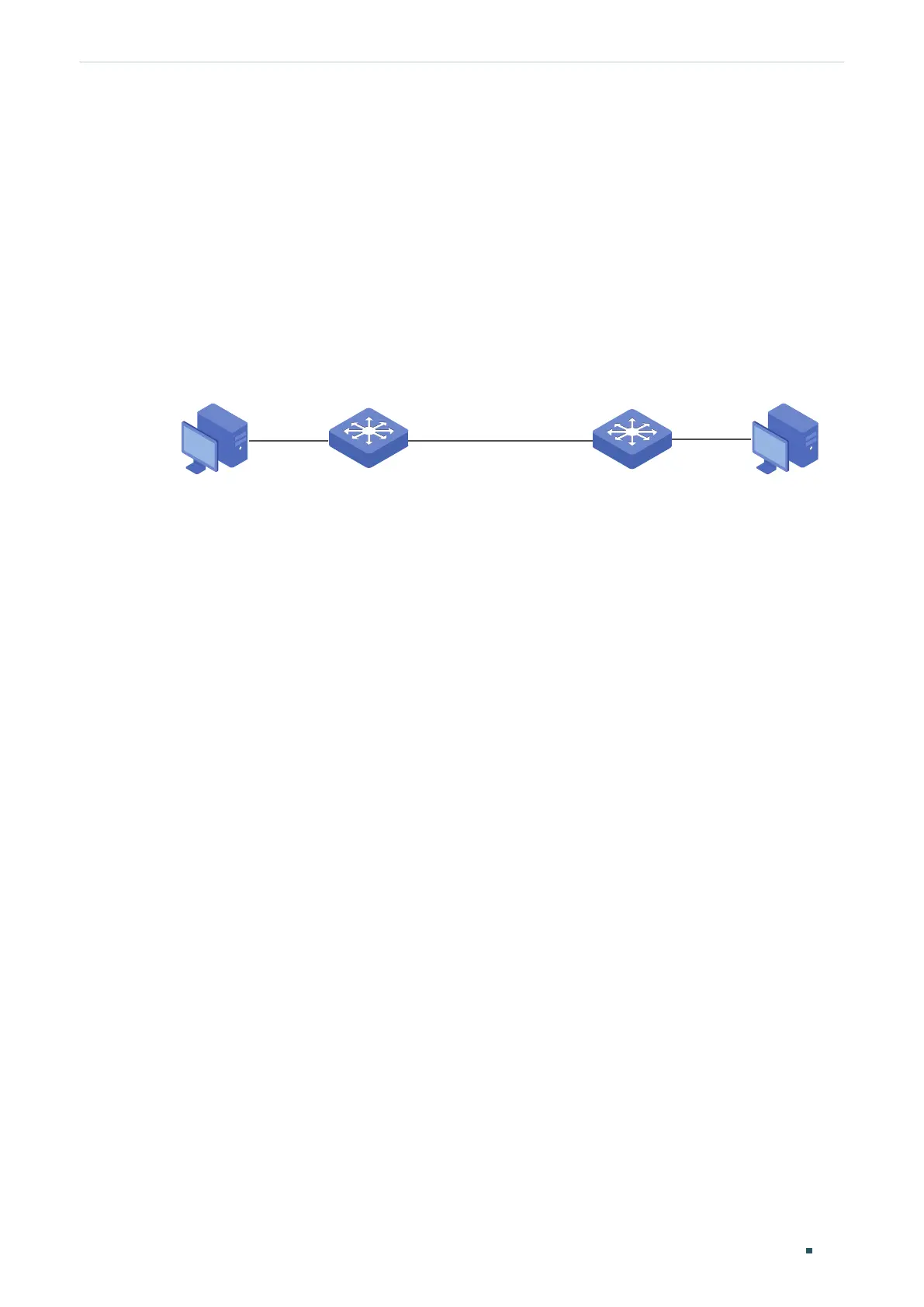

Figure 5-1 Network Topology
Host A
10.1.1.100/24
Host B
10.1.2.100/24
Gi1/0/1
Gi1/0/2
Gi1/0/1
Gi1/0/2
10.1.1.1/24 10.1.10.1/24
10.1.10.2/24
10.1.2.1/24
Switch A Switch B
5.2 Configuration Scheme
To implement this requirement, you can configure the default gateway of host A as
10.1.1.1/24, the default gateway of host B as 10.1.2.1/24, and configure IPv4 static routes
on Switch A and Switch B so that hosts on different network segments can communicate
with each other.
Demonstrated with T2600G-28TS, the following sections provide configuration procedure
in two ways: using the GUI and using the CLI.
5.3 Using the GUI
The configurations of Switch A and Switch B are similar. The following introductions take
Switch A as an example.
1) Choose the menu L3 FEATURES > Interface to create a routed port Gi1/0/1 with the
mode as static, the IP address as 10.1.1.1, the mask as 255.255.255.0 and the admin
status as Enable. Create a routed port Gi1/0/2 with the mode as static, the IP address as
10.1.10.1, the mask as 255.255.255.0 and the admin status as Enable.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
