TP-Link T2600G Series User Manual

Configuring Spanning Tree Configuration Example for MSTP
User Guide
427
5
Configuration Example for MSTP
MSTP, backwards-compatible with STP and RSTP, can map VLANs to instances to
implement load-balancing, thus providing a more flexible method in network management.
Here we take the MSTP configuration as an example.
5.1 Network Requirements
As shown in figure 5-1, the network consists of three switches. Traffic in VLAN 101-VLAN
106 is transmitted in this network. The link speed between the switches is 100Mb/s (the
default path cost of the port is 200000).
It is required that traffic in VLAN 101 - VLAN 103 and traffic in VLAN 104 - VLAN 106 should
be transmitted along different paths.

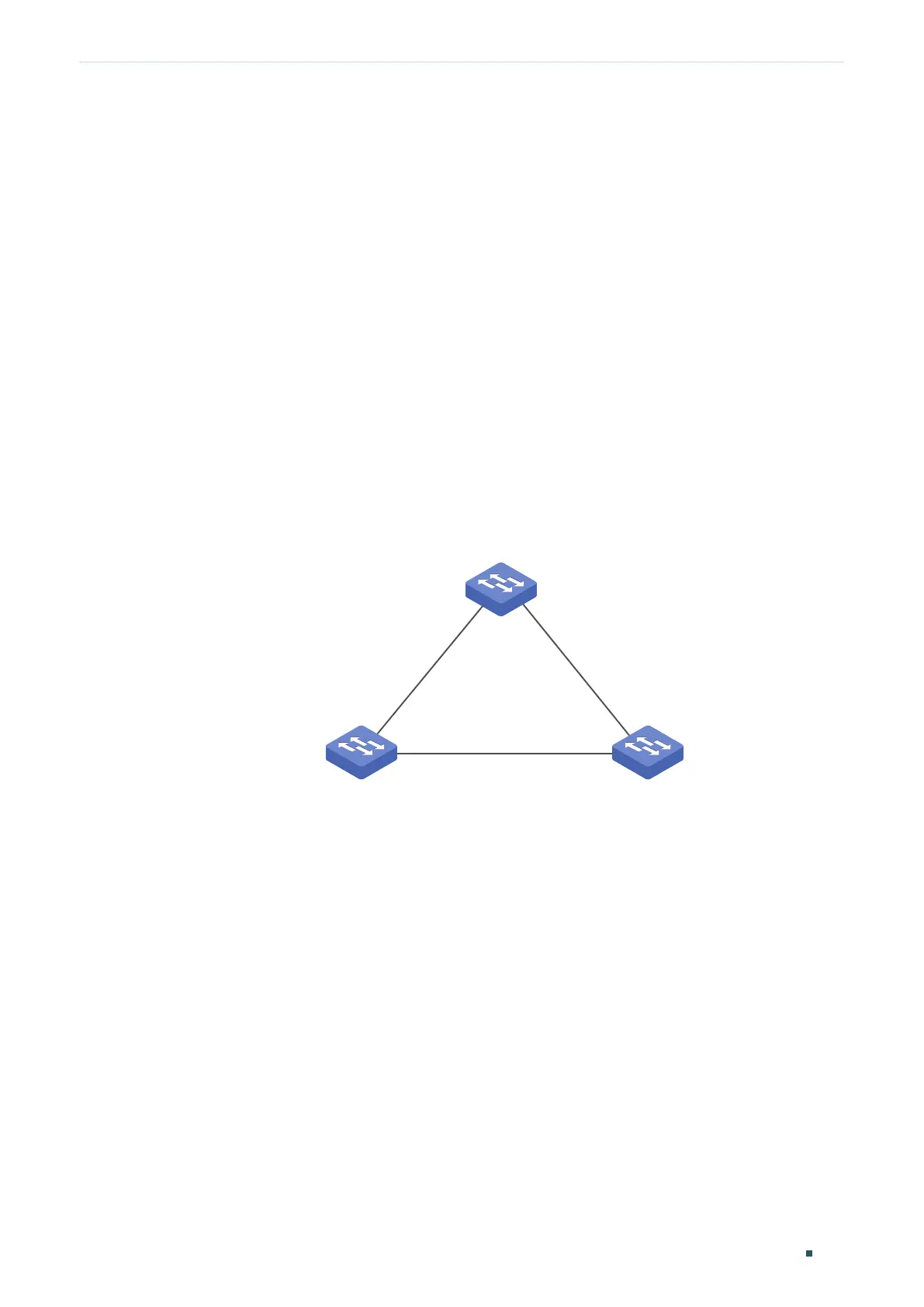

Figure 5-1 Network Topology
Switch A
MAC: 00-0A-EB-13-23-97
Switch B
MAC: 00-0A-EB-13-12-97
Switch C
MAC: 3C-46-D8-9D-88-F7
Gi1/0/2
Gi1/0/2
Gi1/0/2
Gi1/0/1
Gi1/0/1
Gi1/0/1
200000
200000
200000
5.2 Configuration Scheme
To meet this requirement, you are suggested to configure MSTP function on the switches.
Map the VLANs to different instances to ensure traffic can be transmitted along the
respective instance.
Here we configure two instances to meet the requirement, as is shown below:

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
