TP-Link T2600G Series User Manual

Configuring IPv4 IMPB Configuration Examples
User Guide
875

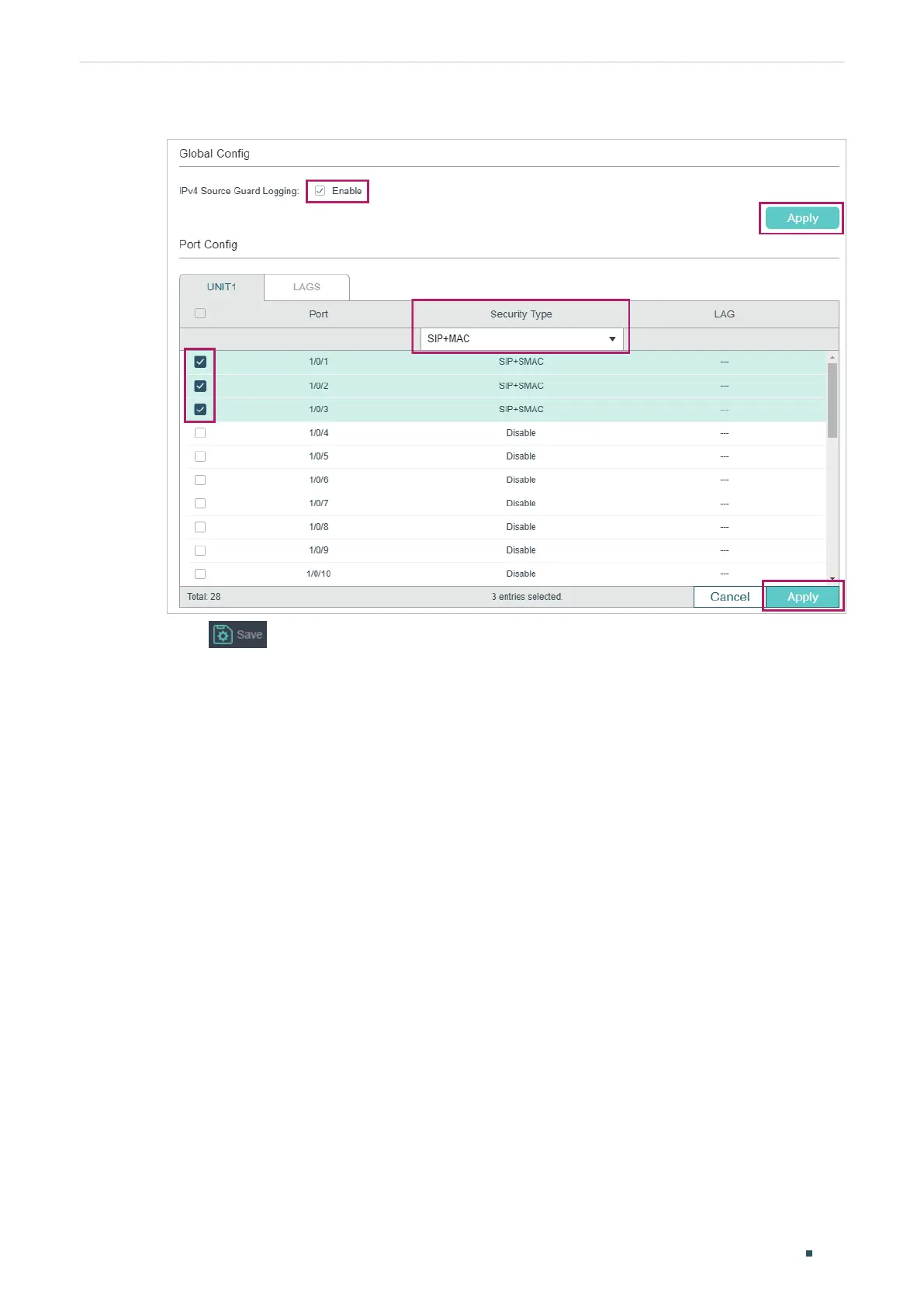

Figure 5-8 IPv4 Source Guard
3) Click to save the settings.
5.2.4 Using the CLI
1) Manually bind the IP address, MAC address, VLAN ID and connected port number of the
legal host, and apply this entry to the IP Source Guard feature.
Switch#configure
Switch(config)#ip source binding legal-host 192.168.0.100 74:d3:45:32:b5:6d vlan 1
interface gigabitEthernet 1/0/1 ip-verify-source
2) Enable the log feature and IP Source Guard on ports 1/0/1-3.
Switch(config)# ip verify source logging
Switch(config)# interface range gigabitEthernet 1/0/1-3
Switch(config-if-range)#ip verify source sip+mac
Switch(config-if-range)#end
Switch#copy running-config startup-config
Verify the Configuration
Verify the binding entry:
Switch#show ip source binding

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
