TP-Link T2600G Series User Manual

Configuring QoS Voice VLAN Configuration
User Guide
655

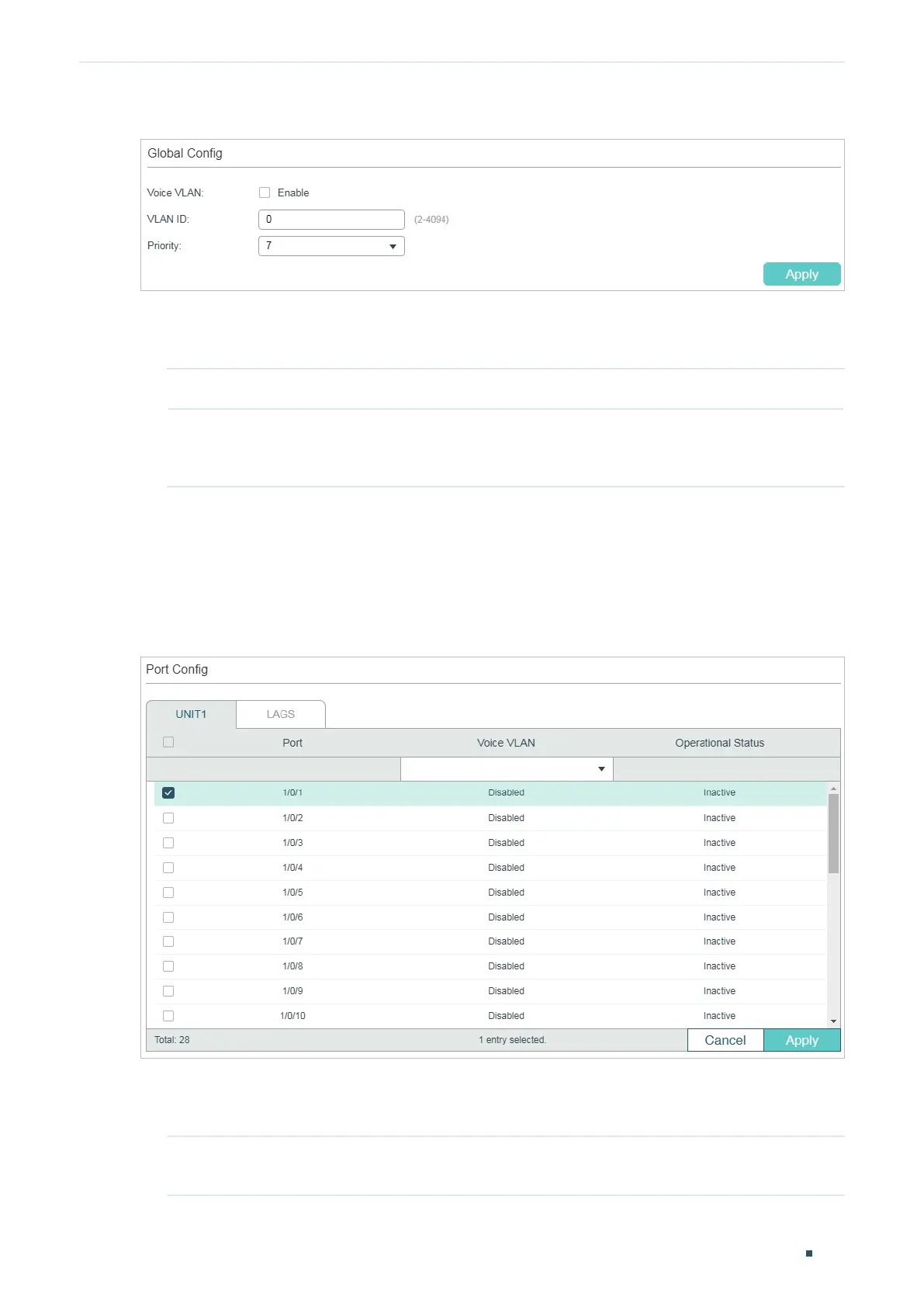

Figure 4-3 Configuring Voice VLAN Globally
Follow these steps to configure voice VLAN globally:
1) Enable the voice VLAN feature and specify the parameters.
VLAN ID Specify the 802.1Q VLAN ID to set the 802.1Q VLAN as the voice VLAN.
Priority Select the priority that will be assigned to voice packets. A bigger value means
a higher priority. This is an IEEE 802.1p priority, and you can further configure its
scheduler mode in Class of Service if needed.
2) Click Apply.
4.1.1 Adding Ports to Voice VLAN
Choose the menu QoS > Voice VLAN > Port Config to load the following page.
Figure 4-4 Adding Ports to Voice VLAN
Follow these steps to configure voice VLAN globally:
1) Select the desired ports and choose Enable in Voice VLAN filed.
Voice VLAN Select Enable to enable the voice VLAN feature on ports and add the desired
ports to Voice VLAN.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
