Configuring VLAN-VPN Configuration Examples

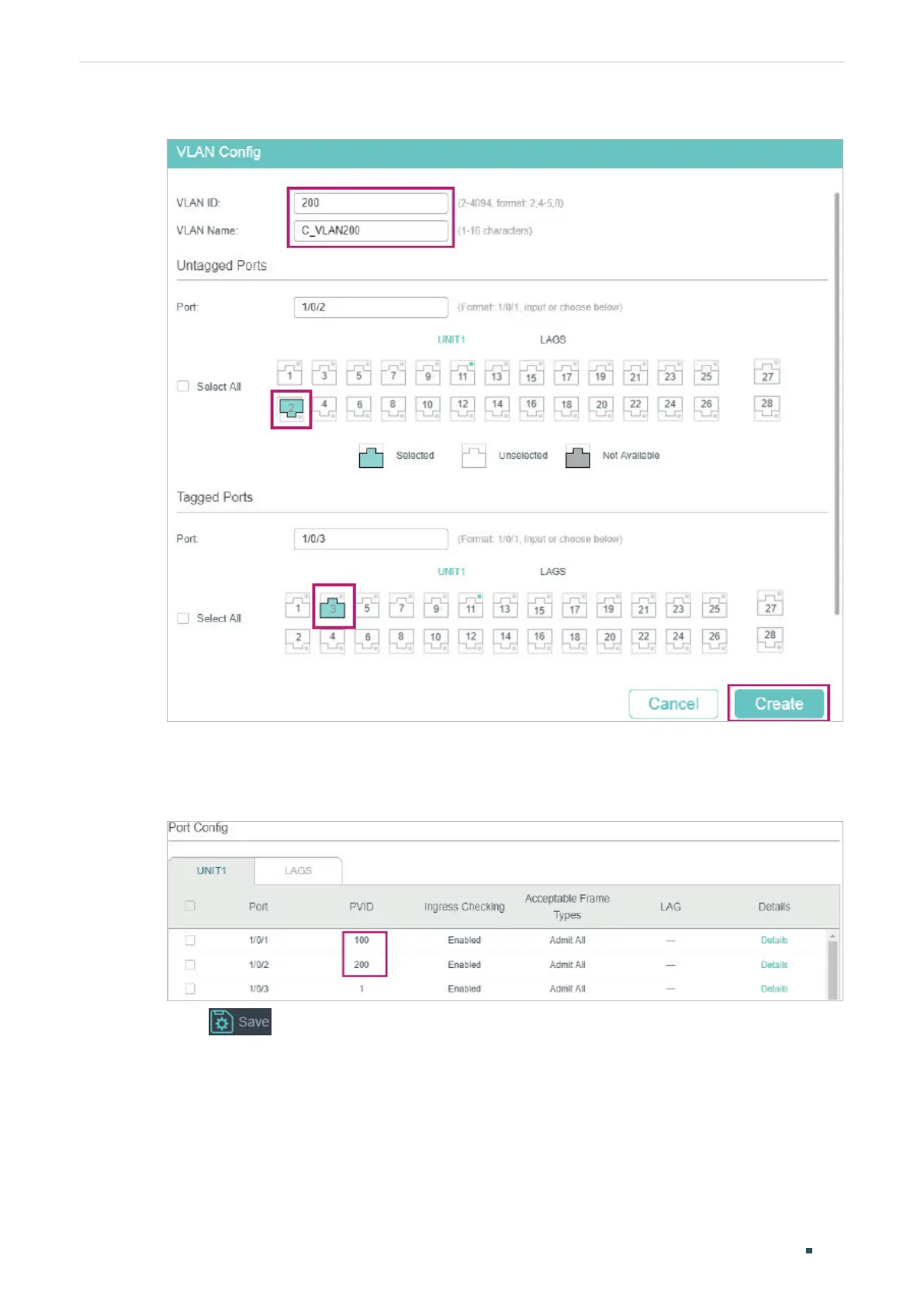

Figure 4-8 Creating VLAN 200
2) Go to L2 FEATURES > VLAN > Port Config to set the PVID as 100 for port 1/0/1 and
200 for port 1/0/2.
Figure 4-9 Configuring PVID
3) Click to save the settings.
4.1.4 Using the CLI
The configurations of Switch 1 and Switch 2 are similar. The following introductions take
Switch 1 as an example.
1) Create VLAN 1050, VLAN 100 and VLAN 200.
Switch_1#configure
