TP-Link T2600G Series User Manual

User Guide 428
Configuring Spanning Tree Configuration Example for MSTP

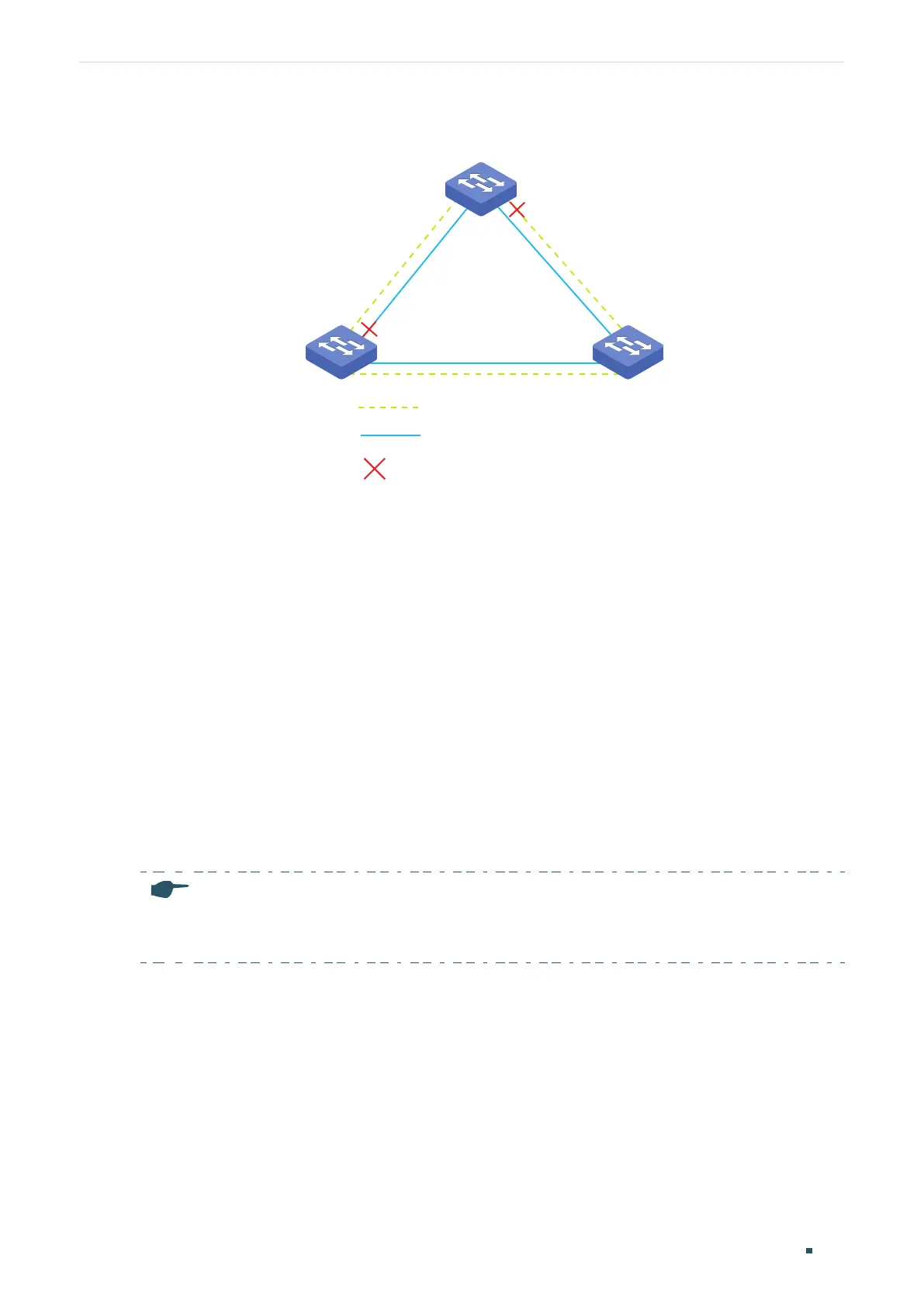

Figure 5-2 VLAN-Instance Mapping
Gi1/0/1
Gi1/0/2
Gi1/0/2
Gi1/0/2
Gi1/0/1 Gi1/0/1
Switch C
Switch A
Instance 1: VLAN 101 -VLAN 103
Instance 2: VLAN 104 -VLAN 106
Blocked Port
Switch B
The overview of configuration is as follows:
1) Enable MSTP function globally in all the switches.
2) Enable Spanning Tree function on the ports in each switch.
3) Configure Switch A, Switch B and Switch C in the same region. Configure the region
name as 1, and the revision level as 100. Map VLAN 101 - VLAN 103 to instance 1 and
VLAN 104 - VLAN 106 to instance 2.
4) Configure the priority of Switch B as 0 to set it as the root bridge in instance 1;
configure the priority of Switch C as 0 to set it as the root bridge in instance 2.
5) Configure the path cost to block the specified ports. For instance 1, set the path cost
of port 1/0/1 of Switch A to be greater than the default path cost (200000); for instance
2, set the path cost of port 1/0/2 of Switch B to be greater than the default path cost
(200000). After this configuration, port 1/0/2 of Switch A in instance 1 and port 1/0/1
of Switch B in instance 2 will be blocked for they cannot be neither root port nor
designated port.
Note:
Please configure MSTP for each switch first and then connect them together to avoid broadcast
storm.
5.3 Using the GUI
■ Configurations for Switch A
1) Choose the menu L2 FEATURES > Spanning Tree > STP Config > STP Config to load
the following page. Enable MSTP function globally, here we leave the values of the other
global parameters as default settings. Click Apply.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
