Configuring ACL Configuration Example for ACL
User Guide
819
ACL Configuration
Create a MAC ACL and configure the following rules for it:
Configure a permit rule to match packets with source MAC address 8C-DC-D4-
40-A1-79 and destination MAC address 40-61-86-FC-71-56. This rule allows the
manager of R&D department to visit internal forum at any time.
Configure a deny rule to match packets with destination MAC address 40-61-86-FC-
71-56 and apply the time range of work hours. This rule forbids the employees in the
R&D department to visit the internal forum during work hours.
Configure a permit rule to match all the packets that do not match neither of the above
rules.
Binding Configuration
Bind the MAC ACL to port 1/0/2 so that the ACL rules will be applied to the computer of
the devices in the R&D department which are restricted to the internal forum during work
hours.
Demonstrated with T2600G-28TS, the following sections explain the configuration
procedure in two ways: using the GUI and using the CLI.
3.1.3 Using the GUI
1) Choose the menu SYSTEM > Time Range > Time Range Config and click to
load the following page. Create a time range named Work_time.

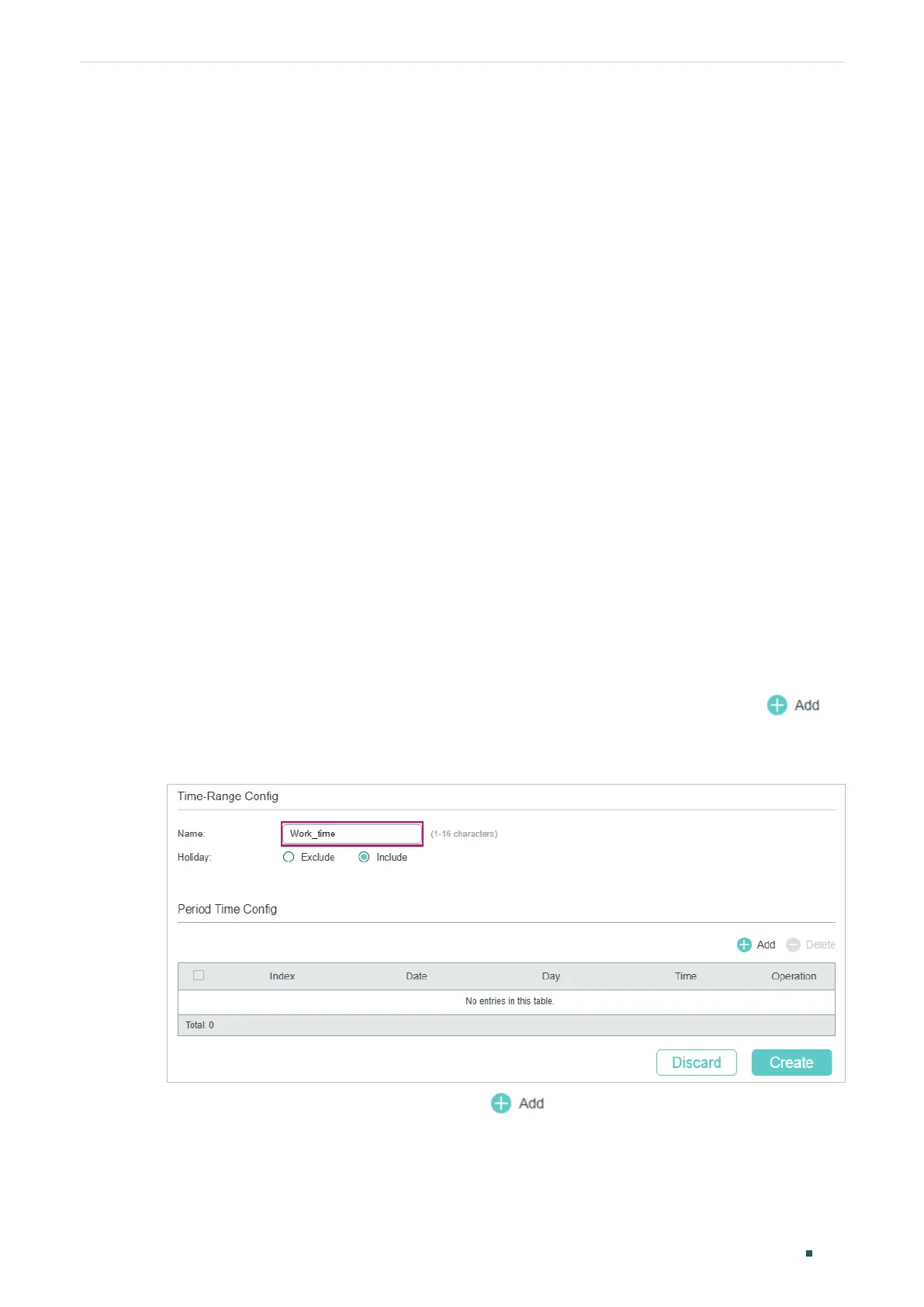

Figure 3-2 Configuring Time Range
2) In the Period Time Config section, click and the following window will pop up.
Add the work hour of the company in the Period Time and click Save.
