Configuring IPv4 IMPB Configuration Examples
User Guide
869
3) Configure ARP Detection on ports. Since port 1/0/3 is connected to the gateway router,
set port 1/0/3 as trusted port. To prevent ARP flooding attacks, limit the speed of
receiving the legal ARP packets on all ports.
Demonstrated with T2600G-28TS, the following sections provide configuration procedure
in two ways: using the GUI and using the CLI.
5.1.3 Using the GUI
1) Choose the menu SECURITY > IPv4 IMBP > IP-MAC Binding > Manual Binding and
click
to load the following page. Enter the host name, IP address, MAC address
and VLAN ID of User 1, select the protect type as ARP Detection, and select port 1/0/1
on the panel. Click Apply.

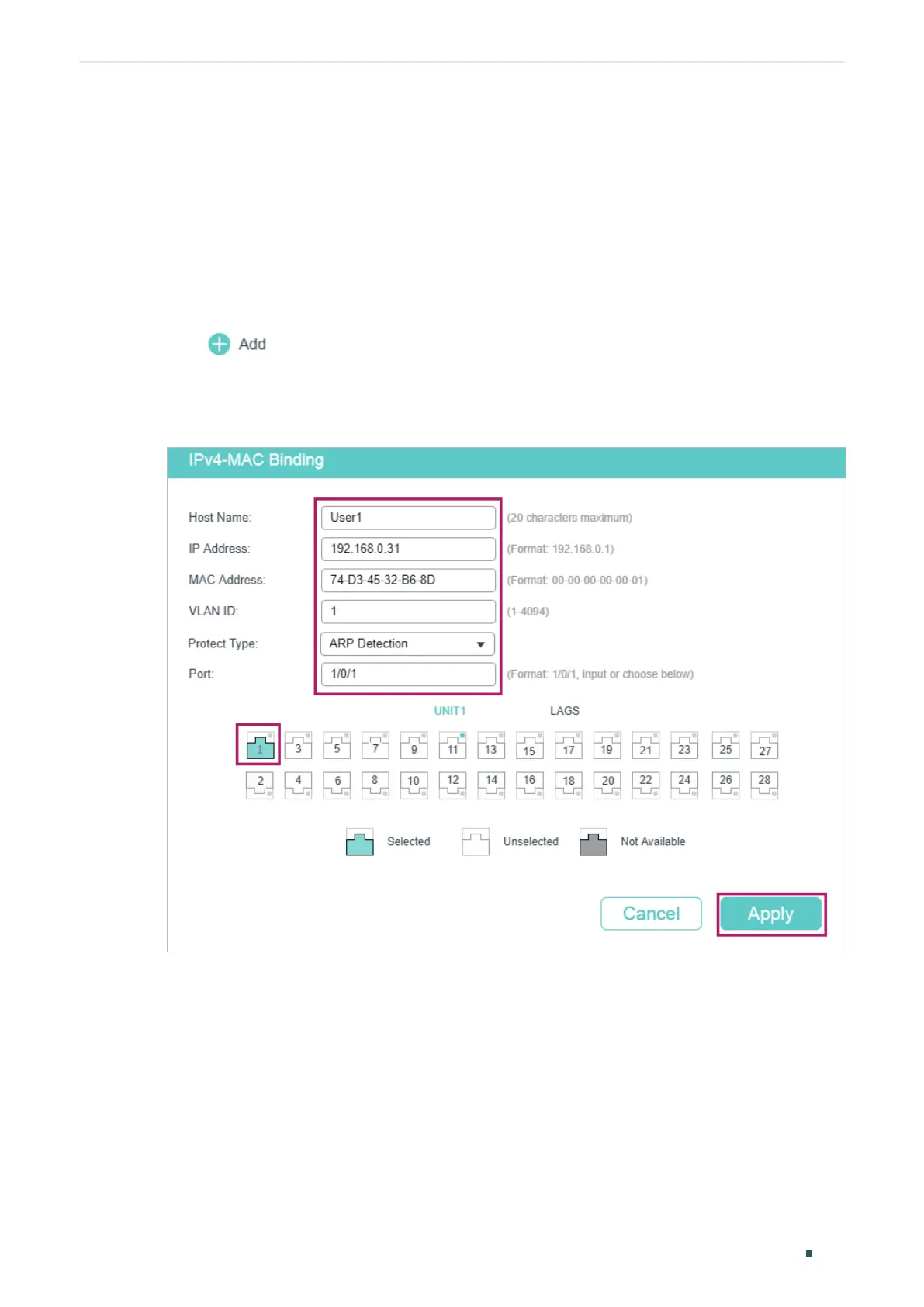

Figure 5-2 Binding Entry for User 1
2) On the same page, add a binding entry for User 2. Enter the host name, IP address, MAC
address and VLAN ID of User 2, select the protect type as ARP Detection, and select
port 1/0/2 on the panel. Click Apply.
