TP-Link T2600G Series User Manual

User Guide 870
Configuring IPv4 IMPB Configuration Examples

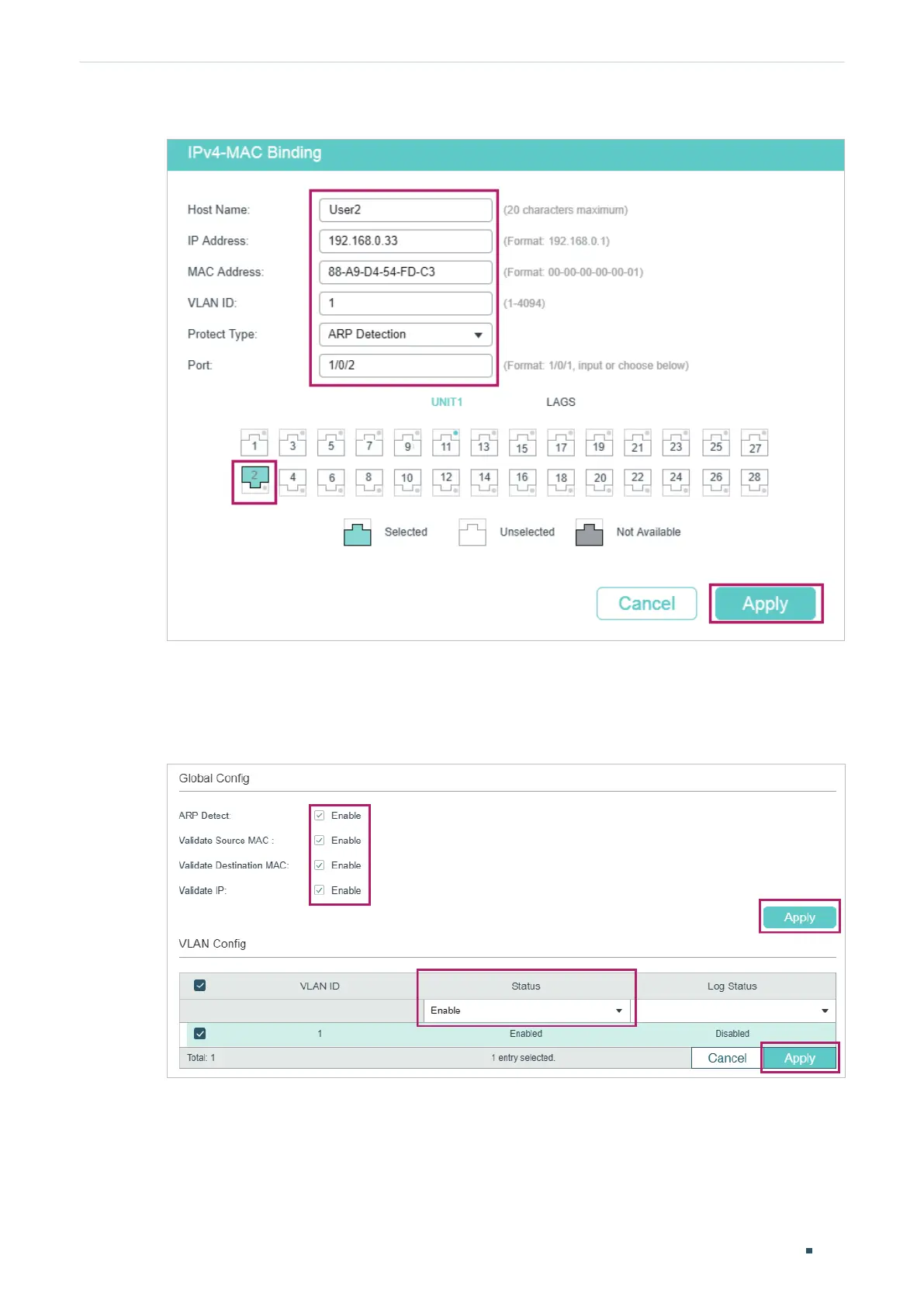

Figure 5-3 Binding Entry for User 2
3) Choose the menu SECURITY > IPv4 IMBP > ARP Detection > Global Config to load the
following page. Enable APP Detect, Validate Source MAC, Validate Destination MAC and
Validate IP, and click Apply. Select VLAN 1, change Status as Enabled and click Apply.
Figure 5-4 Enable ARP Detection
4) Choose the menu SECURITY > IPv4 IMBP > ARP Detection > Port Config to load the
following page. By default, all ports are enabled with ARP Detection and ARP flooding
defend. Configure port 1/0/3 as trusted port and keep other defend parameters as
default. Click Apply.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
