TP-Link T2600G Series User Manual

Configuring LAG Configuration Examples
User Guide
121

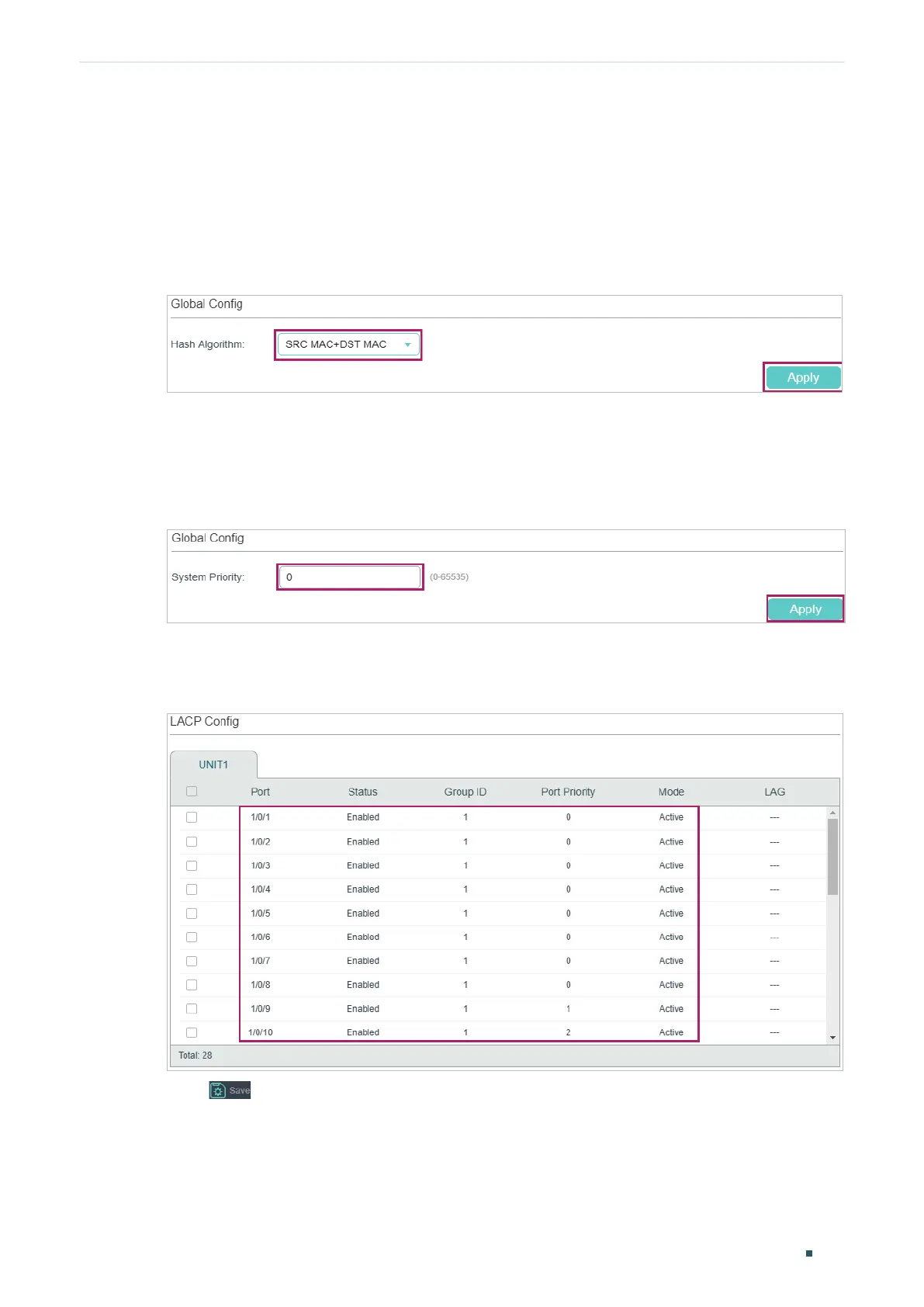

3.2.3 Using the GUI
The configurations of switch A and switch B are similar. The following introductions take
switch A as an example.
1) Choose the menu L2 FEATURES > Switching > LAG > LAG Table to load the following
page. Select the hash algorithm as ‘SRC MAC+DST MAC’.
Figure 3-5 Global Configuration
2) Choose the menu L2 FEATURES > Switching > LAG > LACP Config to load the
following page. In the Global Config section, specify the system priority of Switch A
as 0 and Click Apply. Remember to ensure that the system priority value of Switch B is
bigger than 0.
Figure 3-6 System Priority Configuration
3) In the LACP Config section, select ports 1/0/1-10, and respectively set the status,
group ID, port priority and mode for each port as follows.
Figure 3-7 LACP Configuration
4) Click to save the settings.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
