Configuring VLAN-VPN Flexible VLAN-VPN Configuration
3
Flexible VLAN-VPN Configuration
To complete the flexible VLAN-VPN configuration, follow these steps:
1) Configure 802.1Q VLAN and basic VLAN-VPN.
2) Configure VLAN mapping.
Configuration Guidelines
■ Before you start, configure 802.1Q VLAN and the basic VLAN-VPN.
■ You can specify the PVID of the UNI port according to your needs. The untagged
packets and the tagged packets that don’t the VLAN mapping entry may be added the
outer VLAN tag with this PVID according to your configuration.
3.1 Using the GUI
Choose the menu L2 FEATURES > VLAN > VLAN VPN > VLAN Mapping to load the
following page.

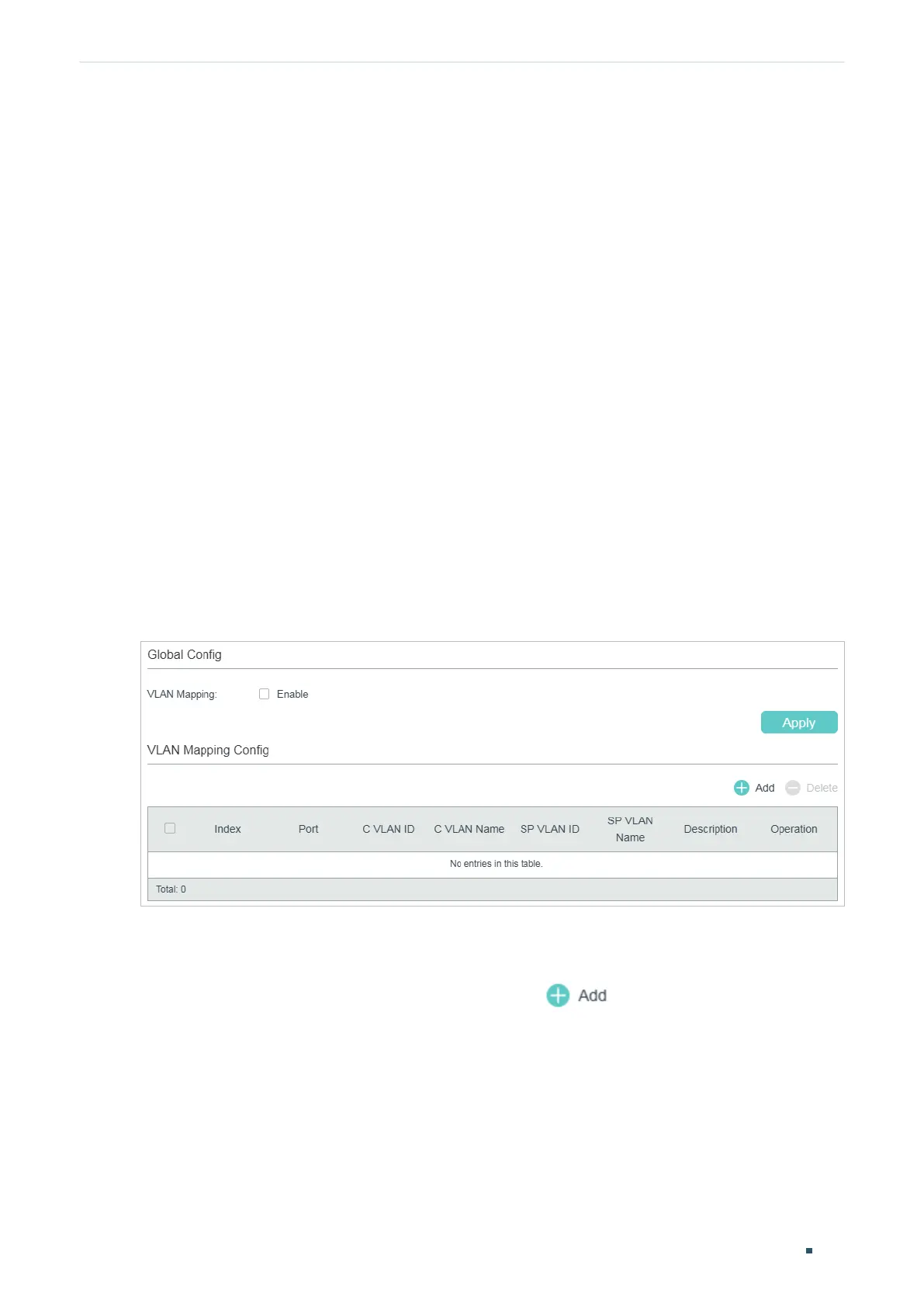

Figure 3-1 Enable Flexible VLAN-VPN
Follow these steps to configure flexible VLAN-VPN:
1) In the Global Config section, enable VLAN mapping globally and click Apply.
2) In the VLAN Mapping Config section, click
to load the following page.
Configure the following parameters.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
