TP-Link T2600G Series User Manual

User Guide 664
Configuring QoS Configuration Examples
6
Configuration Examples
6.1 Example for Class of Service
6.1.1 Network Requirements
As shown below, both RD department and Marketing department can access the internet.
When congestion occurs, the traffic from two departments can both be forwarded and the
traffic from the Marketing department should take precedence.

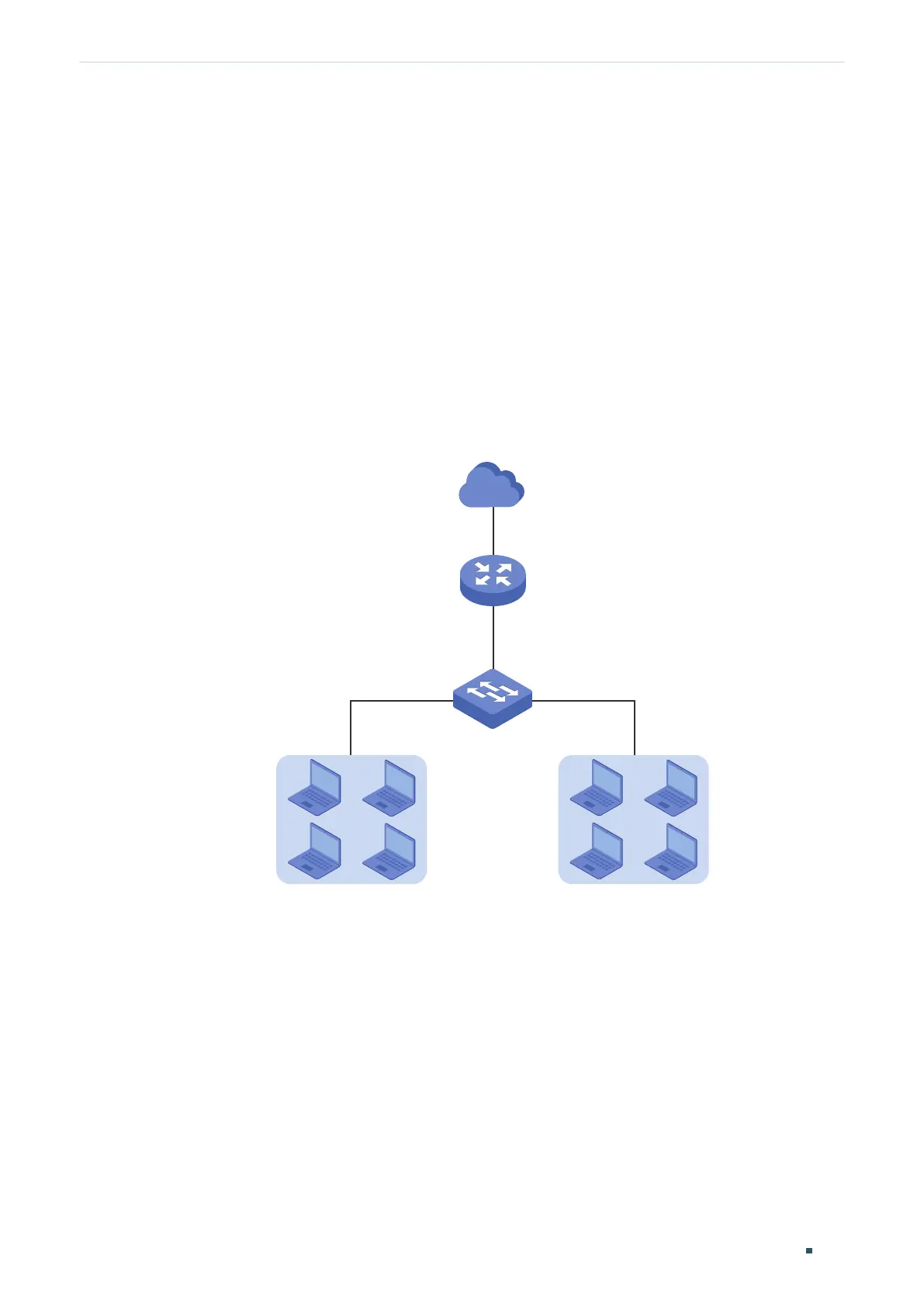

Figure 6-1 QoS Application Topology
RD Dept. Marketing Dept.
Router
Gi1/0/3
Gi1/0/1
Gi1/0/2
Switch A
Internet
6.1.2 Configuration Scheme
To implement this requirement, you can configure Port Priority to put the packets from the
Marketing department into the queue with the higher priority than the packets from the RD
department.
1) Configure the trust mode of port 1/0/1 and port 1/0/2 as untrusted and map the ports
to different queues.
2) Set the scheduler type of the queues as weighted for port 1/0/3 and specify the queue
weight to make the traffic from the Marketing department take precedence.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
