TP-Link T2600G Series User Manual

User Guide 902
Configuring IPv6 IMPB Configuration Examples
3) Configure ND Detection on ports. Since port 1/0/3 is connected to the gateway router,
set port 1/0/3 as trusted port.
Demonstrated with T2600G-28TS, the following sections provide configuration procedure
in two ways: using the GUI and using the CLI.
5.1.3 Using the GUI
1) Choose the menu SECURITY > IPv6 IMBP > IPv6-MAC Binding > Manual Binding
and click
to load the following page. Enter the host name, IPv6 address, MAC
address and VLAN ID of User 1, select the protect type as ND Detection, and select port
1/0/1 on the panel. Click Apply.

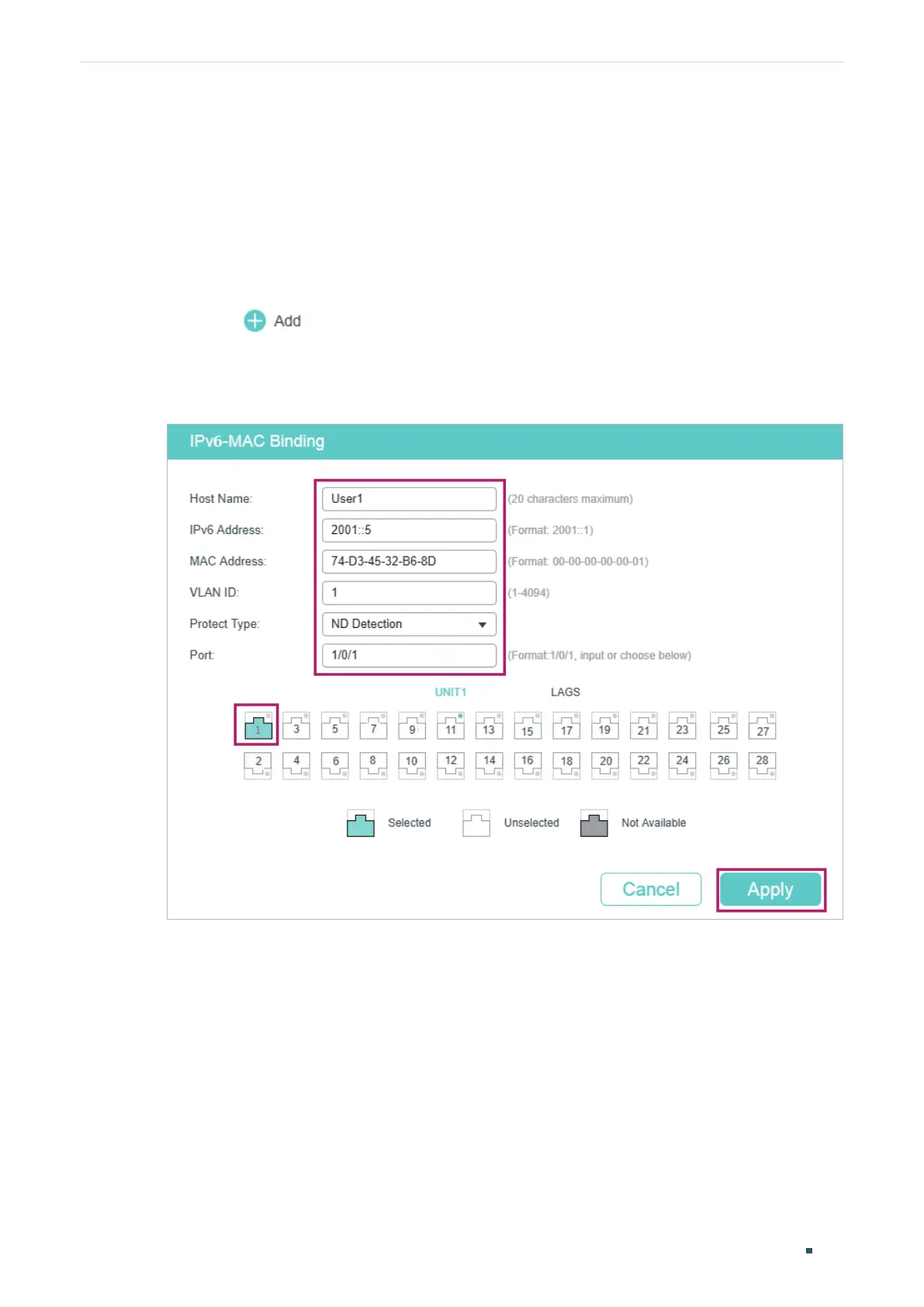

Figure 5-2 Binding Entry for User 1
2) In the same way, add a binding entry for User 2. Enter the host name, IPv6 address, MAC
address and VLAN ID of User 2, select the protect type as ND Detection, and select port
1/0/2 on the panel. Click Apply.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
