Configuring Private VLAN Configuration Example

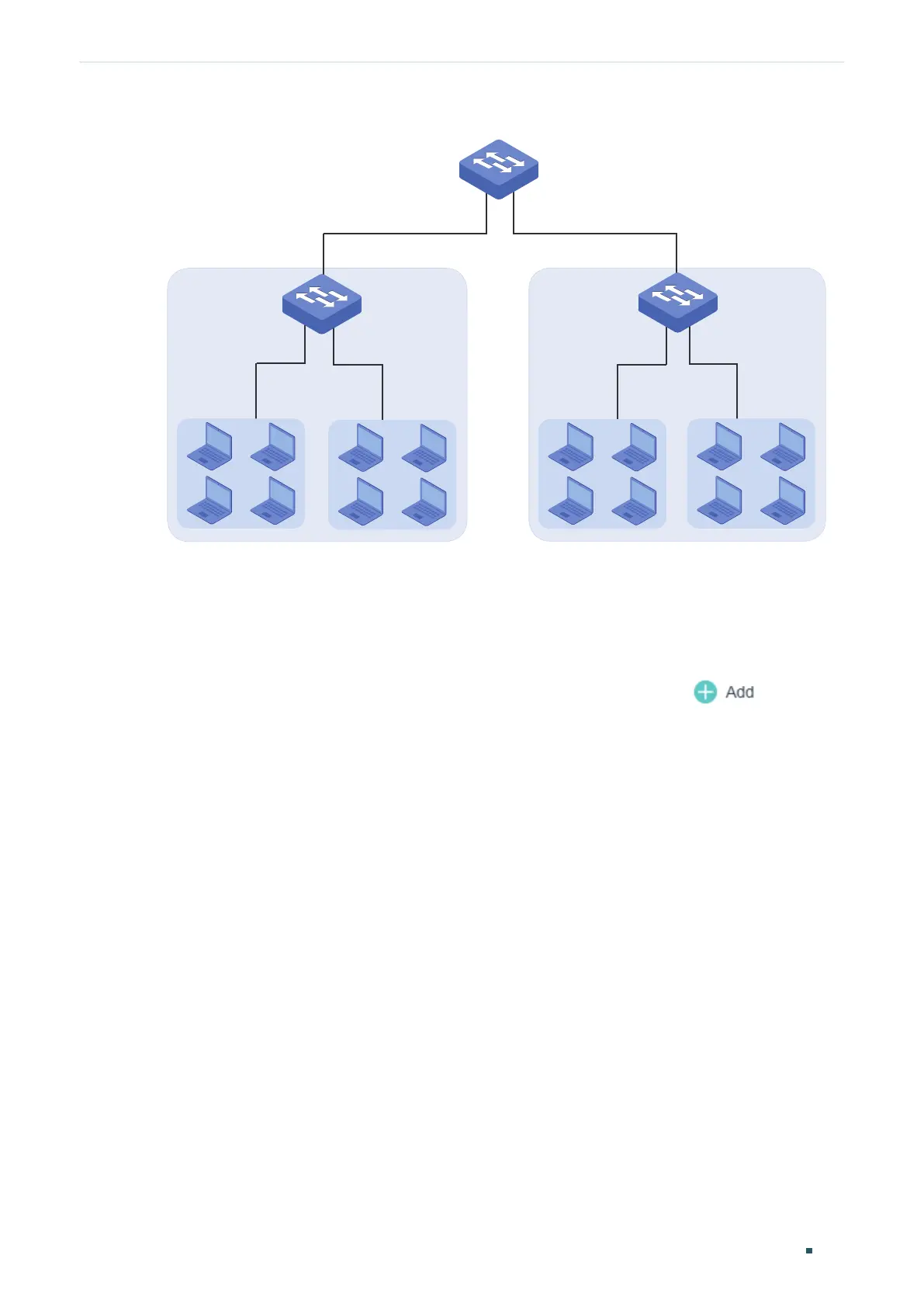

Figure 3-1 Network Topology
VLAN6
Gi1/0/10 Gi1/0/11
Gi1/0/2
Switch A
VLAN5
VLAN7
Switch C
...
Gi1/0/3
Company A
3.4 Using the GUI
■ Configurations for Switch A
1) Choose the menu L2 FEATURES > VLAN > Private VLAN and click
to load the
following page. Create primary VLAN 6 and secondary VLAN 5, select Community as
the Secondary VLAN Type. Add promiscuous port 1/0/2 and host port 1/0/10 to private
VLAN.
