TP-Link T2600G Series User Manual

Configuring Spanning Tree MSTP Configurations
User Guide
403
3
MSTP Configurations
To complete the MSTP configuration, follow these steps:
1) Configure parameters on ports in CIST.
2) Configure the MSTP region.
3) Configure the MSTP globally.
4) Verify the MSTP configurations.
Configuration Guidelines
■ Before configuring the spanning tree, it’s necessary to make clear the role that each
switch plays in a spanning tree.
■ To avoid any possible network flapping caused by MSTP parameter changes, it
is recommended to enable MSTP function globally after configuring the relevant
parameter.
3.1 Using the GUI
3.1.1 Configuring Parameters on Ports in CIST
Choose the menu L2 FEATURES > Spanning Tree > Port Config to load the following
page.

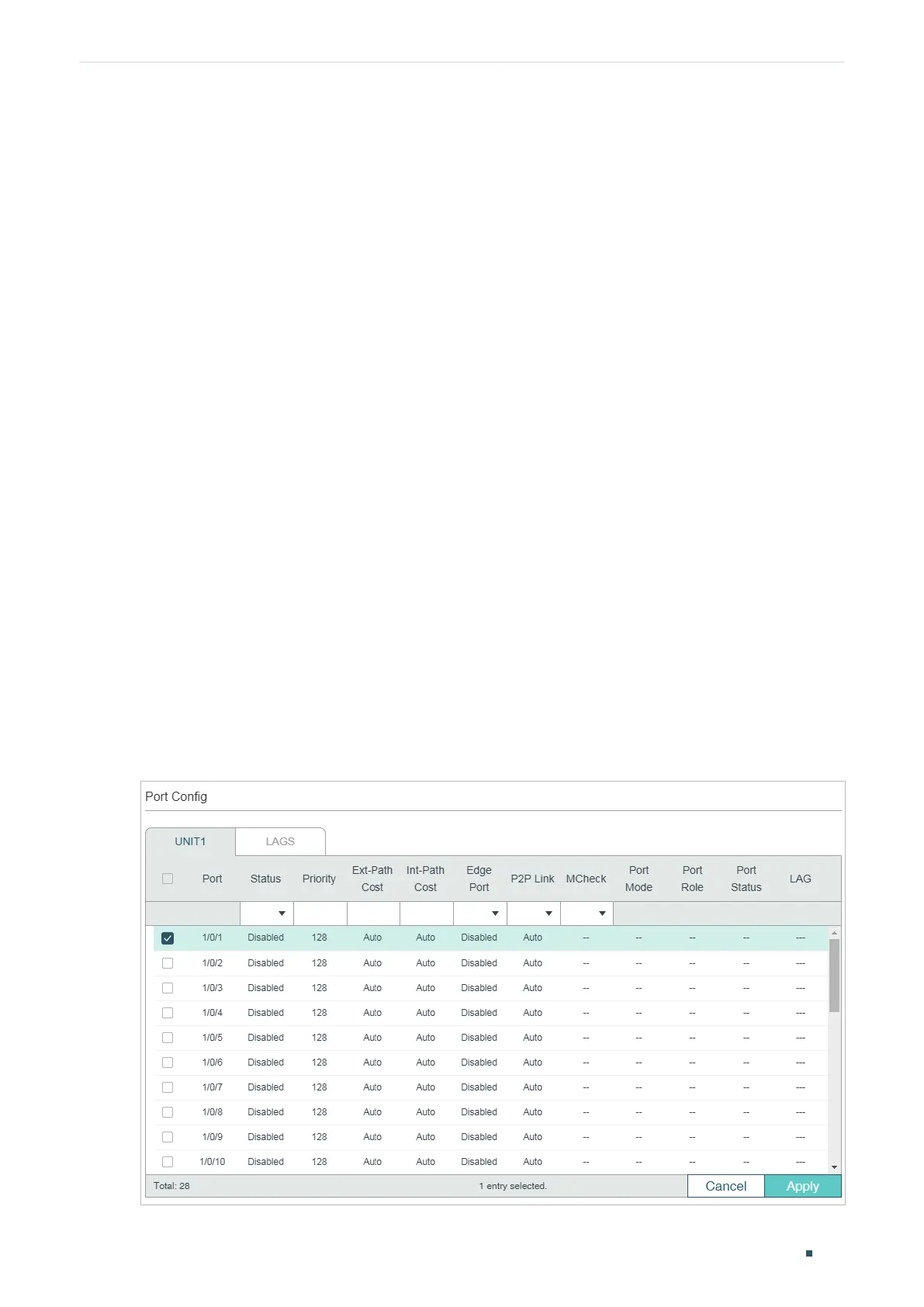

Figure 3-1 Configuring the Parameters of the Ports

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
