User Guide 362
Configuring Layer 2 Multicast Configuration Examples

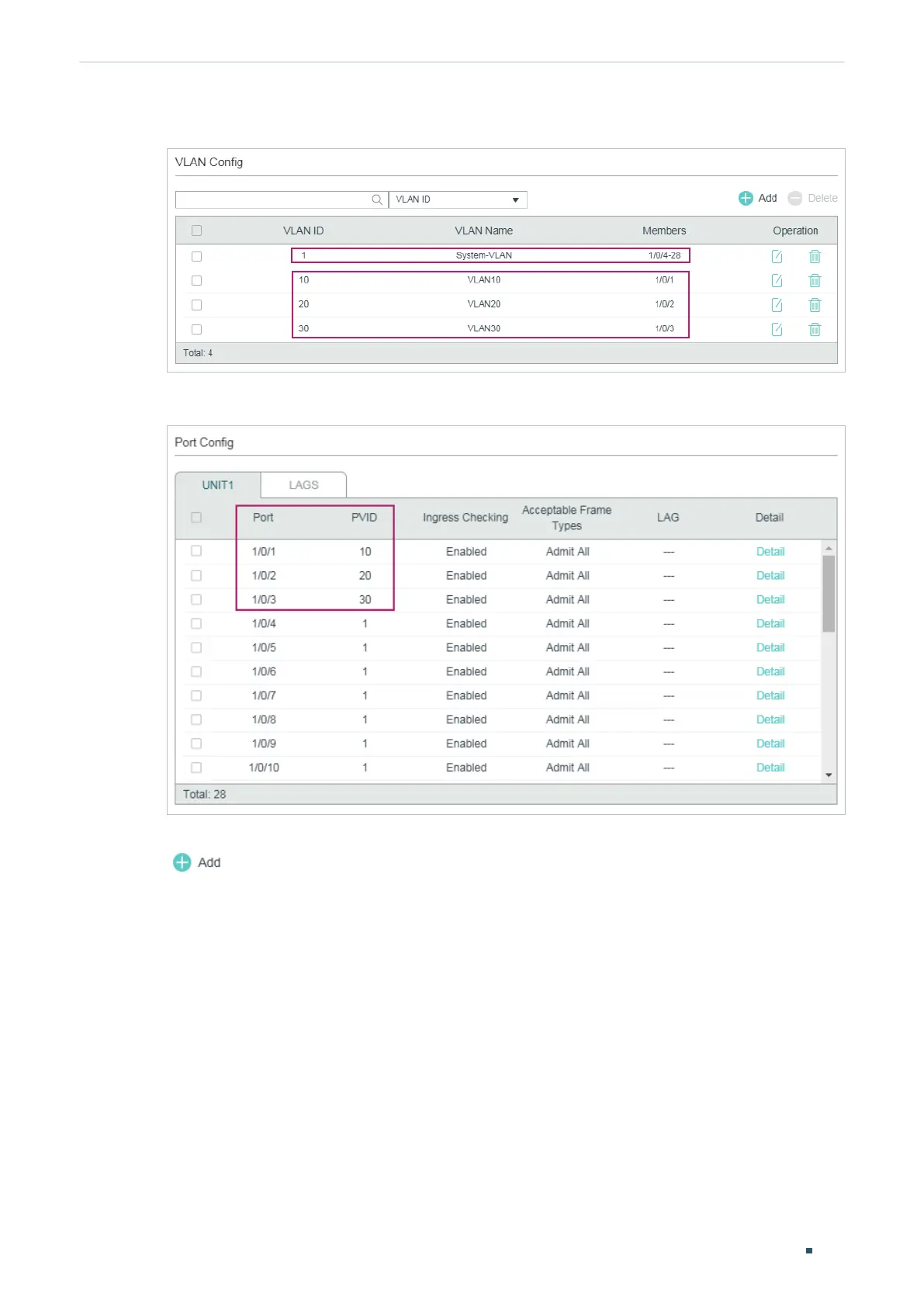

Figure 7-8 VLAN Configurations for Port 1/0/1-3
Figure 7-9 PVID for Port 1/0/1-3
2) Choose the menu L2 FEATURES > VLAN > 802.1Q VLAN > VLAN Config and click
to load the following page. Create VLAN 40 and add port 1/0/4 to the VLAN as
Tagged port.
