TP-Link T2600G Series User Manual

User Guide 1072
Configuration Example

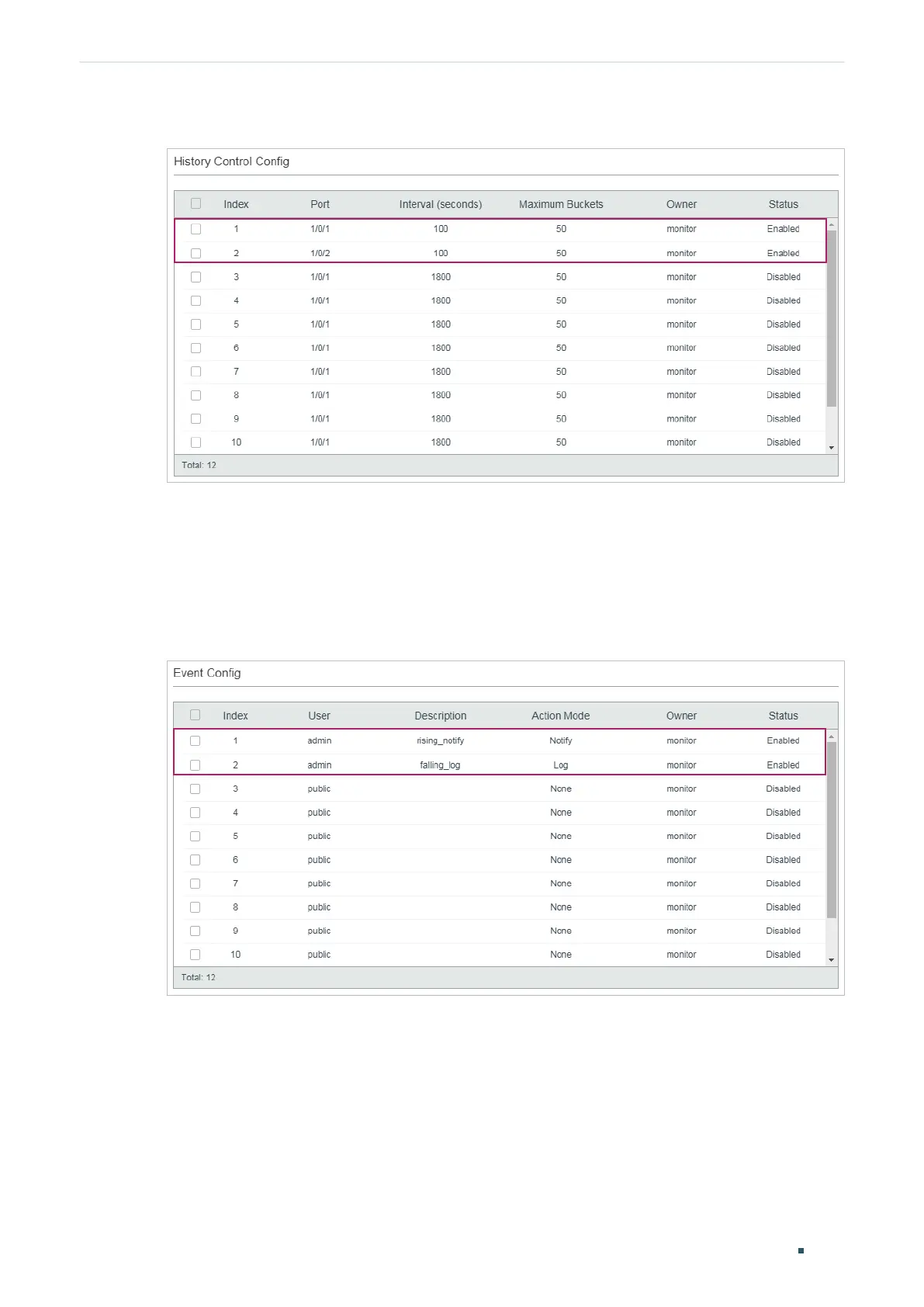

Figure 6-10 Configuring the History Entries
3) Choose the menu MAINTENANCE > SNMP > RMON > Event to load the following
page. Configure entries 1 and 2. For entry 1, set the SNMP user name as admin, type as
Notify, description as “rising_notify”, owner as monitor, and status as enable. For entry
2, set the SNMP user name as admin, type as Log, description as “falling_log”, owner as
monitor, and status as enabled.
Figure 6-11 Configuring the Event Entries
4) Choose MAINTENANCE > SNMP > RMON > Alarm to load the following page. Configure
entries 1 and 2. For entry 1, set the alarm variable as RecPackets, related statistics
entry ID as 1 (bound to port 1/0/1), the sample type as Absolute, the rising threshold
as 3000, associated rising event entry ID as 1 (which is the notify type), the falling
threshold as 2000, the associated falling event entry ID as 2 (which is the log type), the
alarm type as All, the interval as 10 seconds, the owner name as monitor. For entry 2,
set the associated statistics entry ID as 2 (bound to port 1/0/2). Other configurations
are the same as those of entry 1.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
