TP-Link T2600G Series - Page 207

User Guide 178
Configuring 802.1Q VLAN Configuration Example

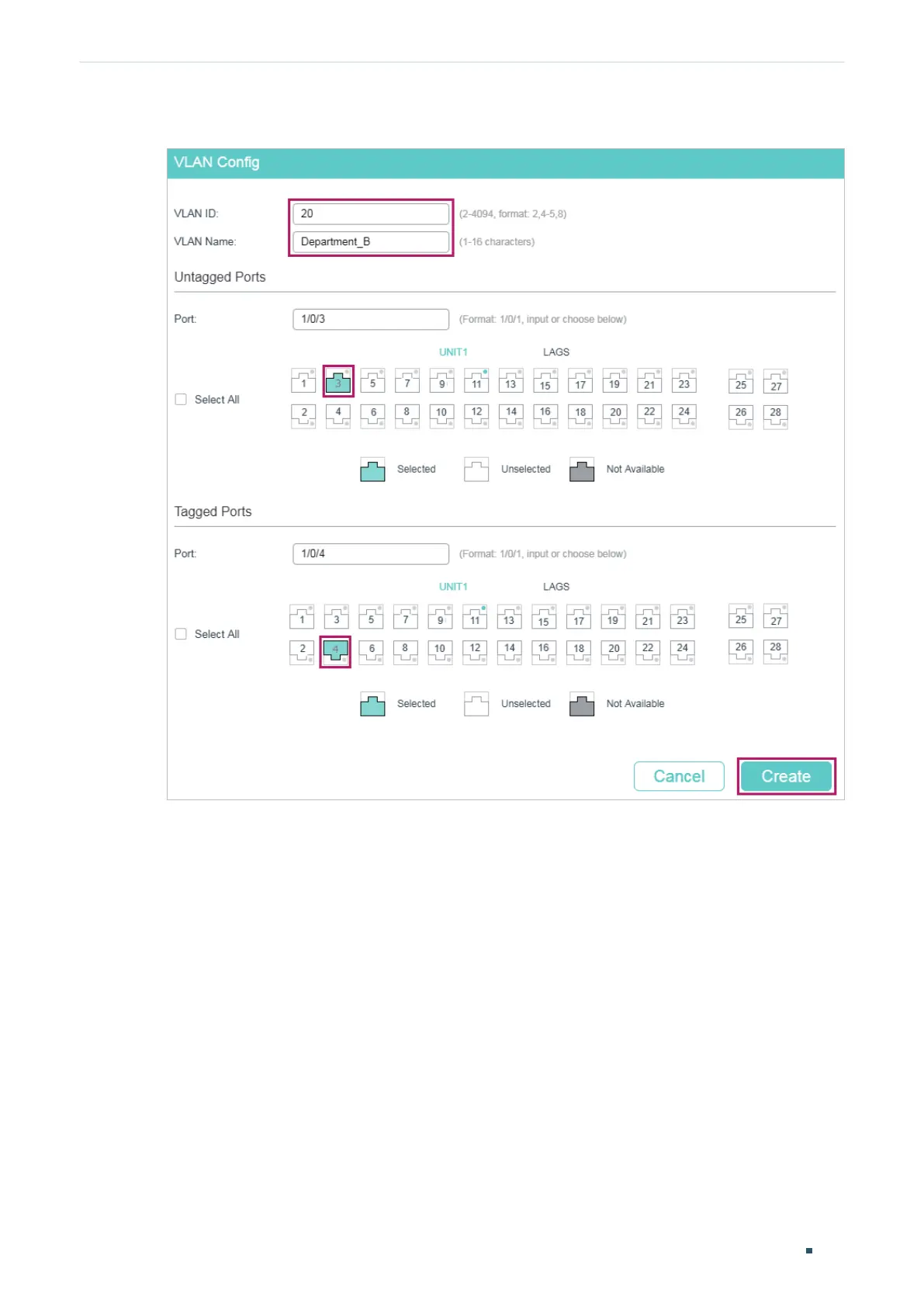

Figure 3-3 Creating VLAN 20 for Department B
3) Choose the menu L2 FEATURES > VLAN > 802.1Q VLAN > Port Config to load the
following page. Set the PVID of port 1/0/2 as 10 and click Apply. Set the PVID of port
1/0/3 as 20 and click Apply.
