Configuring MAC VLAN Configuration Example

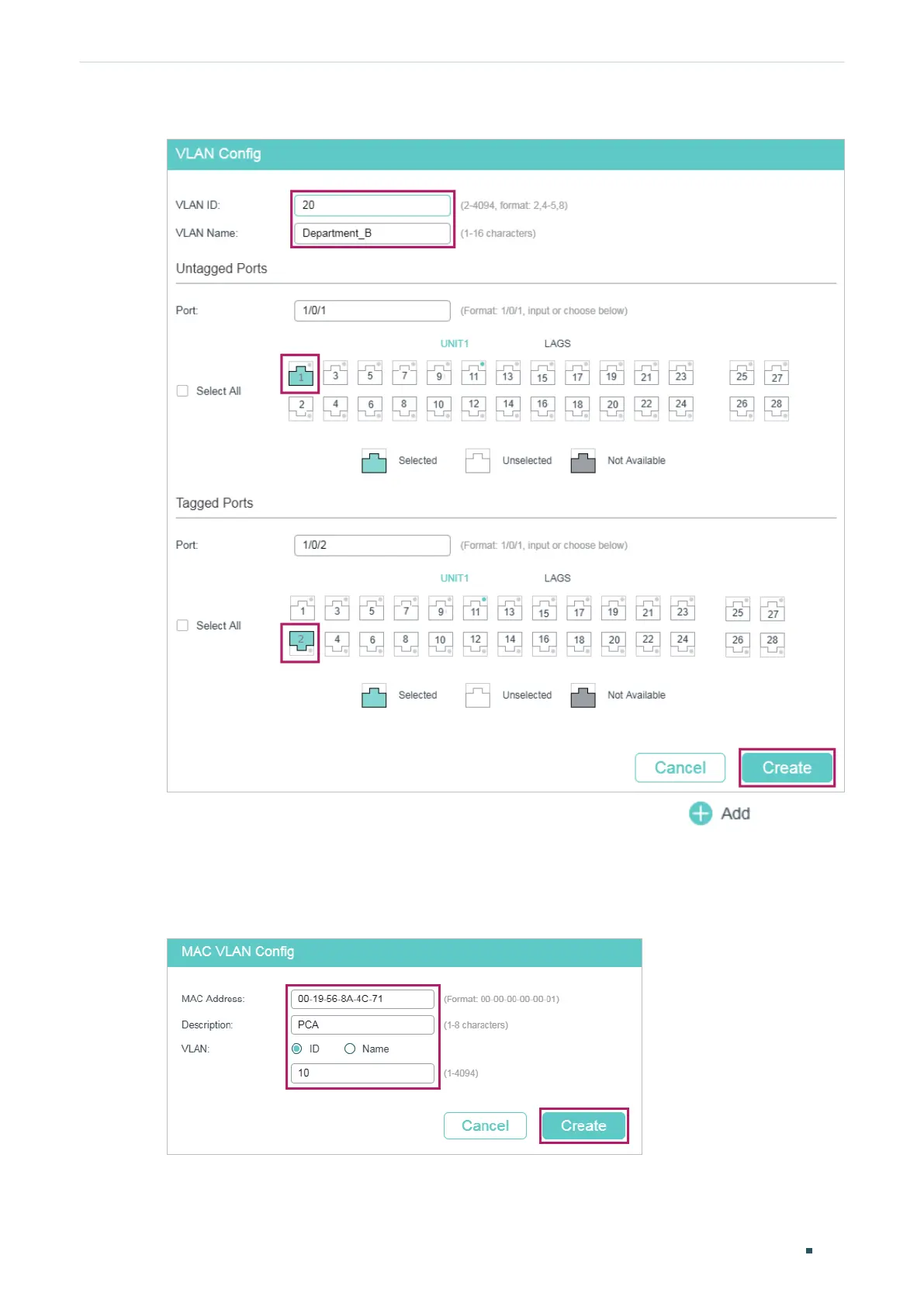

Figure 3-3 Creating VLAN 20
3) Choose the menu L2 FEATURES > VLAN > MAC VLAN and click to load the
following page. Specify the corresponding parameters and click Create to bind the
MAC address of Laptop A to VLAN 10 and bind the MAC address of Laptop B to VLAN
20.
Figure 3-4 Creating MAC VLAN
4) Choose the menu L2 FEATURES > VLAN > MAC VLAN to load the following page. In the
Port Enable section select port 1/0/1 and click Apply to enable MAC VLAN.
