Configuring Protocol VLAN Configuration Example
User Guide
213
■ Configurations for Switch 2
1) Choose the menu L2 FEATURES > VLAN > 802.1Q VLAN > VLAN Config and click
to load the following page. Create VLAN 10, and add tagged port 1/0/1 and
untagged port 1/0/2 to VLAN 10. Click Create.

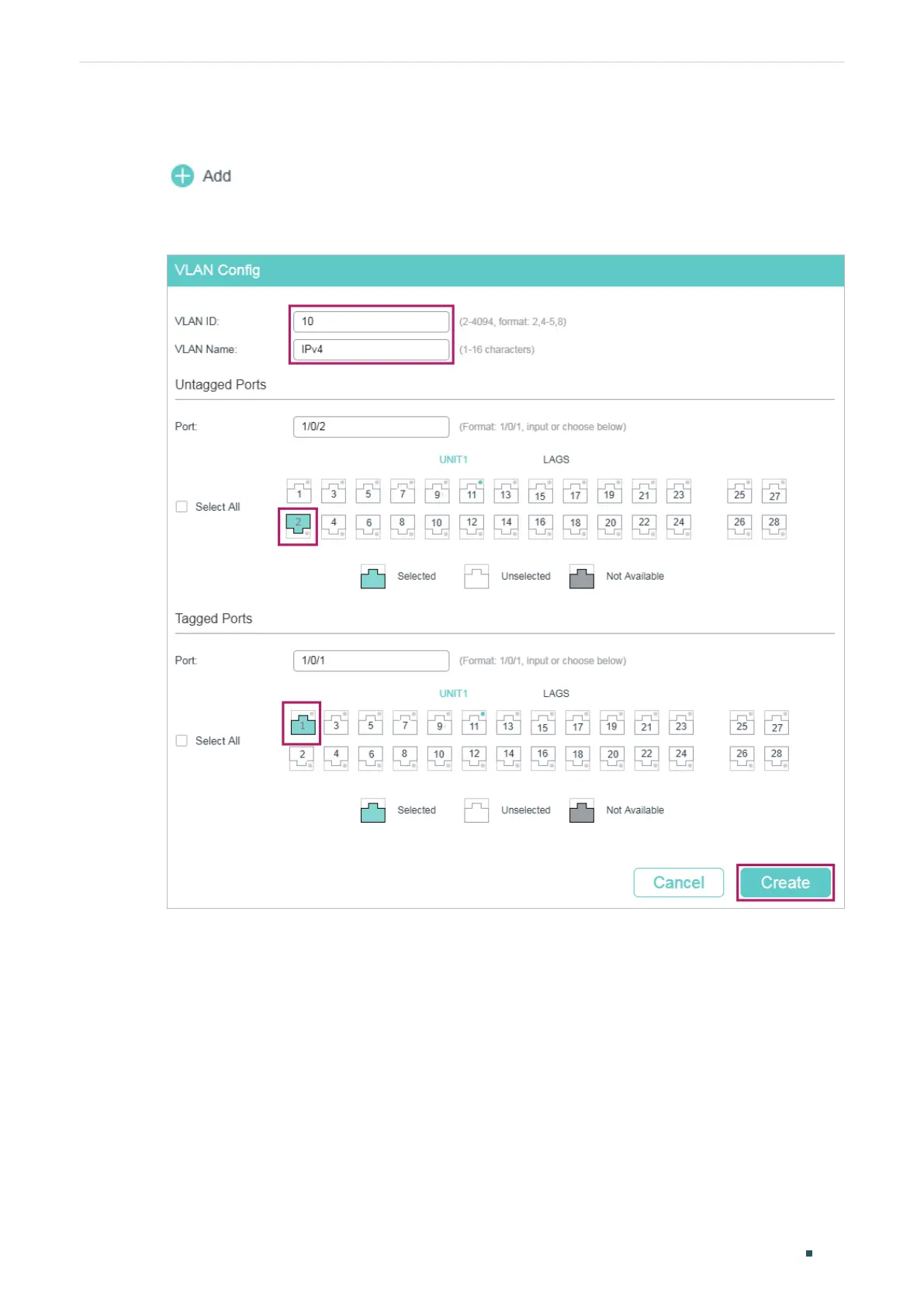

Figure 3-4 Create VLAN 10
