TP-Link T2600G Series User Manual

Configuring Protocol VLAN Configuration Example
User Guide
215

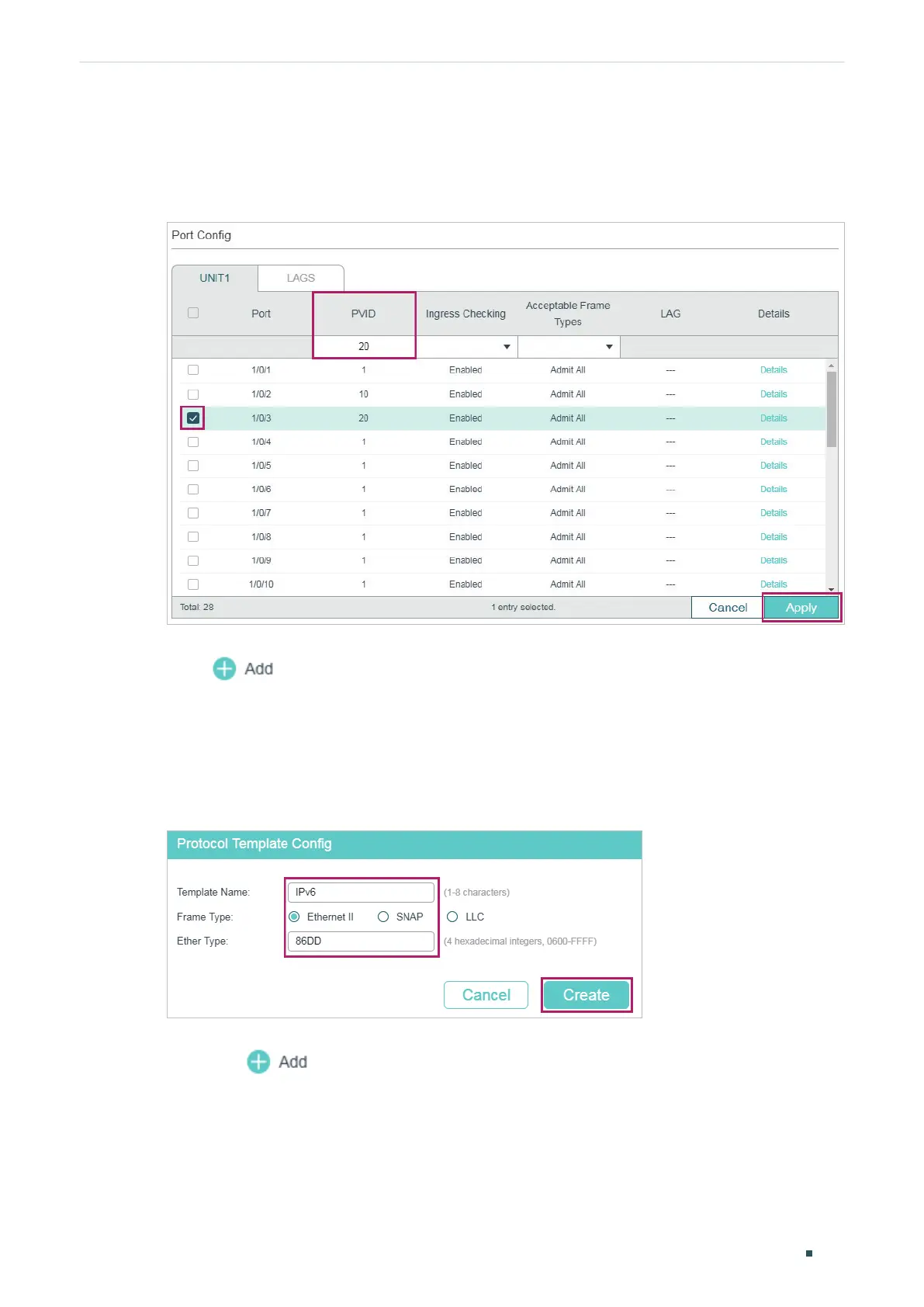

3) Choose the menu L2 FEATURES > VLAN > 802.1Q VLAN > Port Config to load the
following page. Set the PVID of port 1/0/2 and port 1/0/3 as 10 and 20 respectively .
Click Apply.
Figure 3-6 Port Configuration
4) Choose the menu L2 FEATURES > VLAN > Protocol VLAN > Protocol Template and
click
to load the following page. Enter IPv6 in the protocol name, select the
Ethernet II frame type, enter 86DD in the Ether Type field, and click Create to create
the IPv6 protocol template.
Tips: The IPv4 protocol template is already provided by the switch. You only need to
create the IPv6 protocol template.
Figure 3-7 Create the IPv6 Protocol Template
5) Choose the menu L2 FEATURES > VLAN > Protocol VLAN > Protocol VLAN Group
and click
to load the following page. Select the IP protocol name (that is the
IPv4 protocol template), enter VLAN ID 10, select port 1, and click Create. Select the
IPv6 protocol name, enter VLAN ID 20, select port 1, and click Create.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
