Configuring VLAN-VPN Configuration Examples
User Guide
237

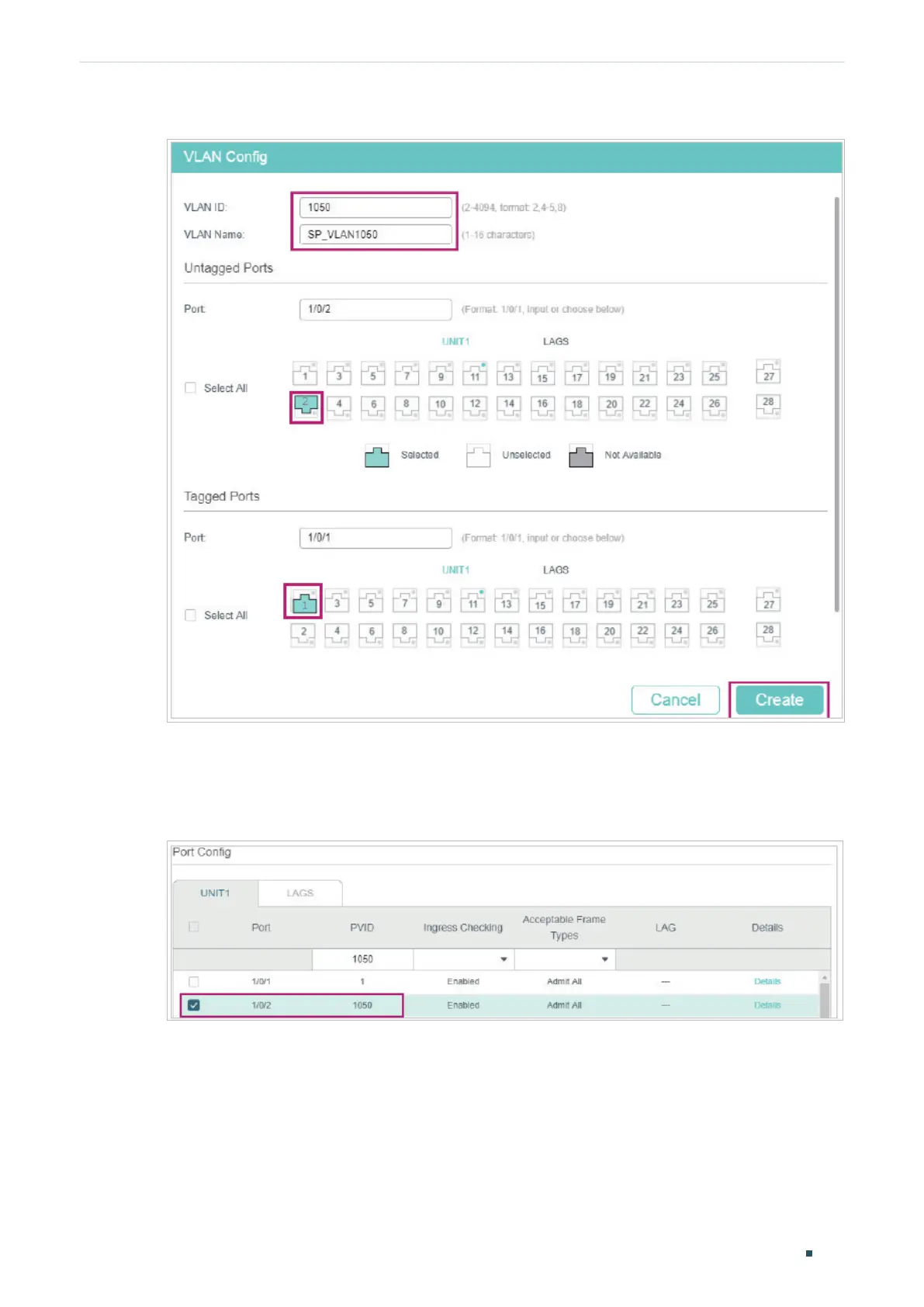

Figure 4-4 Create VLAN 1050
2) Go to L2 FEATURES > VLAN > Port Config to set the PVID as 1050 for port 1/0/2 and
leave the default vaule 1 for port 1/0/1.
Figure 4-5 Configuring PVID
3) Go to L2 FEATURES > VLAN > VLAN VPN > VPN Config, enable VLAN VPN globally;
set port 1/0/1 as NNI port and port /1/0/2 as UNI port. Specify the TPID of port 1/0/1 as
9100.
