User Guide 430
Configuring Spanning Tree Configuration Example for MSTP

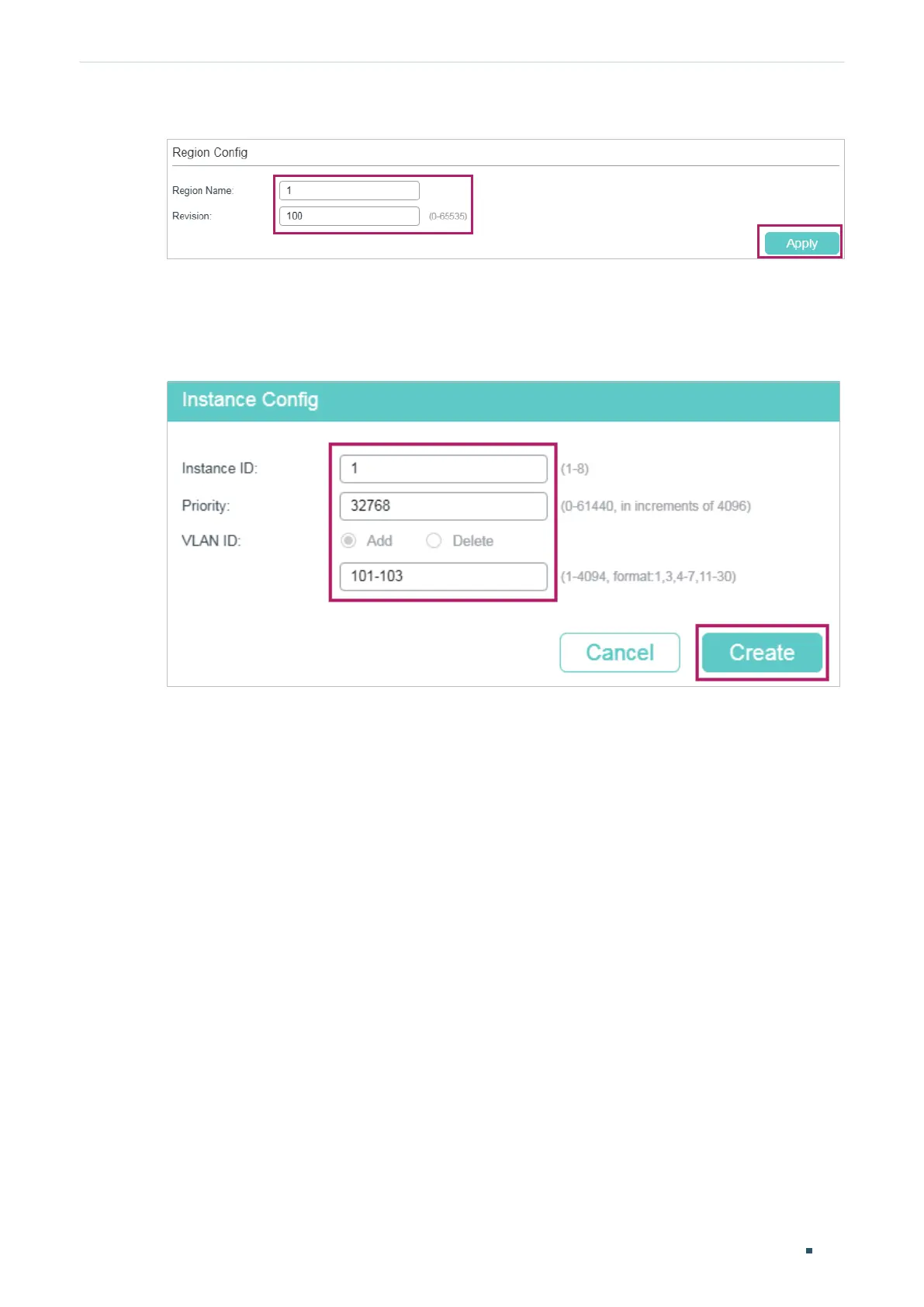

Figure 5-5 Configuring the MST Region
4) Choose the menu L2 FEATURES > Spanning Tree > MSTP Instance > Instance Config.
Click Add, map VLAN101-VLAN103 to instance 1 and set the priority as 32768; map
VLAN104-VLAN106 to instance 2 and set the priority as 32768. Click Create.
Figure 5-6 Configuring the VLAN-Instance Mapping
5) Choose the menu L2 FEATURES > Spanning Tree > MSTP Instance > Instance Port
Config to load the following page. Set the path cost of port 1/0/1 in instance 1 as
300000 so that port 1/0/1 of switch C can be selected as the designated port.
