User Guide 432
Configuring Spanning Tree Configuration Example for MSTP

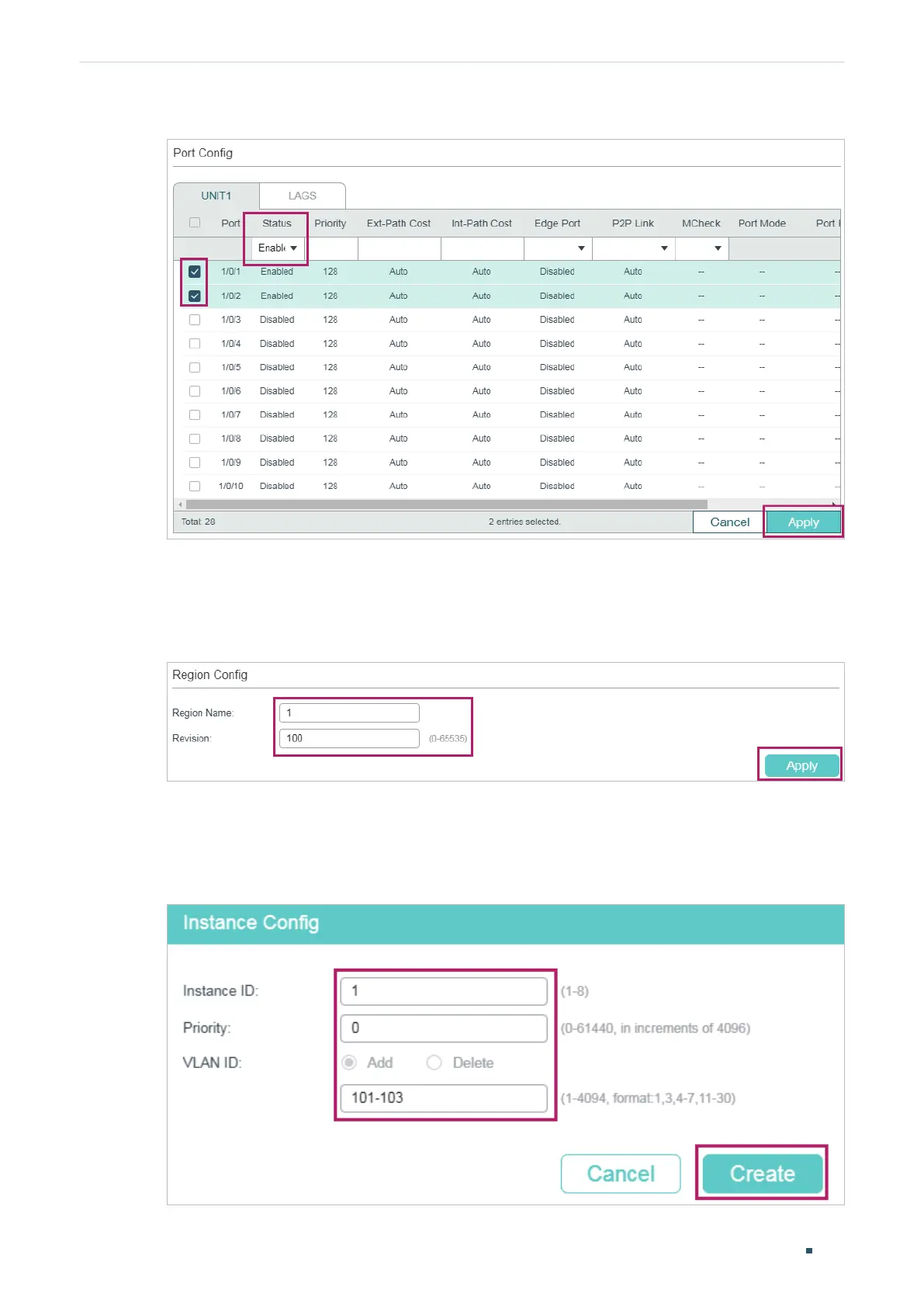

Figure 5-9 Enable Spanning Tree Function on Ports
3) Choose the menu L2 FEATURES > Spanning Tree > MSTP Instance > Region Config
to load the following page. Set the region name as 1 and the revision level as 100. Click
Apply.
Figure 5-10 Configuring the Region
4) Choose the menu L2 FEATURES > Spanning Tree > MSTP Instance > Instance
Config. Map VLAN101-VLAN103 to instance 1 and set the Priority as 0; map VLAN104-
VLAN106 to instance 2 and set the priority as 32768. Click Create.
Figure 5-11 Configuring the VLAN-Instance Mapping
