Configuring LLDP Configuration Examples

User Guide

477

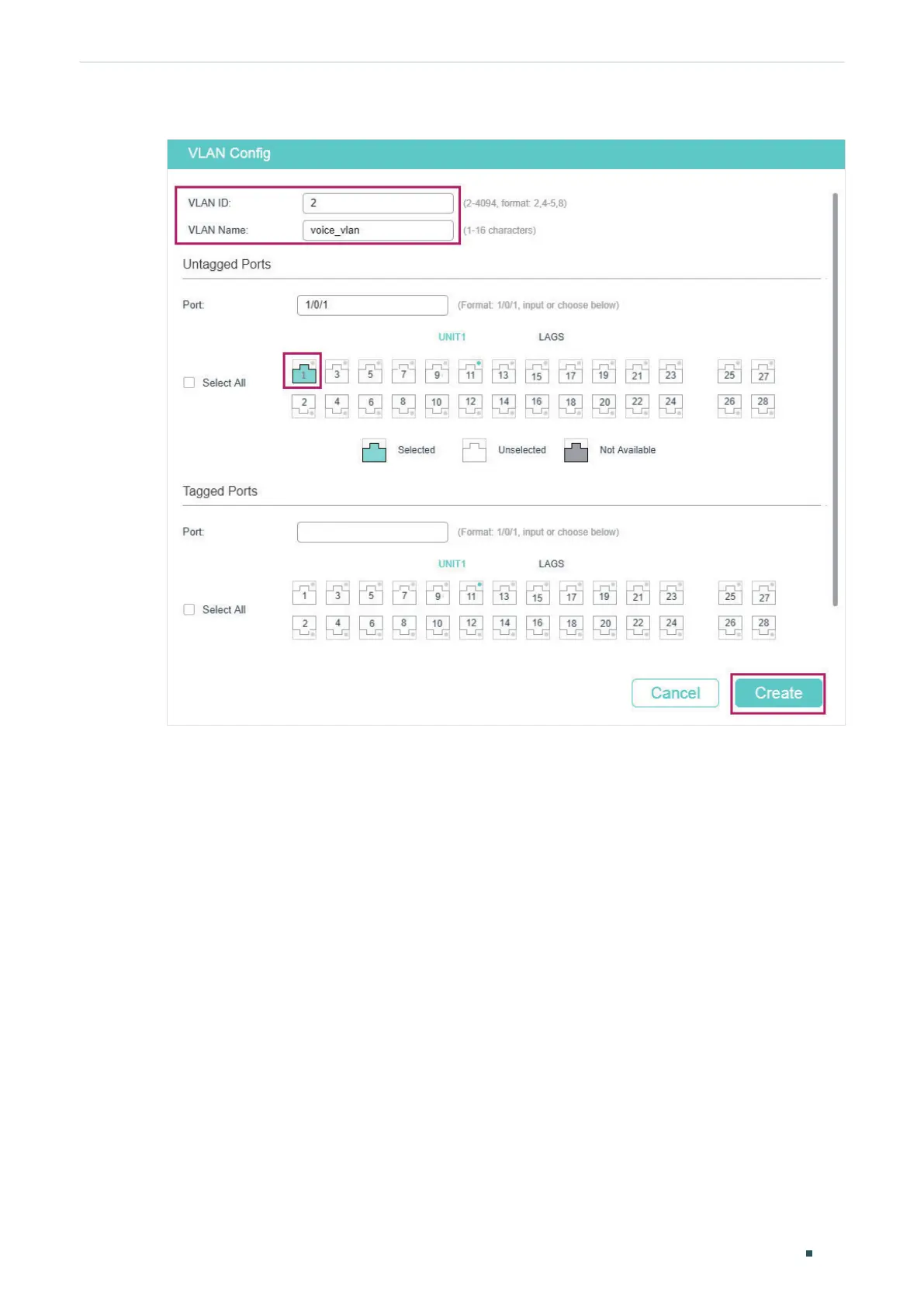

Figure 6-2 VLAN Config

2) Choose the menu QoS > Auto VoIP to load the following page. Select port 1/0/1,

configure the interface mode as VLAN ID and set the VLAN ID value as 2. Click Apply.
