User Guide 586
Configuring DHCP Service Configuration Examples
2) On the same page, click again to create VLAN 20 for the R&D department and
add port 1/0/2 as untagged port to the VLAN.

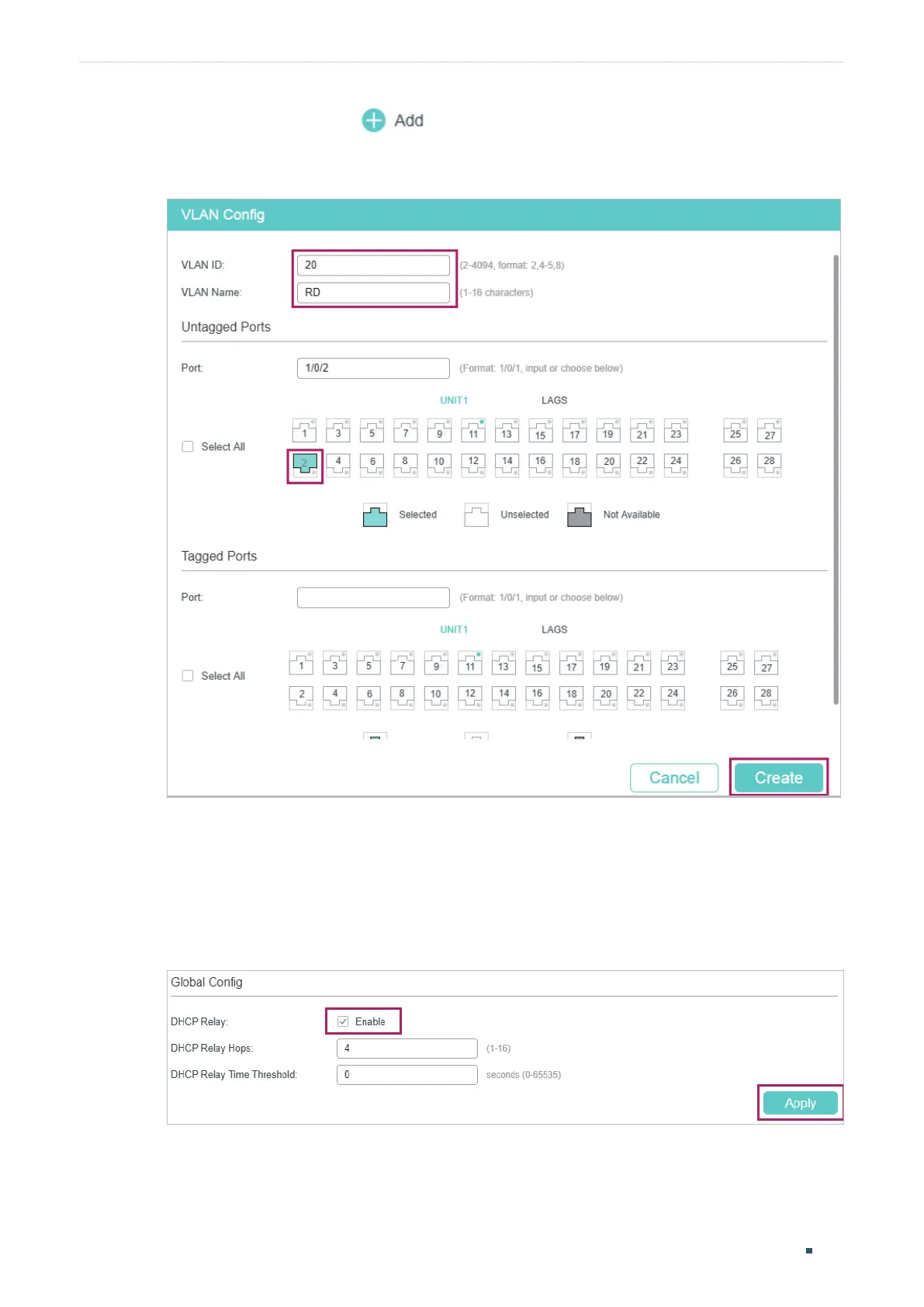

Figure 5-23 Creating VLAN 20
■ Configuring DHCP VLAN Relay on the Relay Agent
1) Choose the menu L3 FEATURES > DHCP Service > DHCP Relay > DHCP Relay Config
to load the following page. In the Global Config section, enable DHCP Relay, and click
Apply.
Figure 5-24 Enable DHCP Relay
2) Choose the menu L3 FEATURES > DHCP Service > DHCP Relay > DHCP VLAN Relay
to load the following page. In the Default Relay Agent Interface section, specify
