User Guide 632

Configuring QoS Class of Service Configuration

Choose the menu QoS > Class of Service > Scheduler Settings to load the following

page.

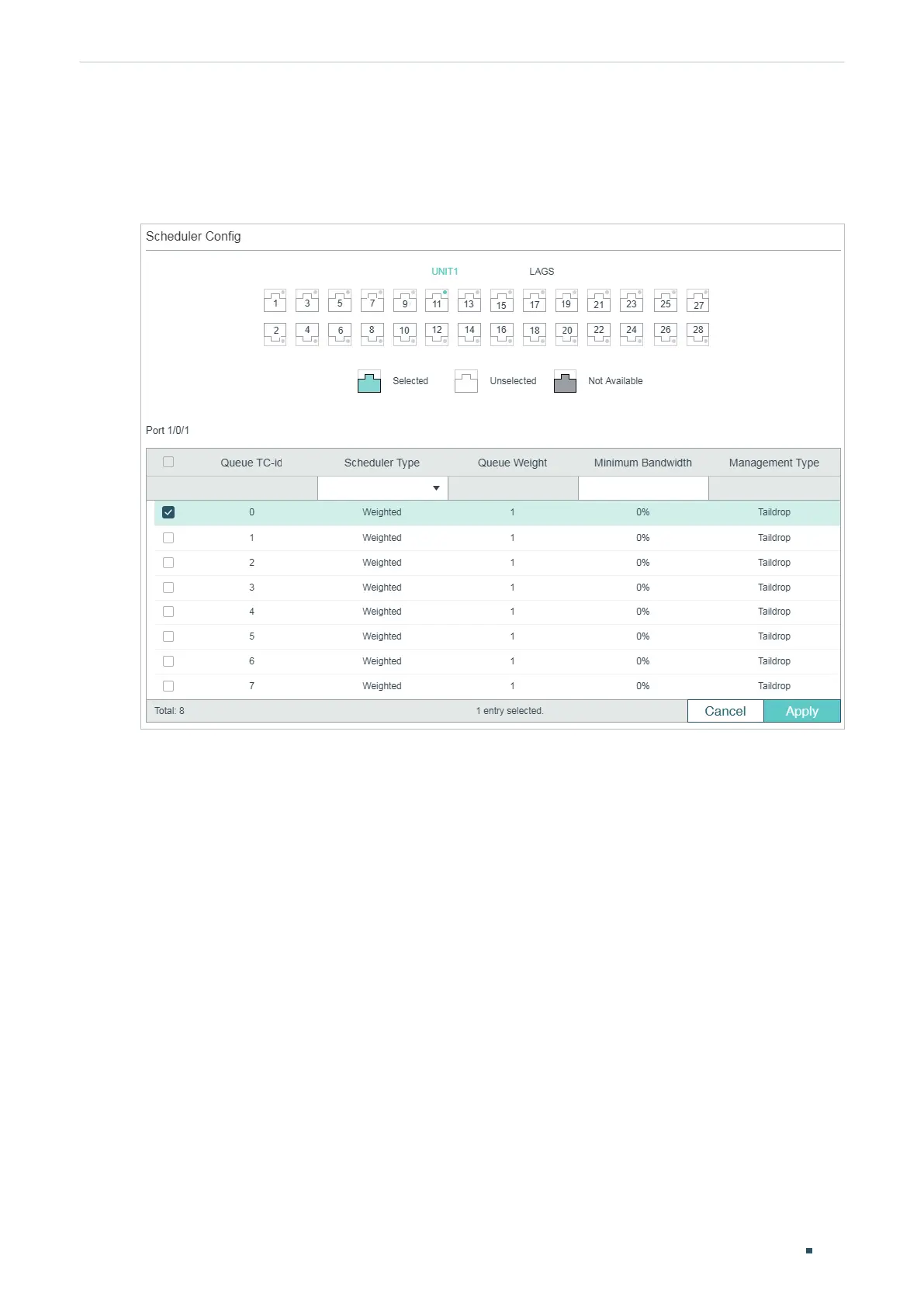

Figure 2-10 Specifying the Scheduler Settings (For T2600G-28TS/T2600G-28MPS/T2600G-28SQ/T2600G-

52TS)
