Configuring QoS Configuration Examples
User Guide
679

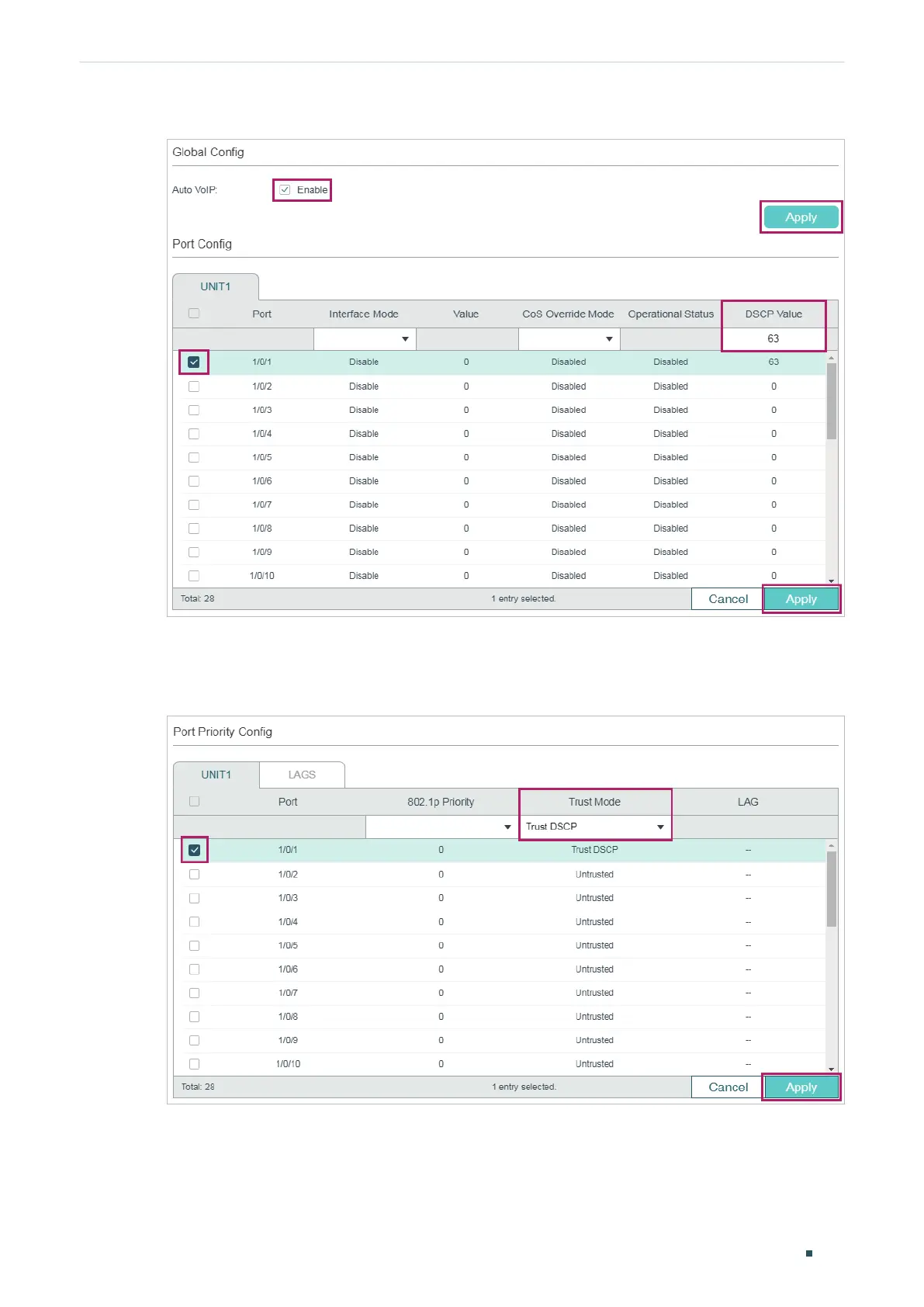

Figure 6-13 Configuring Auto VoIP
2) Choose the menu QoS > Class of Service > Port Priority to load the following page.
Set the trust mode of port 1/0/1 as trust DSCP. Click Apply.
Figure 6-14 Configuring Port Priority
3) Choose the menu QoS > Class of Service > DSCP Priority to load the following page.
Select port 1/0/1 and specify the 802.1p priority as 7 for DSCP priority 63. Click Apply.
