TP-Link T2600G Series User Manual

User Guide 742
Configuring AAA Configuration Examples

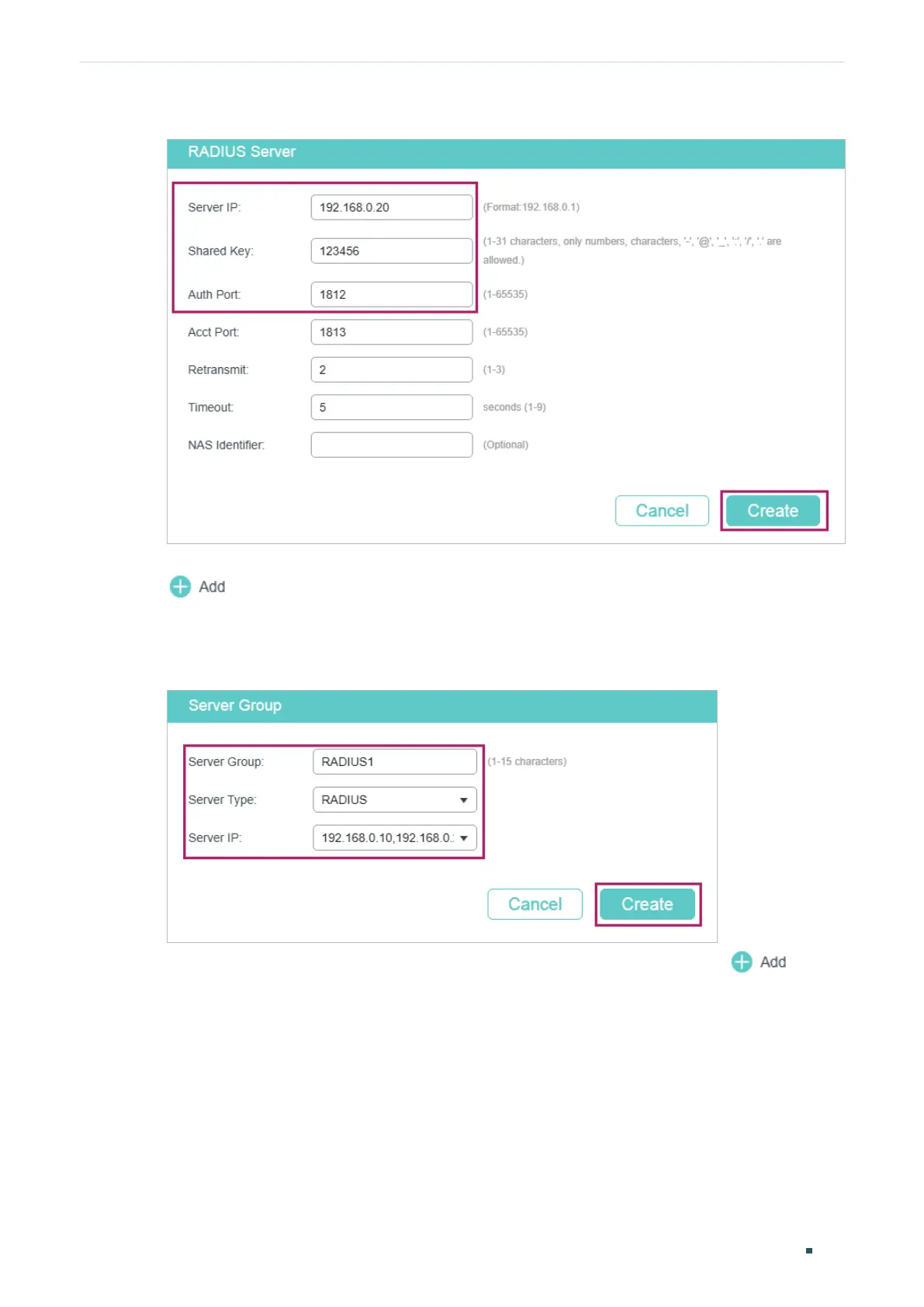

Figure 3-3 Add RADIUS Server 2
3) Choose the menu SECURITY > AAA > Server Group to load the following page. C
lick
. Specify the group name as RADIUS1 and the server type as RADIUS. Select
192.168.0.10 and 192.168.0.20 to from the drop-down list. Click Create to create the
server group.
Figure 3-4 Create Server Group
4) Choose the menu SECURITY > AAA > Method Config and click in the
Authentication Login Method Config section. Specify the Method List Name as
MethodLogin and select the Pri1 as RADIUS1. Click Create to set the method list for the
Login authentication.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
