Configuring ACL ACL Configuration

User Guide

791

In ACL Rules Table section, click and the following page will appear.

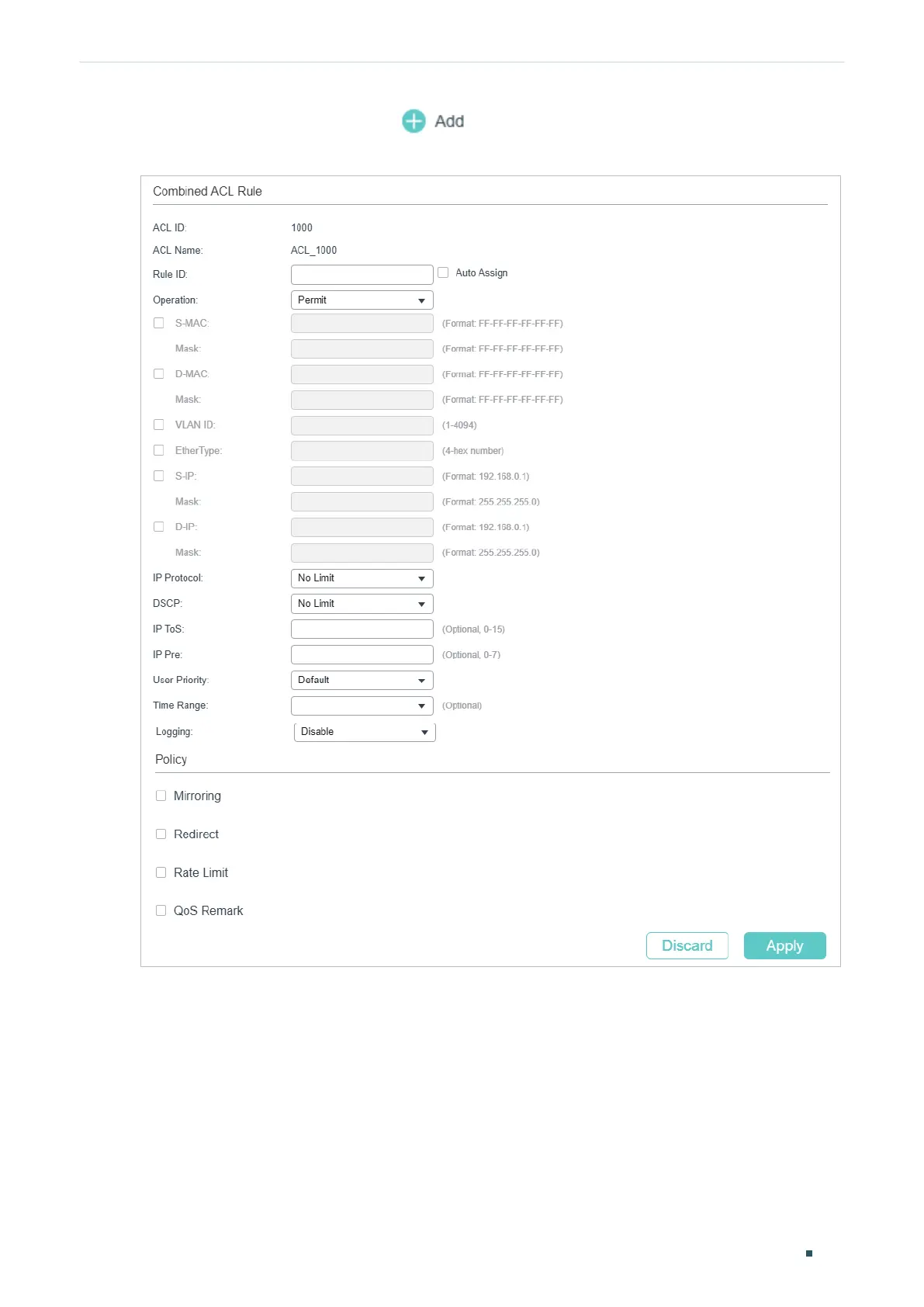

Figure 2-16 Configuring the Combined ACL Rule

Follow these steps to configure the Combined ACL rule:

1) In the Combined ACL Rule section, configure the following parameters:
