User Guide 824

Configuring ACL Configuration Example for ACL

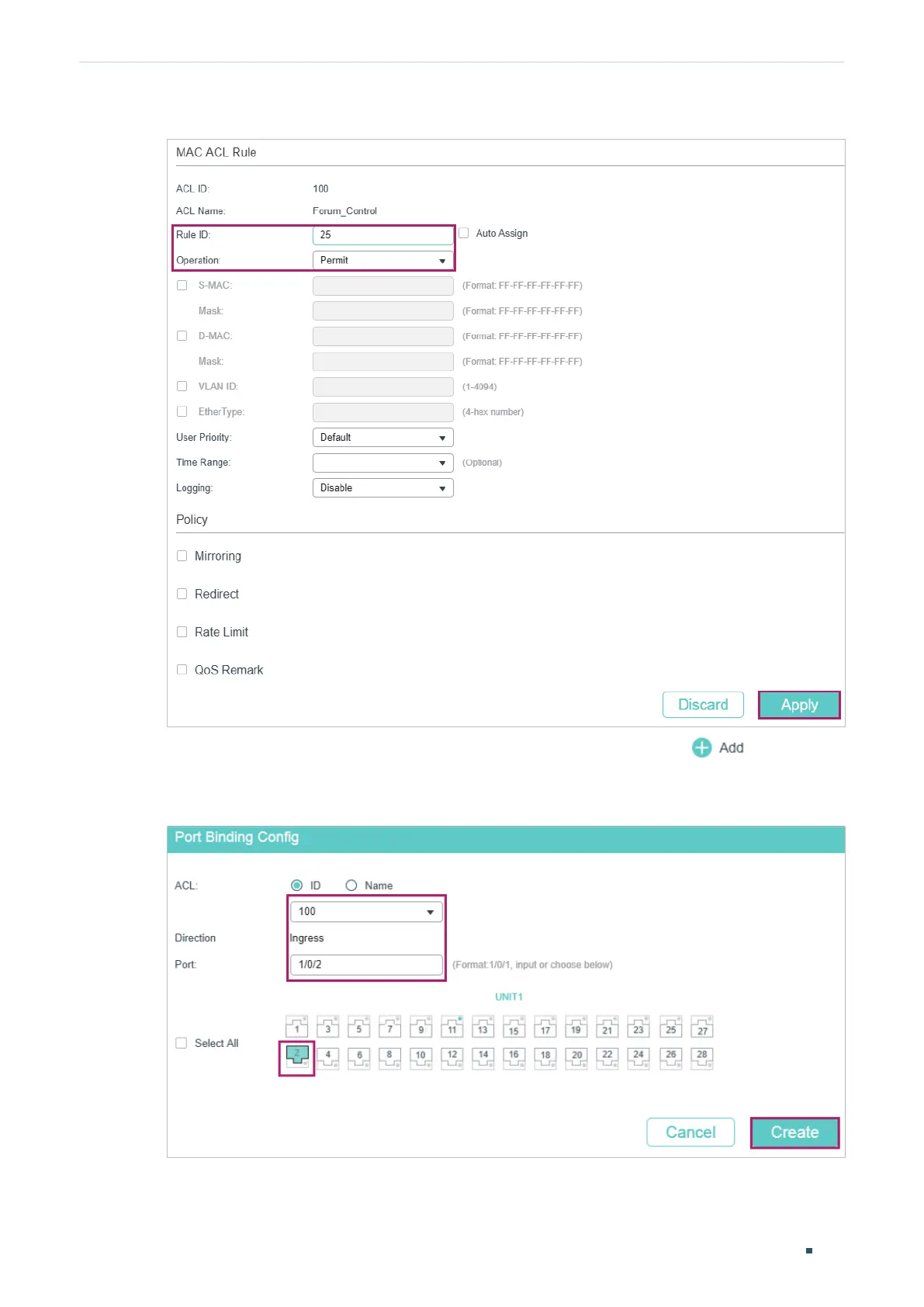

Figure 3-10 Configuring Rule 25

10) Choose the menu SECURITY > ACL > ACL Binding and click to load the

following page. Bind ACL 100 to port 1/0/2 to make it take effect.

Figure 3-11 Binding the ACL to Port 1/0/2
