YASKAWA DX100 Operator's Manual

3 Teaching
3.6 Editing Instructions
3-53
155507-1CD
RE-CSO-A037
DX100
– <When Additional Items are to be edited>
1. Changing numeric data
(1) Move the cursor to the desired item and press [SHIFT] + the cur-
sor key to increase or decrease the value.
(2) To directly input the value using Numeric keys, press [SELECT] to
display the input buffer line.
(3) Type the value and press [ENTER]. The value on the input buffer
line is changed.

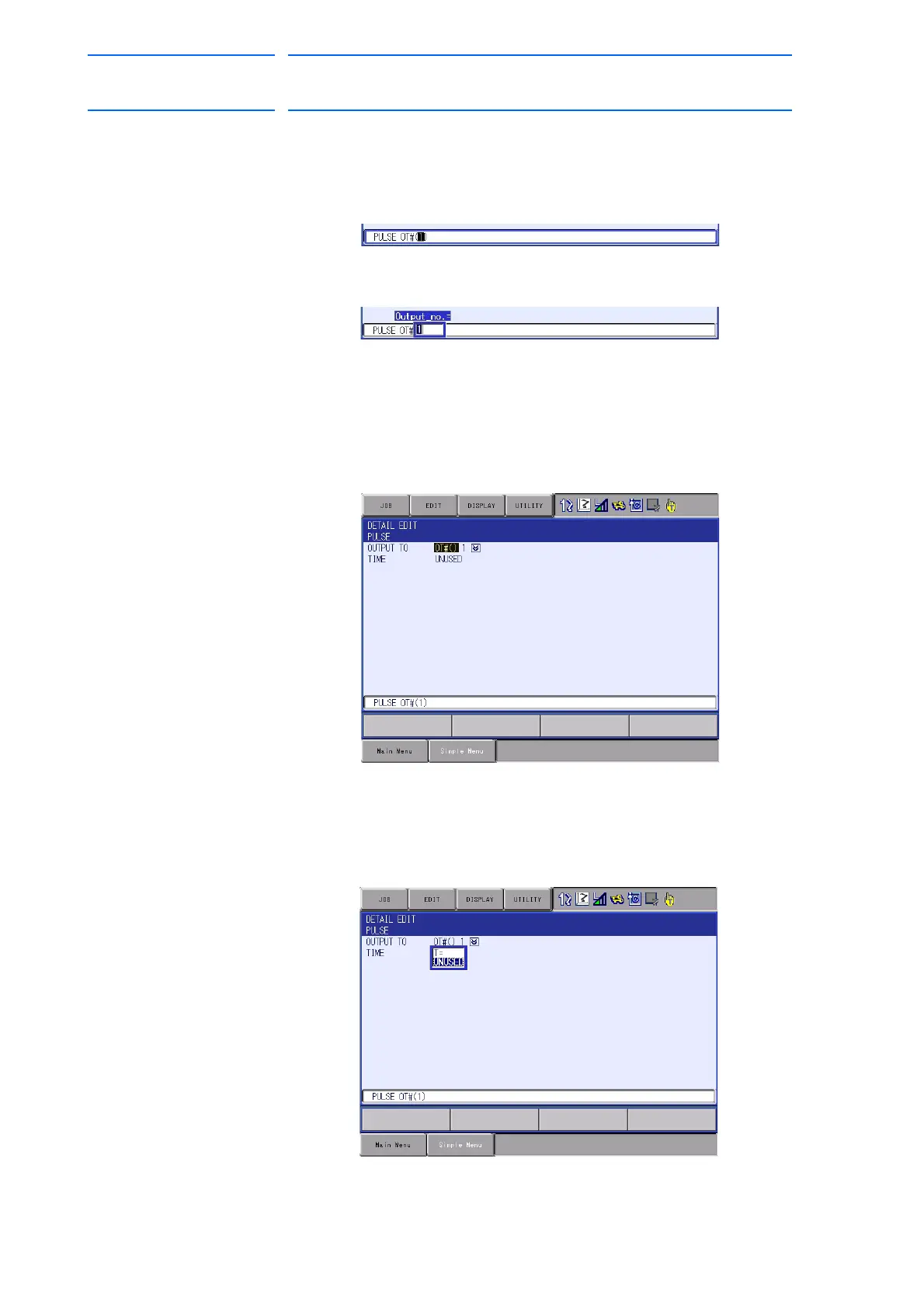

2. Adding, modifying, or deleting an additional item
(1) To add, modify, or delete an additional item, move the cursor to the
instruction on the input buffer line and press [SELECT]. The
DETAIL EDIT window appears.
– To add an item, move the cursor to “UNUSED” and press [SELECT].
The selection dialog box appears.
(2) Move the cursor to the desired item and press [SELECT]. 
To delete an item, move the cursor to the item to be deleted and
select “UNUSED”.
136 of 554

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
