YASKAWA DX100 Operator's Manual

6 Convenient Functions
6.4 Parallel Shift Job Conversion Function
6-28
155507-1CD
RE-CSO-A037
DX100
 About 1 to 4 in the Table

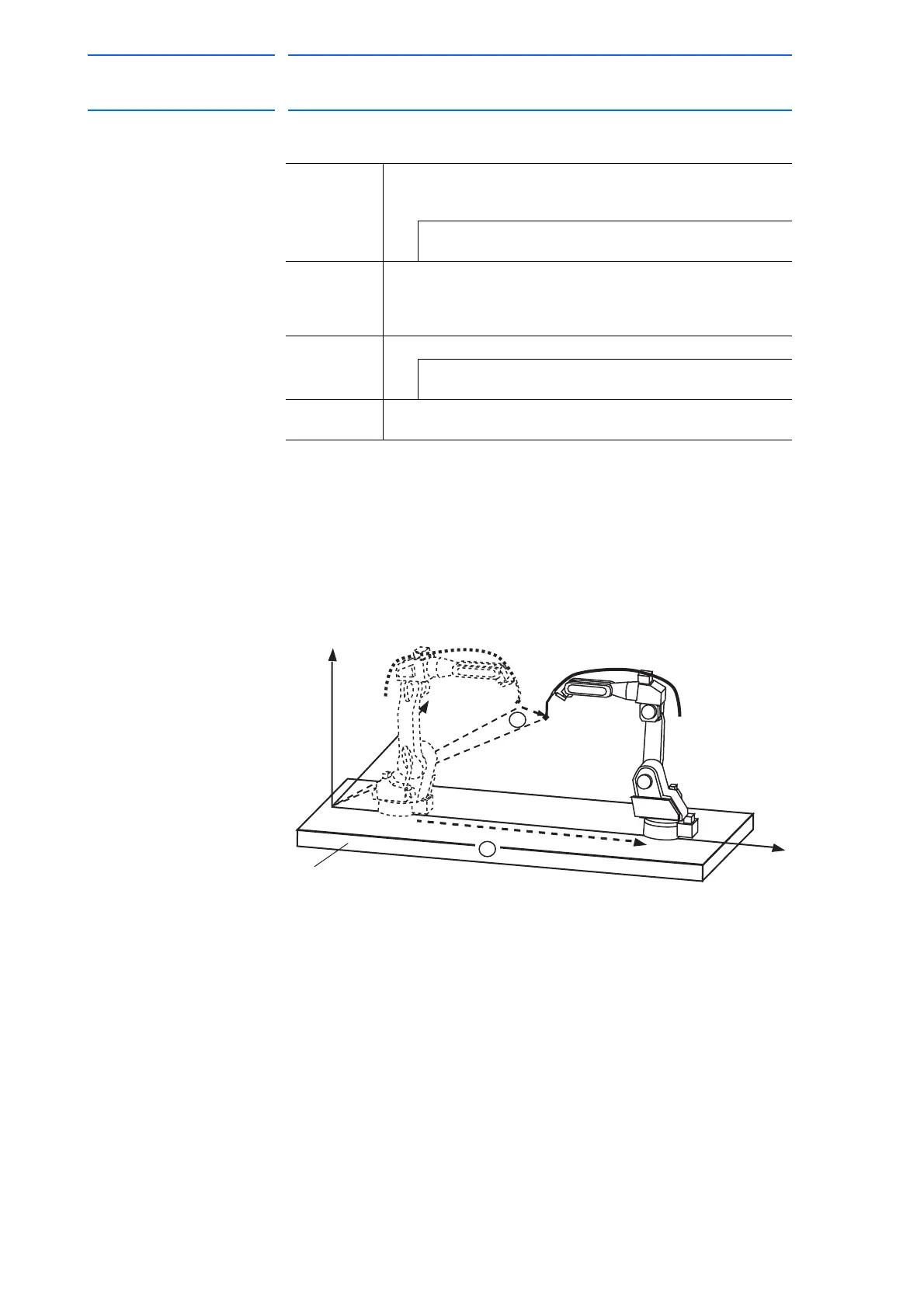

1. Base Coordinates
The base axis is shifted by B and the TCP of the manipulator is shifted
by A in the base coordinates.
R+S The manipulator is shifted in the selected coordinates. 
The station axis is shifted on the basis of pulse values regardless
of the coordinates.
Base coordinates, robot coordinates, tool coordinates, user
coordinates, pulse coordinates
R(B)+S The manipulator is shifted in the selected coordinates, as in 1 to
5 above. 
The station axis is shifted on the basis of pulse values regardless
of the coordinates.
R+R Two manipulators are shifted in the selected coordinates.
Base coordinates, robot coordinates, tool coordinates, user
coordinates, master tool coordinates
1)
, pulse coordinates
R(B)+R(B) Two manipulators are shifted in the selected coordinate system,
as in 1 to 5 above. Two base axes are also shifted.
1 In the master tool coordinates, conversion only occurs at the “slave” from the
standpoint of the SMOV instruction.
Table 6-2: Relationship Between Group Combinations and Coordinates at
Conversion
A
B
Base
Base coordinates
268 of 554

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
