YASKAWA DX100 - Page 491

9-2
155507-1CD
RE-CSO-A037
DX100
9 General Purpose Application
9.1 Simplified Teaching and Playback

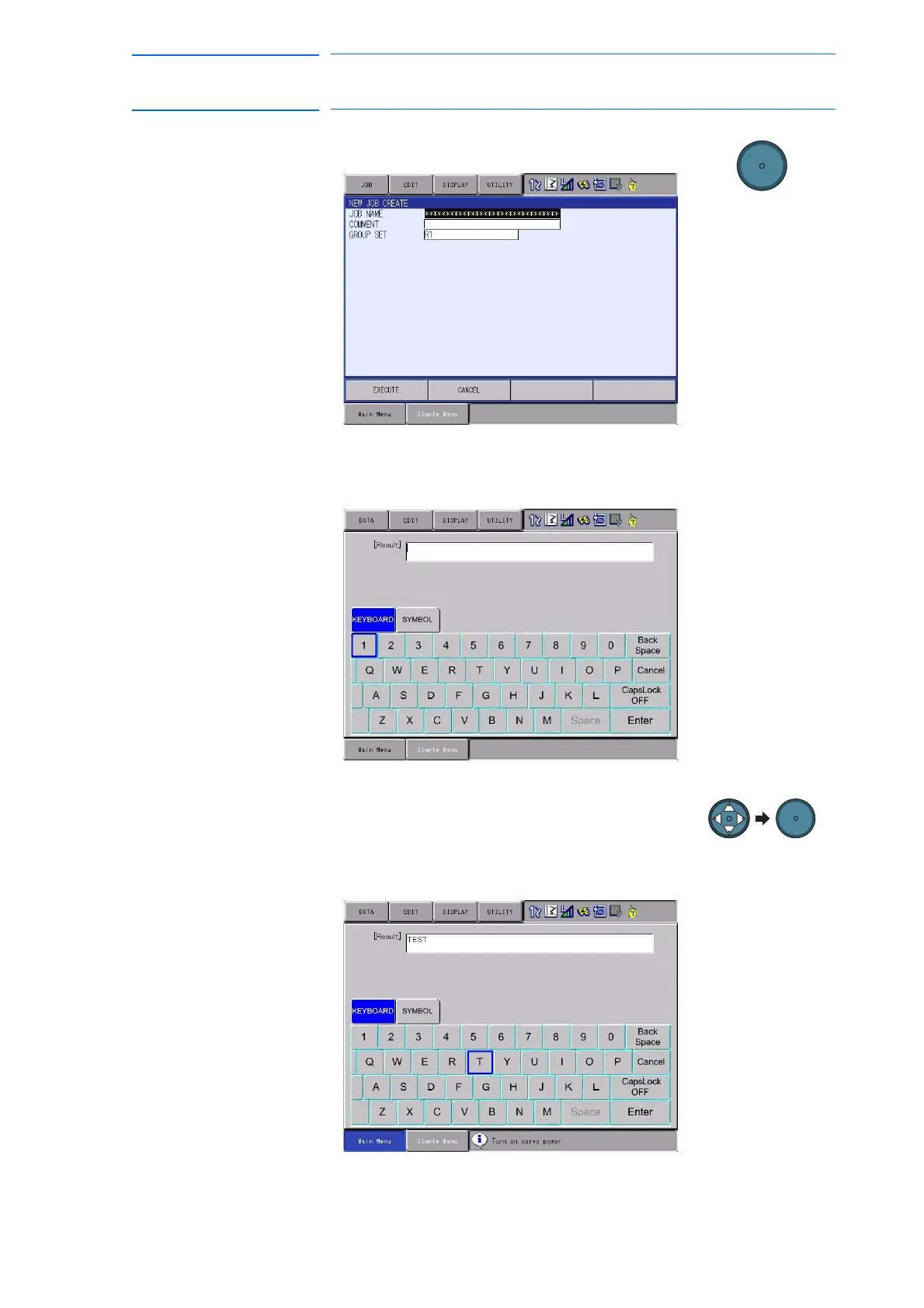

4. After the NEW JOB CREATE window appears,
press [SELECT].
5. After the following window appears, input the
job name. The word “TEST” is used in this
example job name.
6. Move the active window to software keypad by
pressing the [AREA] key. Move the cursor to “T”
and press [SELECT]. Enter “E,” “S,” and “T” in
the same manner. The characters can also be
entered by directly touching each character on
the screen.
SELECT
SELECT
491 of 554
