User Guide 1006
Configuring OAM Configuration Example

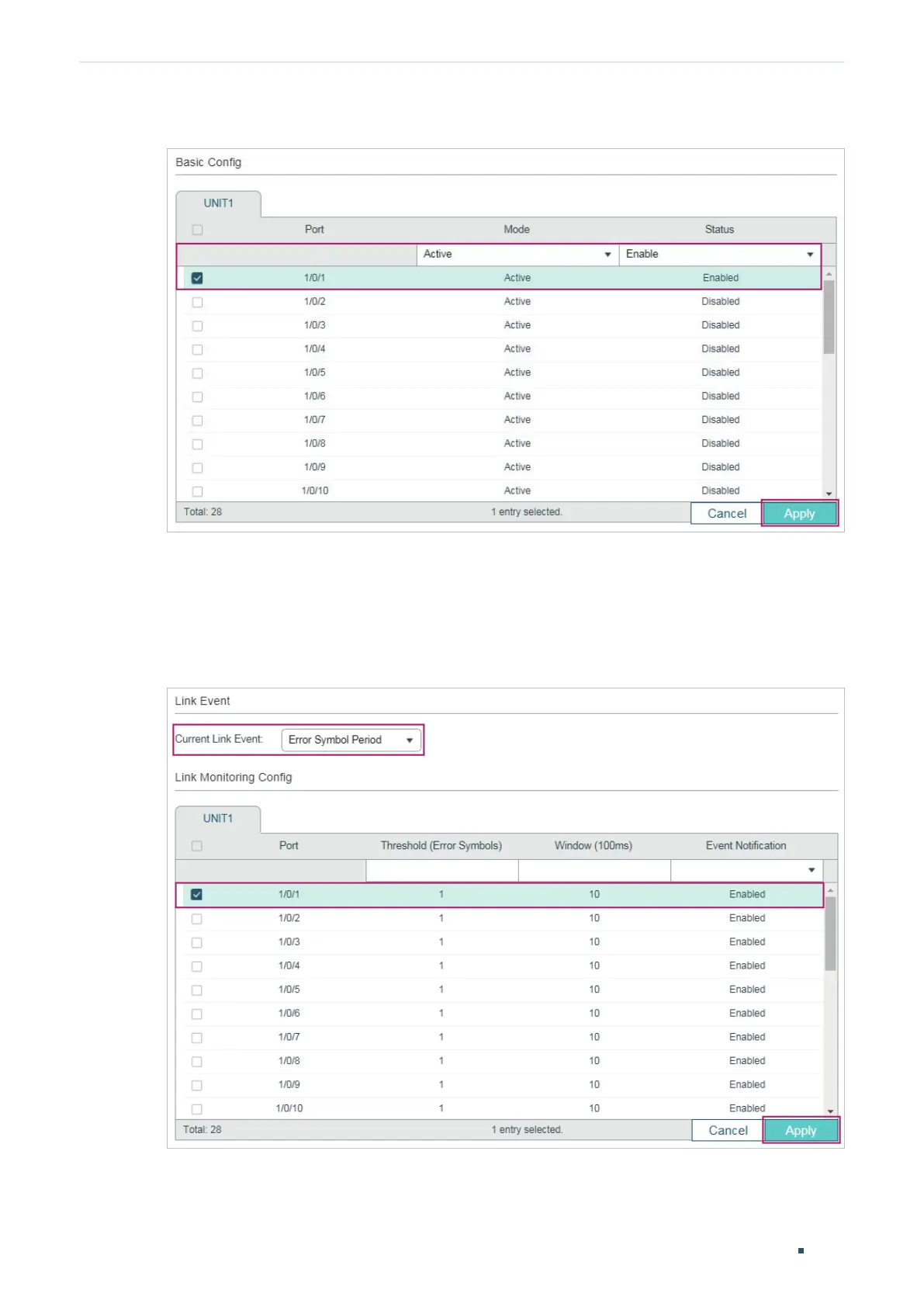

Figure 4-2 Basic Configuration
2) Choose the menu MAINTENANCE > Ethernet OAM > Link Monitoring to load the
following page. Select each Link Event type and configure the relevant parameters on
port 1/0/1. Make sure that Event Notification is enabled and specify the threshold and
window according to your needs. Here we keep the default parameters. Click Apply.
Figure 4-3 Link Monitoring Configuration
